APC Rack Air Removal Unit SX Ducting Kit 24 inch - ACF126

    Product form
    • Schneider Electric SA

    APC Rack Air Removal Unit SX Ducting Kit 24 inch - ACF126

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: ACF126 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC by Schneider Electric... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $230.41

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: J72079
        Barcode: 0731304240990

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: ACF126
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC by Schneider Electric
      • Product Model: ACF126
      • Product Name: Rack Air Removal Unit SX Ducting Kit
      • Marketing Information:

        The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.


      • Product Type: Hardware Kit

        • Physical Characteristics

      • Dimensions: 69.9 cm
      • Weight (Approximate): 24.05 lb

        • Miscellaneous

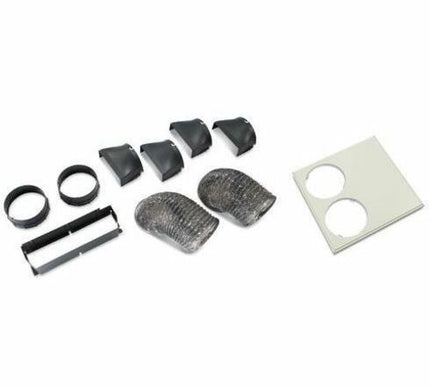

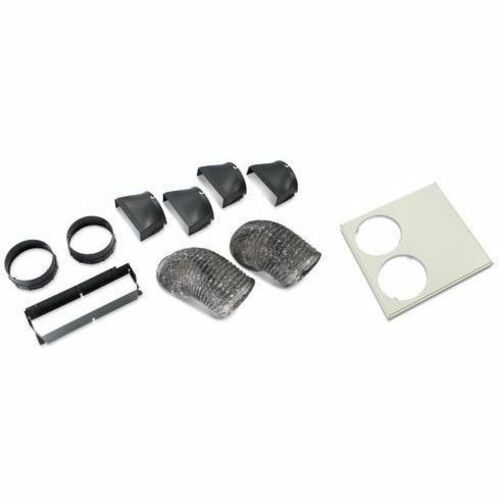

      • Package Contents:
        • 1 x Support for the air manifold
        • 4 x Plastic air manifold
        • 2 x Hose
        • 1 x 24" Ceiling adapter
        • 2 x Holder flange
        • 13 x M4 Phillips machine screw
        • 6 x Flange nut
        • Installation guide

      • Compatibility:

        Rack Air Removal Unit


        • Warranty

      • Limited Warranty: 1 Year
      • Additional Warranty Information: 1 year (parts only)
        •
