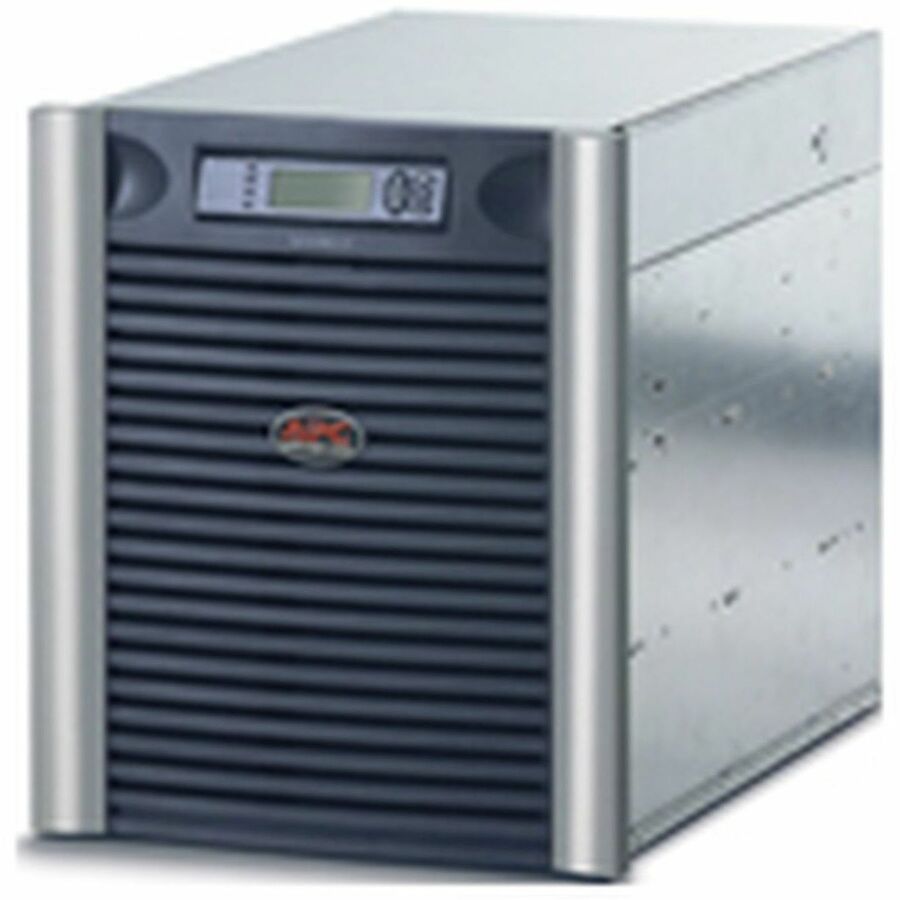

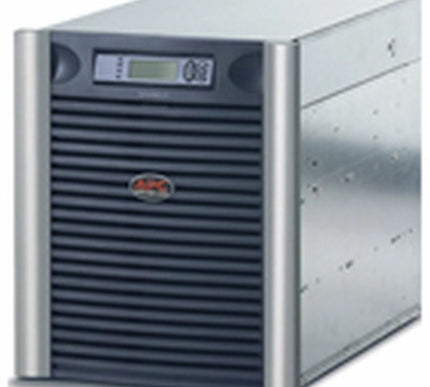

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V - SYA8K8RMI

    Product form
    • Schneider Electric SA

    APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V - SYA8K8RMI

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SYA8K8RMI Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Symmetra... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $15,625.77

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: VR9245

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SYA8K8RMI
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Symmetra
      • Product Series: LX
      • Product Name: Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
      • Marketing Information:

        High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.


      • Product Type: Online UPS

        • Technical Information

      • Plug/Connector Type: Hard Wire 3-wire
      • Receptacle Type:
        • Hard Wire 3-wire (H N + E)
        • IEC 60320 C13
        • IEC 60320 C19

      • Receptacle Detail:
        • 1 x Hard Wire 3-wire (H N + E)
        • 8 x IEC 60320 C13
        • 6 x IEC 60320 C19

      • Number of Battery & Surge Outlets: 15
      • Overload Protection: Yes
      • Phase: Single Phase/Three Phase

        • Power Description

      • Load Capacity (VA): 8000 VA
      • Input Voltage:
        • 220 V AC
        • 400 V AC
        • 230 V AC
        • 240 V AC
        • 380 V AC
        • 415 V AC

      • Output Voltage:
        • 220 V AC
        • 230 V AC
        • 240 V AC

      • Input Frequency: 65 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Sine Wave

        • Management

      • Network Management: SNMP Manageable

        • Battery Information

      • Battery Characteristics: Spill-proof/Maintenance-free
      • Battery Chemistry: Lead Acid
      • Backup/Run Time (Full Load): 7.50 Minute
      • Backup/Run Time (Half Load): 20.20 Minute
      • Typical Battery Recharge Time: 3 Hour

        • Environmental Conditions

      • Maximum Operating Temperature: 104°F (40°C)
      • Thermal Dissipation: 809.46 W

        • Physical Characteristics

      • Product Color:
        • Black
        • Silver

      • Form Factor: Rack-mountable
      • Rack Height: 13U
      • Height: 22.5"
      • Width: 18.6"
      • Depth: 27.1"
      • Weight (Approximate): 392.82 lb

        • Miscellaneous

      • Package Contents:
      • Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
      • CD with software
      • Documentation CD
      • Installation guide
      • User manual
      • Web/SNMP management card

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
