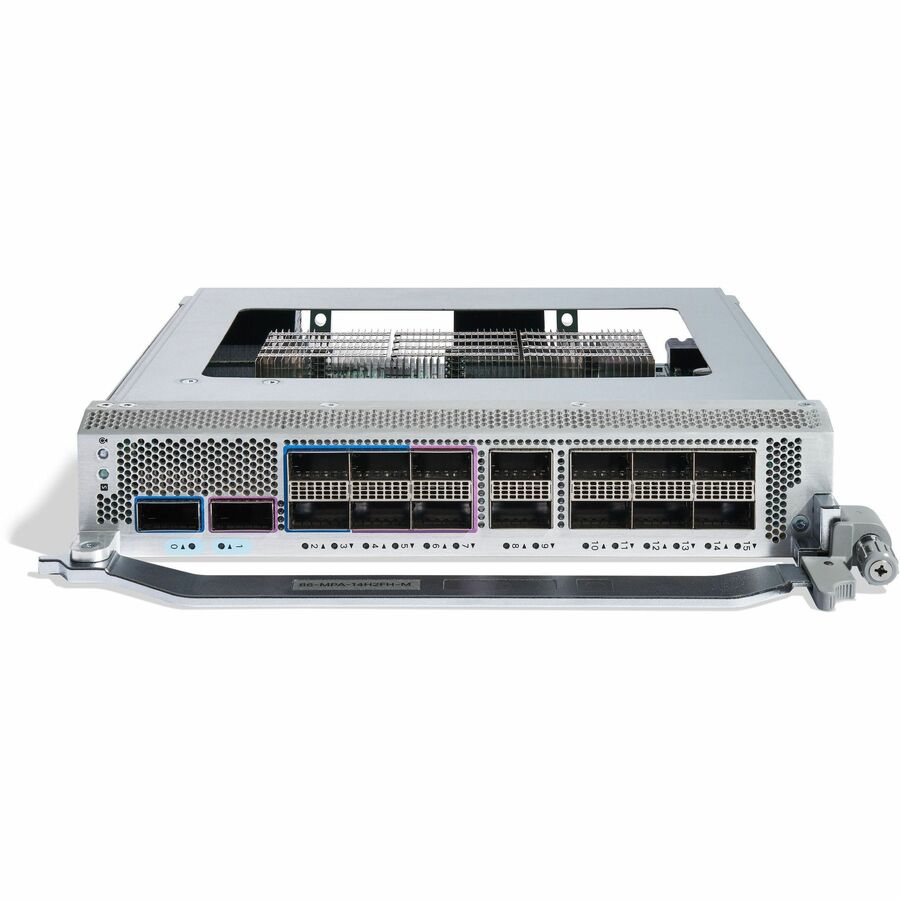

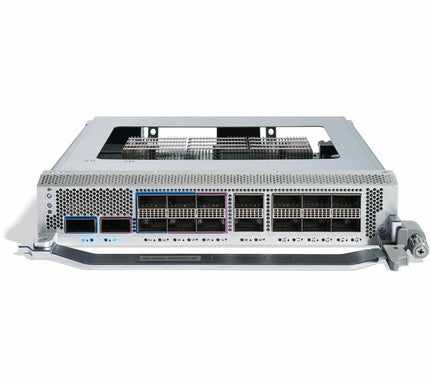

Cisco Modular Port Adapter - 86-MPA-14H2FH-M-RF

    Product form
    • Cisco Systems, Inc

    Cisco Modular Port Adapter - 86-MPA-14H2FH-M-RF

      General Information Manufacturer: Cisco Systems, Inc Manufacturer Part Number: 86-MPA-14H2FH-M-RF Manufacturer Website Address: http://www.cisco.com Brand Name: Cisco Product Name: Modular... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $16,636.27

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SQ0392

        Size chart

        General Information

      • Manufacturer: Cisco Systems, Inc
      • Manufacturer Part Number: 86-MPA-14H2FH-M-RF
      • Manufacturer Website Address: http://www.cisco.com
      • Brand Name: Cisco
      • Product Name: Modular Port Adapter
      • Marketing Information:

        This combo MPA provides 1.6 Tbps of maximum throughput with MACsec support on all ports. The MPA can be operated either in 16x100 GbE or 12x100 GbE+1x400 GbE or 8x100 GbE+2x400 GbE modes. Additional other combinations are also possible by using breakout. QSFP28 optics are supported on the 100 GbE. This MPA is ready for Cisco Routed Optical Networking with wide DCO support including ZR / ZR+ / Bright ZR+ and all other DCO variants in the future on all 400 GbE ports. Usage of a 400 GbE port will result in some of the 100 GbE ports being shut down.


      • Product Condition: Remanufactured
      • Product Type: Modular Port Adapter

        • Technical Information

      • Application/Usage:
        • Data Networking
        • Optical Network

      • Features: Digital Coherent Optics (DCO)

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Ethernet Technology:
        • 100 Gigabit Ethernet
        • 400 Gigabit Ethernet

      • Network Technology:
        • 100GBase-X
        • 400GBase-X

      • Maximum Data Transfer Rate: 400 Gbit/s

        • I/O Expansions

      • Total Number of Expansion Slots: 16
      • Expansion Slot Type:
        • QSFP28
        • QSFP56-DD

      • Expansion Slot Details:
        • 14 x QSFP28 Slots
        • 2 x QSFP56-DD Slots

        • Physical Characteristics

      • Height: 1.7"
      • Width: 9.3"
      • Depth: 9.9"
      • Weight (Approximate): 5.10 lb

        • Miscellaneous

      • Compatibility:

        Cisco 8000 Series Routers


        • Warranty

      • Limited Warranty: 1 Year
        •
