Name: Dell EMC S4128F-ON Ethernet Switch - 43VK9
Brand: Dell Technologies
SKU: 561G43
Price: 3540.06 USD

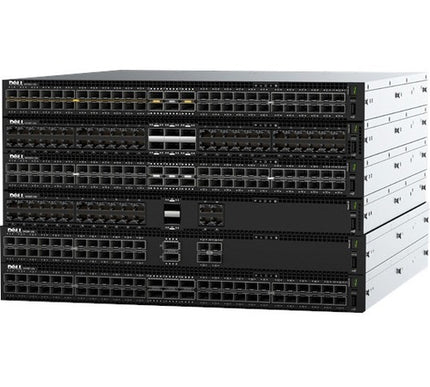

Dell EMC S4128F-ON Ethernet Switch - 43VK9

Product form

Dell Technologies

Dell EMC S4128F-ON Ethernet Switch - 43VK9

General Information Manufacturer: Dell Technologies Manufacturer Part Number: 43VK9 Manufacturer Website Address: http://www.delltechnologies.com Brand Name: Dell EMC Product Series: S4100-ON... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$3,540.06

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 561G43

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Dell Technologies

Manufacturer Part Number: 43VK9

Manufacturer Website Address: http://www.delltechnologies.com

Brand Name: Dell EMC

Product Series: S4100-ON

Product Model: S4128F-ON

Product Name: S4128F-ON Ethernet Switch

Marketing Information:

DELL EMC NETWORKING S4100-ON

High-performance open networking top-of-rack switches with multirate Gigabit Ethernet and unified ports

The S4100-ON 10GbE switches comprise Dell EMC's latest disaggregated hardware and software data center networking solutions, providing state-of-the-art 100GbE uplinks, fibre channel connectivity and a broad range of functionality to meet the growing demands of today's data center environment. These innovative, next-generation top-of-rack open networking switches offer optimum flexibility and cost-effectiveness for the enterprise, mid-market and Tier2 cloud service provider with demanding compute and storage traffic environments.

The compact S4100-ON models provide industry-leading density with up to 48 ports of 10GbE or up to 48 ports of 10GBaseT ports, 2 ports of 40GbE and 4 ports of 100GbE in a 1RU form factor. The S4148U-ON model can support up to 28 8/16G fibre channel ports, or 16 ports of 32G fibre channel ports. The S4112-ON is a halfrack width model that supports up to 12 ports of 10GbE or 12 ports 10GBaseT, and 3 ports of 100GbE.

Using industry-leading hardware and a choice of Dell EMC's OS10 or select 3rd party network operating systems and tools, the S4100-ON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S4100-ON models provide multirate speed, enabling denser footprints and simplifying migration to 100Gbps.

Also unique to the S4100-ON series is the ability to meet the demands of converged and virtualized data centers by offering unified ports (S4148U) and hardware support for L2 and L3 VXLAN Gateway. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S4100-ON ideally suited for DCB environments.

Dell Networking S4100-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC's OS10 networking operating system, as well as of alternative network operating systems.

Maximum performance and functionality

The S4100-ON series are high-performance, multi-function, 1/10/25/40/50/100 GbE and 8/16/32G FC Top-of-Rack (ToR) switches purpose-built for applications in high-performance data center, cloud and computing environments.

Architectural features to optimize data center network flexibility, efficiency and availability include IO panel to PSU airflow or PSU to IO panel airflow for hot/cold aisle environments and redundant, hot-swappable power supplies and fans.

Product Type: Ethernet Switch

Interfaces/Ports

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details:

28 x 10 Gigabit Ethernet Expansion Slot
2 x 100 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported: Optical Fiber

Ethernet Technology:

10 Gigabit Ethernet
100 Gigabit Ethernet

Network Technology:

10GBase-X
100GBase-X

I/O Expansions

Total Number of Expansion Slots: 30.0

Expansion Slot Type:

SFP+
QSFP28

Number of SFP+ Slots: 28

Network & Communication

Layer Supported: 3

Networking Standards:

IEEE 802.1Qbb
IEEE 802.1Qaz
IEEE 802.1ab
IEEE 802.1s
IEEE 802.1w
IEEE 802.3ad
IEEE 802.3ae
IEEE 802.3ba
IEEE 802.3u
IEEE 802.3z
IEEE 802.1D
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1x
IEEE 802.3ac
IEEE 802.3bj

Management & Protocols

Manageable: Yes

Power Description

Input Voltage:

120 V AC
230 V AC

Power Source: Power Supply

Redundant Power Supply Supported: Yes

Number of Power Supplies Supported: 2

Power Consumption: 260 W

Physical Characteristics

Compatible Rack Unit: 1U

Form Factor:

Rack-mountable
Compact

Height: 1.8"

Width: 17"

Depth: 18"

Weight (Approximate): 19.66 lb

Miscellaneous

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: Taiwan

Warranty

Limited Warranty: 1 Year

Additional Warranty Information: 1 Year ProSupport with Next Business Day Onsite Service-Disti SNS
