Dell Pro SD25TB5 Docking Station - DELL-SD25TB5

    Product form
    • Dell Technologies

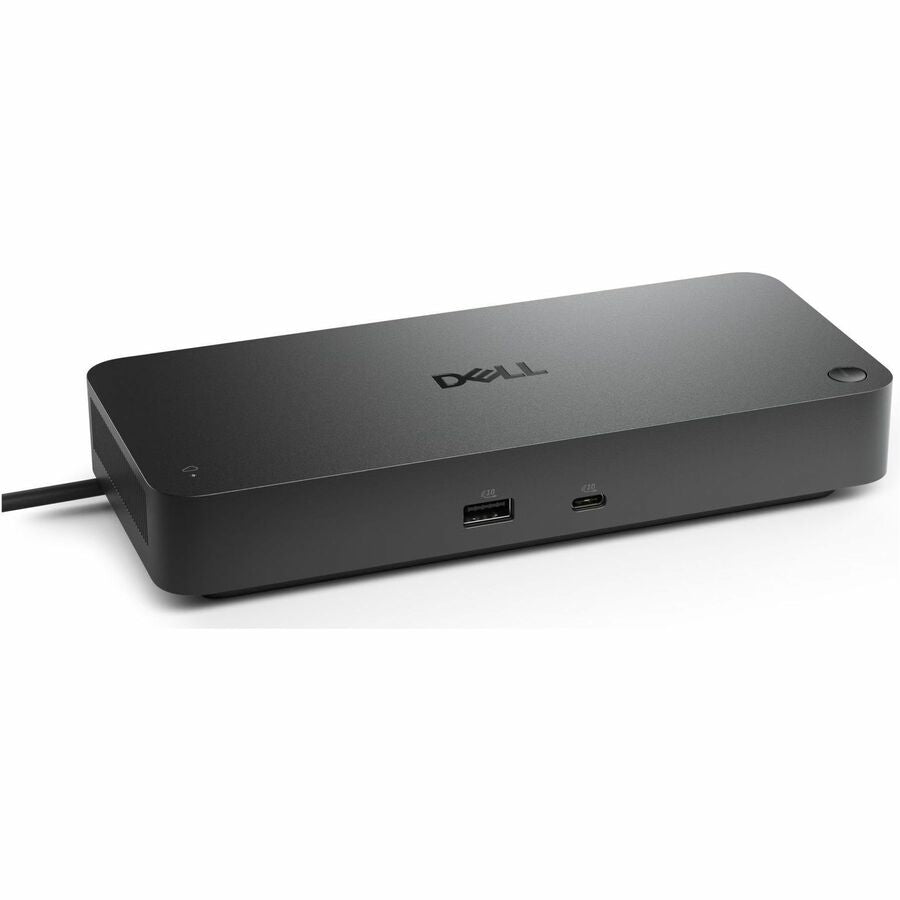

    Dell Pro SD25TB5 Docking Station - DELL-SD25TB5

      General Information Manufacturer: Dell Technologies Manufacturer Part Number: DELL-SD25TB5 Manufacturer Website Address: http://www.delltechnologies.com Brand Name: Dell Product Series: Pro Product... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $599.96

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: Z30393
        Barcode: 0884116493761

        Size chart

        General Information

      • Manufacturer: Dell Technologies
      • Manufacturer Part Number: DELL-SD25TB5
      • Manufacturer Website Address: http://www.delltechnologies.com
      • Brand Name: Dell
      • Product Series: Pro
      • Product Model: SD25TB5
      • Product Name: Pro SD25TB5 Docking Station
      • Product Type: Docking Station

        • Technical Information

      • Connectivity Technology: Wired
      • Supported Resolutions:
        • 7680 x 4320
        • 6144 x 3456
        • 5120 x 2160
        • 3840 x 2160
        • 3440 x 1440
        • 2560 x 1440

      • Screen Mode Supported:
        • 4K @ 120Hz
        • 8K @ 60Hz
        • 6K @ 60Hz
        • 5K @ 60Hz
        • WQHD @ 60Hz
        • QHD @ 60Hz

      • Management Features:
        • Dell Command Update (DCU)
        • Intel AMT over Thunderbolt with select Intel vPro PCs
        • Kernel Direct Memory Access (DMA) Protection
        • Wake-on-LAN
        • Dock Power Button Sync
        • PXE Boot
        • MAC Address Pass-through
        • Port Disablement
        • WLAN to LAN Switch

      • Device Supported: Notebook

        • Network & Communication

      • Ethernet Technology: 2.5 Gigabit Ethernet

        • Interfaces/Ports

      • Host Interface: Thunderbolt 5
      • Total Number of USB Ports: 6
      • Number of USB 3.2 Gen 2 Type-A Ports: 4
      • Number of USB Type-C Ports: 2
      • USB Type-C: Yes
      • USB Type-C Detail: 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)
      • Number of USB Type-A Ports: 4
      • USB Type-A: Yes
      • Network (RJ-45): Yes
      • Number of DisplayPorts: 2
      • DisplayPort: Yes
      • DisplayPort Version: 2.1
      • Number of HDMI Ports: 1
      • HDMI: Yes
      • Thunderbolt: Yes
      • Thunderbolt Ports Quantity: 2

        • Software

      • Operating System Supported:
        • ChromeOS 141
        • Red Hat Enterprise Linux 9.7
        • macOS
        • Ubuntu 24.04
        • Windows 11
        • Windows 10

        • Power Description

      • Maximum Power Supply Wattage: 330 W

        • Physical Characteristics

      • Height: 8.07"
      • Width: 3.54"
      • Depth: 1.39"
      • Weight (Approximate): 1.39 lb

        • Miscellaneous

      • Kensington Security Slot: Yes
        •
