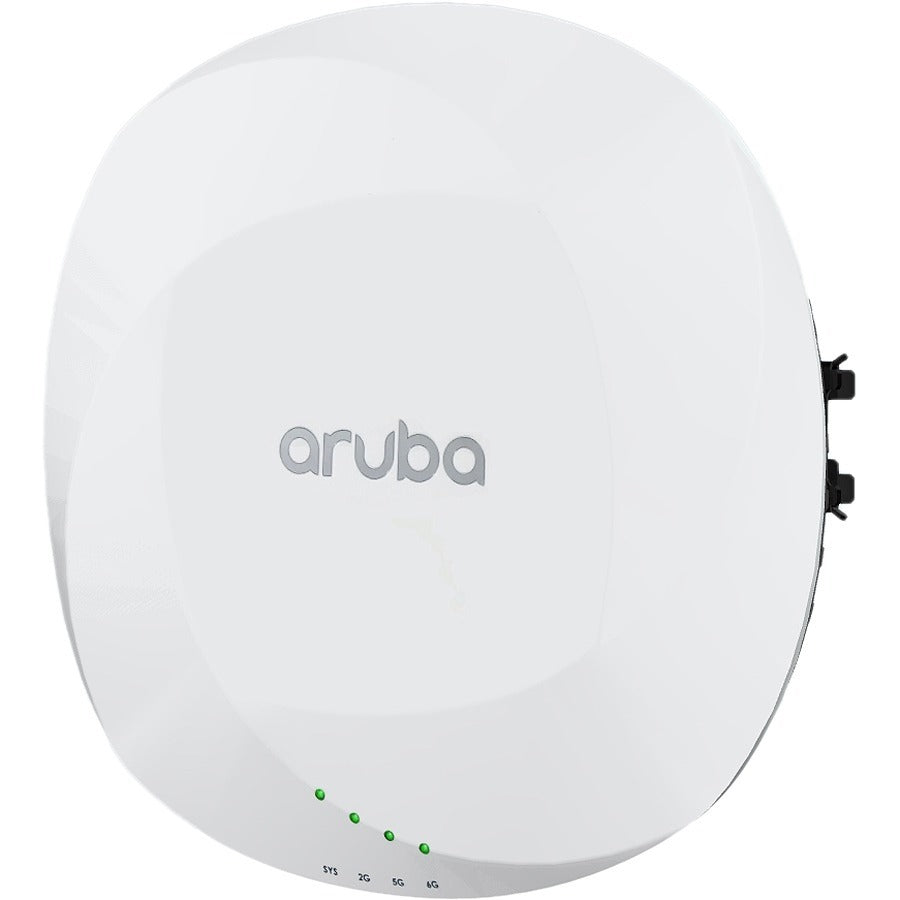

HPE AP-615 Tri Band 802.11ax 3.60 Gbit/s Wireless Access Point - Indoor - TAA Compliant - R7J54A

    Product form

    HPE AP-615 Tri Band 802.11ax 3.60 Gbit/s Wireless Access Point - Indoor - TAA Compliant - R7J54A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R7J54A Manufacturer Website Address: http://www.hpe.com Brand Name: HPE Product Series: 610... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $992.41

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 06PL23
        Barcode: 0190017493169

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: R7J54A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: HPE
      • Product Series: 610
      • Product Model: AP-615
      • Product Name: AP-615 Wireless Access Point
      • Marketing Information: For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.

        Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.

        More capacity and wider channels

        The Aruba 610 Series APs are designed to take advantage of Wi-Fi 6E and the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.

        Advantages of 6 GHz

        Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.

        Device class support

        The Aruba 610 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs.

        Global readiness

        While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching the 6 GHz band differently. The 610 Series APs are set up to automatically update regulatory rules once Wi-Fi 6E regulations have been approved and certified.

        Extend the benefits of Wi-Fi 6

        The Aruba 610 Series APs are based on the 802.11ax (Wi-Fi 6) standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Wi-Fi 6 features such as Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring etc. are fully supported on the Aruba Wi-Fi 6E access points as well.
      • Packaged Quantity: 1
      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: 802.11ax
      • Bluetooth Standard: Bluetooth 5
      • Network Band: Tri Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz
        • 6 GHz

      • Indoor/Outdoor: Indoor
      • Wireless Transmission Speed: 3.60 Gbit/s
      • MIMO Technology: Yes
      • Beamforming Technology: Yes
      • Data Encryption: Yes
      • Encryption Standard:
        • WPA
        • WPA3
        • WPA2-MPSK
        • WPA2
        • WPA3-ENT
        • WPA-ENT

        • Interfaces/Ports

      • Ethernet Technology: 2.5 Gigabit Ethernet
      • Number of Network (RJ-45) Ports: 1
      • PoE PD Port: Yes
      • USB: Yes
      • USB Standard: USB 2.0
      • Management Port: Yes

        • Power Description

      • Power Consumption: 5.60 W

        • Physical Characteristics

      • Form Factor: Ceiling Mountable
      • Antenna Form Factor: Internal
      • Height: 1.5"
      • Width: 6.3"
      • Depth: 6.3"
      • Weight (Approximate): 1.15 lb

        • Miscellaneous

      • TAA Compliant: Yes
        •
