Name: Lenovo 12-Outlets PDU - 4PU7A90811
Brand: Lenovo Group Limited
SKU: Z66846
Price: 6928.73 USD

Lenovo 12-Outlets PDU - 4PU7A90811

Product form

Lenovo Group Limited

Lenovo 12-Outlets PDU - 4PU7A90811

General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 4PU7A90811 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Name: 12-Outlets... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$6,928.73

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: Z66846
Barcode: 0889488712069

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Lenovo Group Limited

Manufacturer Part Number: 4PU7A90811

Manufacturer Website Address: http://www.lenovo.com/us/en/

Brand Name: Lenovo

Product Name: 12-Outlets PDU

Marketing Information:

The 1U Switched and Monitored 3-Phase Power Distribution Units (PDUs) make it quick and simple to deploy, protect, and manage your high-availability rack environment. These space efficient and power dense PDUs were co-designed by Vertiv and Lenovo and come in the following 1U designs available to meet the requirements of your most power-demanding systems:

18x Combination outlets C13/C19 with 80A 3-phase Delta input
18x Combination outlets C13/C19 with 48A 3-phase Wye input (ETL certification)
12x Combination outlets C13/C19 with 60A 3-phase Delta input
12x Combination outlets C13/C19 with 32A 3-phase Wye input 1U
18x Combination outlets C13/C19 with 48A 3-phase Wye input (CE certification)

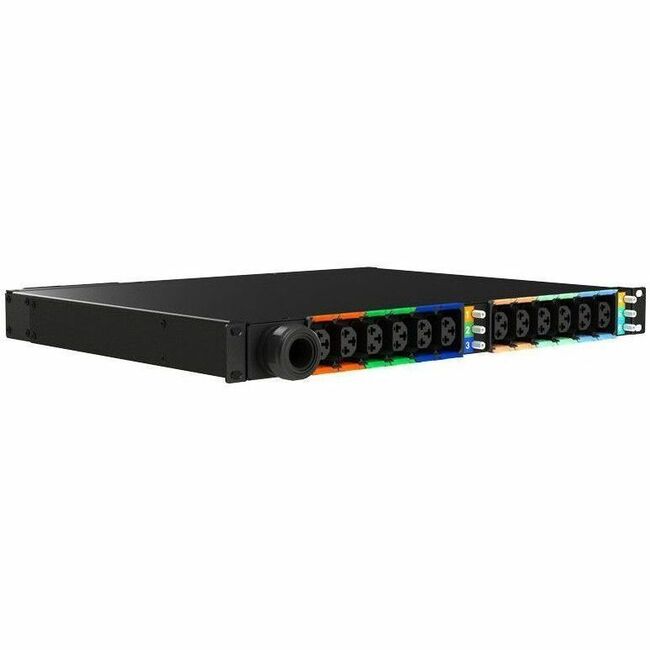

The outlets (receptacles) on the PDUs give administrators the ability to remotely turn on, turn off, or reboot power at each outlet to power cycle unresponsive IT equipment. Outlet level monitoring gives a comprehensive view of outlet power usage via remote network access. They provide on and off functionality to allow for power sequencing and to help prevent unintended overloading. The following figure shows the PDU with 18 rear-facing outlets.

Did you know?

With ever growing power densities in today's rack environments, it is all too easy to add load in the wrong place and trigger an overload event. The Switched and Monitored PDU offerings can minimize this impact, providing the ability to quickly recover with resettable circuit breakers for each designated bank of outlets (receptacles), referred to as circuits or load groups. Breakers are color coded to the outlets in a particular circuit to aid in configuration, installation, and maintenance. Furthermore, these PDUs also offer individual outlet remote monitoring and switching (on/off), which allows for remote power sequencing and further helping to prevent unintended PDU overloading

Product Type: PDU

Technical Information

PDU Type:

Switched
Monitored

Phase: Three Phase

Plug/Connector Type: IEC 60309 (3P+N+E) 32A

Receptacle Type: Combination C13/C19

Receptacle Detail: 12 x Combination C13/C19

Protection Type: Single Pole

Locking Receptacles: P-Lock

Features: Compact

Load Capacity (Watt): 23 kW

Power Description

Input Voltage:

230 V AC
400 V AC

Input Voltage Range:

200 V AC - 240 V AC
346 V AC - 415 V AC

Output Voltage: 230 V AC

Output Voltage Range: 200 V AC - 240 V AC

Power Rating (Watt): 22 kW

Input Current: 32 A

Management

Management:

DHCP
HTTP
HTTPS
IPv4
IPv6
LDAP
NTP
RADIUS
RSTP
SSH
SMT
SNMP (v1/v2c/v3)
Syslog
TACACS+

Remote Outlet Switching: Yes

Interfaces/Ports

Network (RJ-45): Yes

Physical Characteristics

Mounting Orientation: Horizontal/Vertical

Mount Type:

Rack-mountable
Cabinet-mountable

Form Factor: Rack

Rack Height: 1U

Cord Length: 10 ft

Height: 1.7"

Width: 17.6"

Depth: 14"

Weight (Approximate): 31.09 lb

Environmental Conditions

Minimum Operating Temperature: 50°F (10°C)

Maximum Operating Temperature: 140°F (60°C)

Miscellaneous

Application/Usage:

Data Center
Server

UL Listed: Yes
