Lenovo 18-Outlets PDU - 4PU7A90810

    Product form
    • Lenovo Group Limited

    Lenovo 18-Outlets PDU - 4PU7A90810

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 4PU7A90810 Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Name: 18-Outlets... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $12,765.47

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: Z58283
        Barcode: 0889488712052

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 4PU7A90810
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Name: 18-Outlets PDU
      • Marketing Information:

        The 1U Switched and Monitored 3-Phase Power Distribution Units (PDUs) make it quick and simple to deploy, protect, and manage your high-availability rack environment. These space efficient and power dense PDUs were co-designed by Vertiv and Lenovo and come in the following 1U designs available to meet the requirements of your most power-demanding systems:

        • 18x Combination outlets C13/C19 with 80A 3-phase Delta input
        • 18x Combination outlets C13/C19 with 48A 3-phase Wye input (ETL certification)
        • 12x Combination outlets C13/C19 with 60A 3-phase Delta input
        • 12x Combination outlets C13/C19 with 32A 3-phase Wye input 1U
        • 18x Combination outlets C13/C19 with 48A 3-phase Wye input (CE certification)

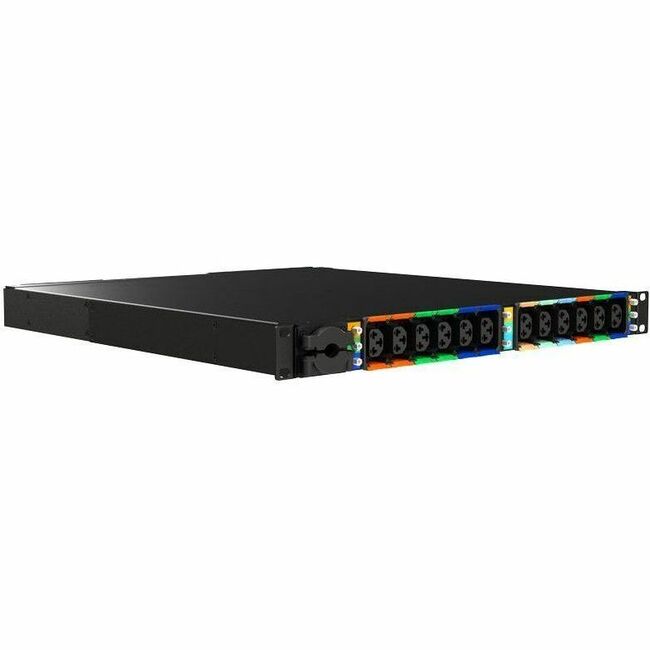

        The outlets (receptacles) on the PDUs give administrators the ability to remotely turn on, turn off, or reboot power at each outlet to power cycle unresponsive IT equipment. Outlet level monitoring gives a comprehensive view of outlet power usage via remote network access. They provide on and off functionality to allow for power sequencing and to help prevent unintended overloading. The following figure shows the PDU with 18 rear-facing outlets.

        Did you know?

        With ever growing power densities in today's rack environments, it is all too easy to add load in the wrong place and trigger an overload event. The Switched and Monitored PDU offerings can minimize this impact, providing the ability to quickly recover with resettable circuit breakers for each designated bank of outlets (receptacles), referred to as circuits or load groups. Breakers are color coded to the outlets in a particular circuit to aid in configuration, installation, and maintenance. Furthermore, these PDUs also offer individual outlet remote monitoring and switching (on/off), which allows for remote power sequencing and further helping to prevent unintended PDU overloading


      • Product Type: PDU

        • Technical Information

      • PDU Type:
        • Switched
        • Monitored

      • Phase: Three Phase
      • Plug/Connector Type: IEC 60309 3P+E 100A
      • Receptacle Type: Combination C13/C19
      • Receptacle Detail: 18 x IEC 60320 C13/C19
      • Protection Type: Double Pole
      • Locking Receptacles: P-Lock
      • Features: Compact
      • Load Capacity (Watt): 23 kW

        • Power Description

      • Input Voltage: 230 V AC
      • Input Voltage Range: 200 V AC - 240 V AC
      • Output Voltage Range: 200 V AC - 240 V AC
      • Power Rating (Watt): 23 kW
      • Input Current: 80 A

        • Management

      • Management:
        • :DHCP
        • HTTP
        • HTTPS
        • IPv4
        • IPv6
        • LDAP
        • NTP
        • RADIUS
        • RSTP
        • SSH
        • SMT
        • SNMP (v1/v2c/v3)
        • Syslog
        • TACACS+

      • Remote Outlet Switching: Yes

        • Interfaces/Ports

      • Network (RJ-45): Yes

        • Physical Characteristics

      • Mounting Orientation: Horizontal/Vertical
      • Mount Type:
        • Rack-mountable
        • Cabinet-mountable

      • Rack Height: 1U
      • Cord Length: 10 ft
      • Height: 1.7"
      • Width: 17.6"
      • Depth: 19"
      • Weight (Approximate): 35.05 lb

        • Environmental Conditions

      • Minimum Operating Temperature: 50°F (10°C)
      • Maximum Operating Temperature: 140°F (60°C)
      • Minimum Operating Humidity: 5%
      • Maximum Operating Humidity: 95%

        • Miscellaneous

      • Package Contents:
        • 18-Outlets PDU
        • Mounting Rails for Supported Rack Cabinets - Horizontal and Vertical (Side Pocket) Mounting
        • Rack Mounting Hardware Kit Including M6 Cage Nuts and Supporting Screws/Nuts

      • Application/Usage:
        • Data Center
        • Server

      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Warranty

      • Limited Warranty: 3 Year
        •
