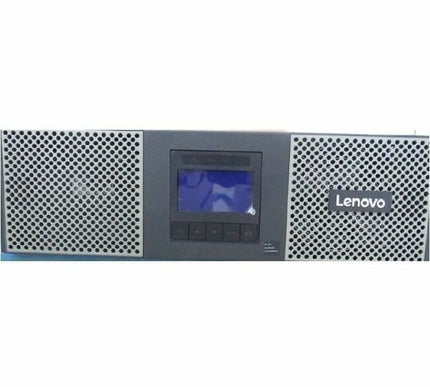

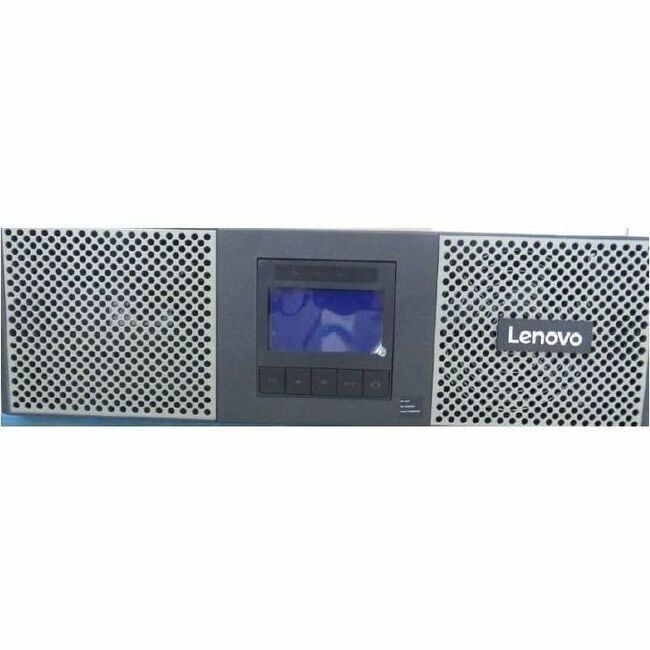

Lenovo RT6kVA 6000VA Rack/Tower UPS - 7DD5A00EWW

    Product form
    • Lenovo Group Limited

    Lenovo RT6kVA 6000VA Rack/Tower UPS - 7DD5A00EWW

      General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7DD5A00EWW Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Model: RT6kVA... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $17,456.08

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: Z58128
        Barcode: 0889488785520

        Size chart

        General Information

      • Manufacturer: Lenovo Group Limited
      • Manufacturer Part Number: 7DD5A00EWW
      • Manufacturer Website Address: http://www.lenovo.com/us/en/
      • Brand Name: Lenovo
      • Product Model: RT6kVA
      • Product Name: RT6kVA 6000VA Rack/Tower UPS
      • Marketing Information:

        The RT5kVA and RT6kVA 3U Rack or Tower Uninterruptible Power Supply-G2 offerings provide extended power protection with increased efficiency and simplified power management to safeguard high-availability of Lenovo server environments. With efficiency ratings of up to 98%, these compact 3U rack or tower designs can help reduce energy usage without compromising performance or reliability. The 3U Rack or Tower UPS-G2 units can be installed in a data center rack cabinet or can be used as tower UPS units in office and distributed IT environments where extended power protection is required.

        Did you know?

        3U Rack or Tower UPS-G2 units feature Advanced Battery Management (ABM) technology that uses a unique three-stage charging technique that significantly extends battery service life and optimizes recharge time, compared to traditional charging methods.

        3U Rack or Tower UPS-G2 units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage.

        3U Rack or Tower UPS-G2 units support UPS Manager software that integrates seamlessly with the major virtualization platforms, which enables you to view and manage your entire power system from your current dashboard. It also triggers live migration during power outages and avoids data loss by gracefully shutting down virtual machines and hosts in a cluster if there is an extended power outage.


      • Product Type: Double Conversion Online UPS

        • Technical Information

      • Plug/Connector Type: Hardwire Terminal Block
      • Receptacle Type:
        • IEC 60320 C19 (16A)
        • IEC 60320 C13 (10A)

      • Receptacle Detail:
        • 2 x IEC 60320 C19 (16A)
        • 8 x IEC 60320 C13 (10A)

      • Transfer Time: 10 ms
      • Efficiency Detail:
        • 94% (Online Mode)
        • 98% (Hi-efficiency Mode)

      • Application/Usage:
        • Server
        • Data Center
        • Rack Cabinet
        • IT
        • Mission Critical Equipment
        • Electronic Equipment

      • Features: Advanced Battery Management (ABM)

        • Power Description

      • Load Capacity (VA): 6000 VA
      • Load Capacity (Watt): 5400 W
      • Input Voltage: 230 V AC
      • Input Voltage Range: 200 V AC - 240 V AC
      • Input Current: 30 A
      • Output Voltage:
        • 200 V AC
        • 208 V AC
        • 220 V AC
        • 230 V AC
        • 240 V AC

      • Input Frequency:
        • 50 Hz
        • 60 Hz

      • Output Frequency:
        • 50 Hz
        • 60 Hz

      • Waveform Type: Sine Wave

        • Display & Graphics

      • Display: LCD

        • Management

      • Network Management:
        • Network Management Card
        • SNMP/Telnet/HTTP/SSH

        • Controls/Indicators

      • Status Indicators:

        LED indicators:

        • Online
        • On Battery
        • Bypass
        • Fault

        • Interfaces/Ports

      • Serial Port: Yes
      • USB: Yes
      • Network (RJ-45): Yes
      • EPO Port: Yes

        • Battery Information

      • Battery Characteristics: Leak-proof, Sealed, Maintenance-free, Valve-regulated
      • Battery Chemistry: Lead Acid
      • Backup/Run Time (Full Load): 3 Minute
      • Backup/Run Time (Half Load): 8.50 Minute
      • Hot Swappable: Yes
      • Replaceable Battery: Yes

        • Environmental Conditions

      • Maximum Operating Elevation: 9842.52 ft
      • Minimum Operating Temperature: 32°F (0°C)
      • Maximum Operating Temperature: 104°F (40°C)

        • Physical Characteristics

      • Height: 5.12"
      • Width: 17.36"
      • Depth: 26.97"
      • Rack Height: 3U
      • Form Factor: Rack/Tower
      • Weight (Approximate): 105.82 lb

        • Miscellaneous

      • Package Contents:
        • RT6kVA 6000VA Rack/Tower UPS
        • Rack-mount Kit
        • Rack Installation Instructions
        • Tower Kit
        • Serial Cable: 1.2 m (4 ft)
        • USB Cable
        • Remote On/Off (ROO) and Remote Power Off (RPO) Connector
        • Documentation Package

      • Energy Star: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)

        • Warranty

      • Limited Warranty: 3 Year
        •
