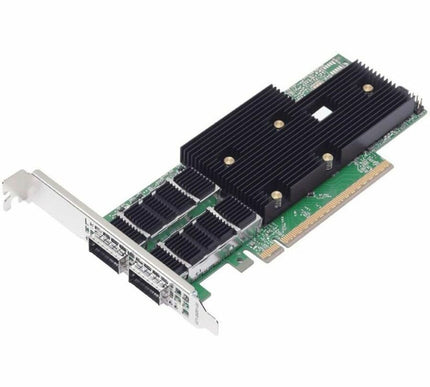

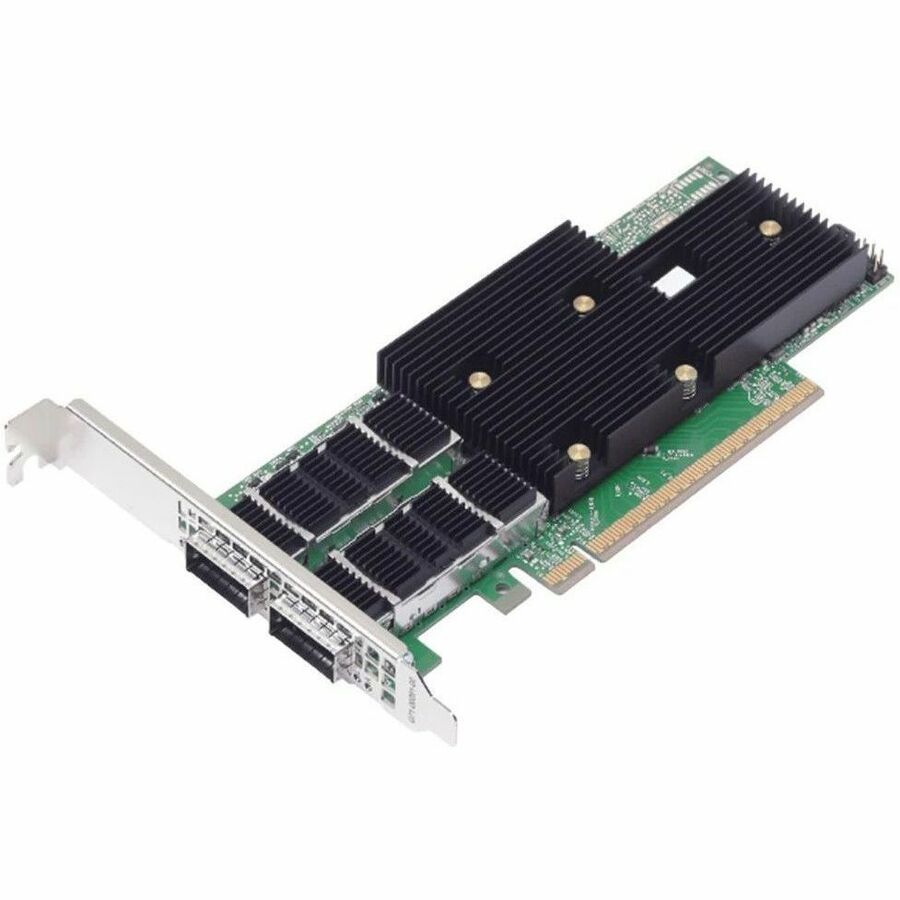

The ThinkSystem Broadcom 57608 2x200/1x400GbE QSFP112 Ethernet Adapters are high-performance dual-port 200Gb Ethernet adapters with a PCIe 5.0 x16 host interface that are designed to build highly scalable, feature-rich networking solutions in servers for AI/ML, cloud, high-performance computing, and storage applications.

The 57608 Ethernet adapters are available in two form factors, a PCIe low-profile adapter and an OCP 3.0 adapter.

The adapters use the Broadcom BCM57608 400GbE MAC controller. Incorporating industry-leading PHY technology, the adapter provides highly efficient network connectivity using 8 lanes of built-in SerDes, each supporting 100/50G PAM-4 and 25G NRZ. The adapters support fourth-generation, standards-based RDMA over Converged Ethernet (RoCE) with hardware-based congestion control.

The 57608 Ethernet adapters offer two 200Gb Ethernet ports but can also be configured as a 1-port 400Gb adapter with port 1 active and port 2 disabled.

• RDMA over Converged Ethernet (RoCE)
• Extended Message-Signaled Interrupts (MSI-X)
• RDMA over Converged Ethernet (RoCE) v2
• Single Root I/O Virtualization (SR-IOV)
• Virtual Extensible LAN (VXLAN)
• Network Virtualization using Generic Routing Encapsulation (NVGRE)
• User Datagram Protocol (UDP)
• Large Send Offload (LSO)
• Large Receive Offload (LRO)
• Transmit Side Scaling (TSS)
• Receive Side Scaling (RSS)
• PXE Support
• UEFI Support

• 100GBase-X
• 50GBase-X
• 25GBase-X

• ThinkSystem 200/400Gigabit Ethernet Card
• PCIe Adapter
• Documentation Flyer

• Server
• Switch
