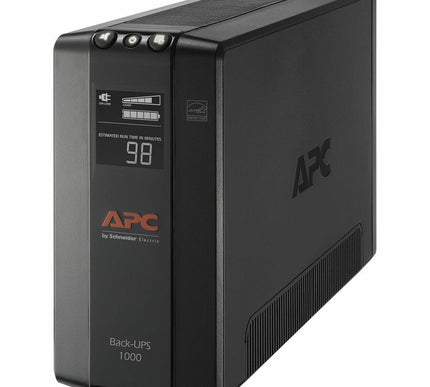

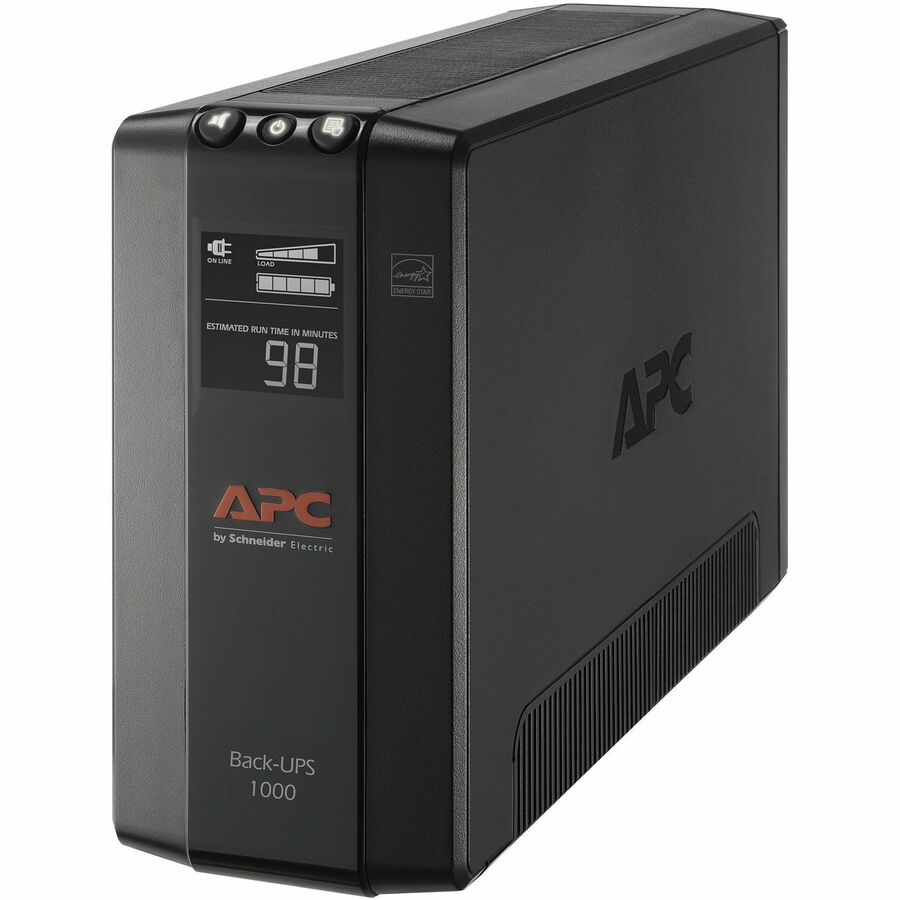

APC Back-UPS 1000, Compact Tower, 1000VA, 120V, AVR, LCD, 8 NEMA outlets (4 surge) - BX1000M

    Product form
    • Schneider Electric SA

    APC Back-UPS 1000, Compact Tower, 1000VA, 120V, AVR, LCD, 8 NEMA outlets (4 surge) - BX1000M

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: BX1000M Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Back-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $206.50

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 8U9551
        Barcode: 0731304331766

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: BX1000M
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Back-UPS Pro
      • Product Name: Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V
      • Marketing Information:

        • Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro Compact 1000VA. APC Back-UPS Pro Compact provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. This compact tower UPS is designed for workstations, monitors and network devices. Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations so connected devices receive consistent power. The APC compact tower UPS is significantly smaller and lighter than other tower models, allowing for convenient use and installation while still providing quality power protection. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 600w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD Display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more. 2 RJ-45 data ports are in the back to protect DSL, modem or fax lines from potentially harmful power surges. 2 coaxial ports are also in the back of the UPS for additional protection. This computer backup offers lifetime guaranteed surge protection with a

        • 250,000 equipment protection policy. Package Contains UPS, USB cable and user manual

          More from the Manufacturer


      • Product Type: Line-interactive UPS

        • Technical Information

      • AVR: Yes
      • Plug/Connector Type: NEMA 5-15P
      • Receptacle Type: NEMA 5-15R
      • Receptacle Detail:
        • 4 x NEMA 5-15R Surge
        • 4 x NEMA 5-15R

      • Number of Battery & Surge Outlets: 8
      • Number of Surge-only Outlets: 4
      • Dataline Protection:
        • Coax
        • RJ-45

      • Cord Length: 6 ft
      • Transfer Time: 10 ms
      • Phase: Single Phase
      • Application/Usage:
        • Computer
        • Electronic Equipment
        • Router
        • Modem
        • Storage Device
        • Gaming Console
        • Home
        • Business

        • Power Description

      • Load Capacity (VA): 1000 VA
      • Load Capacity (Watt): 600 W
      • Input Voltage: 120 V
      • Input Voltage Range: 88 V AC - 139 V AC
      • Input Current: 15 A
      • Output Voltage: 120 V AC
      • Input Frequency: 60 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Stepped Approximated Sine Wave
      • Surge Energy Rating: 1103 J

        • Management

      • Alarm:
        • On Battery
        • Low Battery
        • Overload

        • Controls/Indicators

      • Status Indicators:

        LCD Status Display:

        • UPS status
        • Load and battery bar graphs

        • Interfaces/Ports

      • USB (HID Compliant) Port: Yes

        • Battery Information

      • Number of Batteries: 1
      • Battery Characteristics: Maintenance-free, Sealed, Leak-proof
      • Battery Chemistry: Lead Acid
      • Battery Energy: 504 kJ
      • Backup/Run Time (Full Load): 4.30 Minute
      • Backup/Run Time (Half Load): 13.50 Minute
      • Hot Swappable: Yes
      • Typical Battery Recharge Time: 12 Hour
      • Replaceable Battery: Yes

        • Environmental Conditions

      • Maximum Operating Elevation: 10000 ft
      • Maximum Storage Elevation: 50000 ft
      • Storage Temperature: 5°F (-15°C) - 113°F (45°C)
      • Operating Humidity: 0% - 95%
      • Storage Relative Humidity: 0% - 95%
      • Maximum Operating Temperature: 104°F (40°C)
      • Sound Emission (A-Weighted): 45 dB(A)
      • Thermal Dissipation: 14.21 W

        • Physical Characteristics

      • Product Color: Black
      • Height: 7.48"
      • Width: 3.58"
      • Depth: 12.20"
      • Form Factor: Tower
      • Weight (Approximate): 15.87 lb

        • Miscellaneous

      • Package Contents:
      • Back UPS Pro BX1000M, Compact Tower, 1000VA, AVR, LCD, 120V
      • USB cable
      • User manual

      • Energy Star: Yes
      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Environmental Compliance:
        • Restriction of Hazardous Substances (RoHS)
        • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 3 Year
      • Additional Warranty Information: Battery: 12 month(s)|UPS: 36 month(s)
        •
