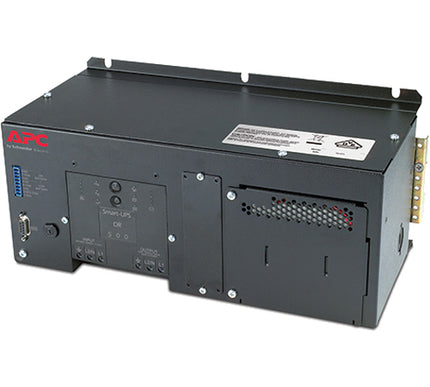

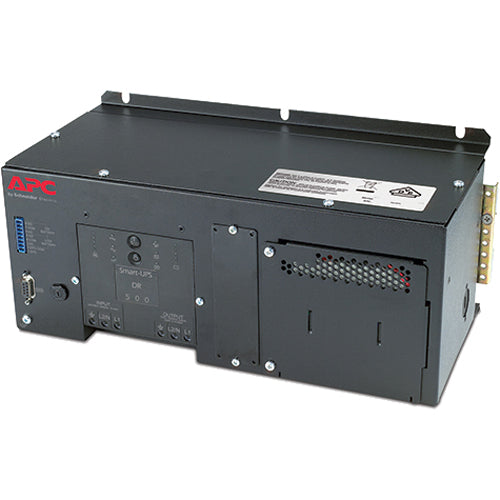

Name: APC by Schneider Electric DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V - SUA500PDRI-H
Brand: Schneider Electric SA
SKU: VZ3857
Price: 952.33 USD

APC by Schneider Electric DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V - SUA500PDRI-H

Product form

Schneider Electric SA

APC by Schneider Electric DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V - SUA500PDRI-H

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SUA500PDRI-H Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC by Schneider Electric... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$952.33

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: VZ3857

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: SUA500PDRI-H

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC by Schneider Electric

Product Name: DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V

Marketing Information:

Reliable protection for industrial controls.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.

Technical Information

Plug/Connector Type: Hard Wire 3 wire (1PH+N+G)

Receptacle Type: Hard Wire 3-wire (H N + G)

Receptacle Detail: 1 x Hard Wire 3-wire (H N + G)

Dataline Protection:

RS-232
DB-9

Power Description

Load Capacity (VA): 500 VA

Load Capacity (Watt): 325 W

Input Voltage: 230 V AC

Output Voltage: 230 V AC

Surge Energy Rating: 540 J

Management

Alarm:

On Battery
Low Battery
Overload

Controls/Indicators

Status Indicators:

On Line
On Battery
Replace Battery
Overload

Interfaces/Ports

Serial Port: Yes

Battery Information

Number of Batteries: 1

Battery Characteristics: Spill-proof, Maintenance-free

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 8 Minute

Backup/Run Time (Half Load): 24 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 2.50 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Sound Emission (A-Weighted): 55 dB(A)

Thermal Dissipation: 26.38 W

Physical Characteristics

Height: 5.83"

Width: 14.25"

Depth: 6.73"

Form Factor:

Wall Mountable
Panel Mount

Weight (Approximate): 28.35 lb

Miscellaneous

Package Contents:

DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V
CD with Software
Documentation CD
Installation Guide
Smart UPS Signalling RS-232 Cable
Wall-Mounting Template

Software Included: PowerChute v.9.1 Business Edition Deluxe

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
