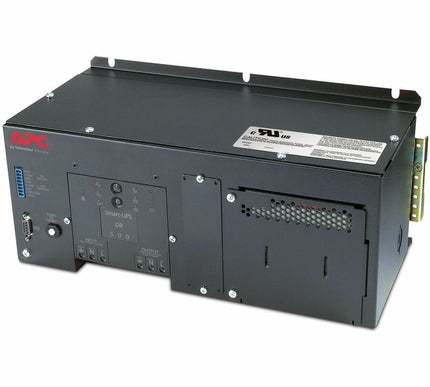

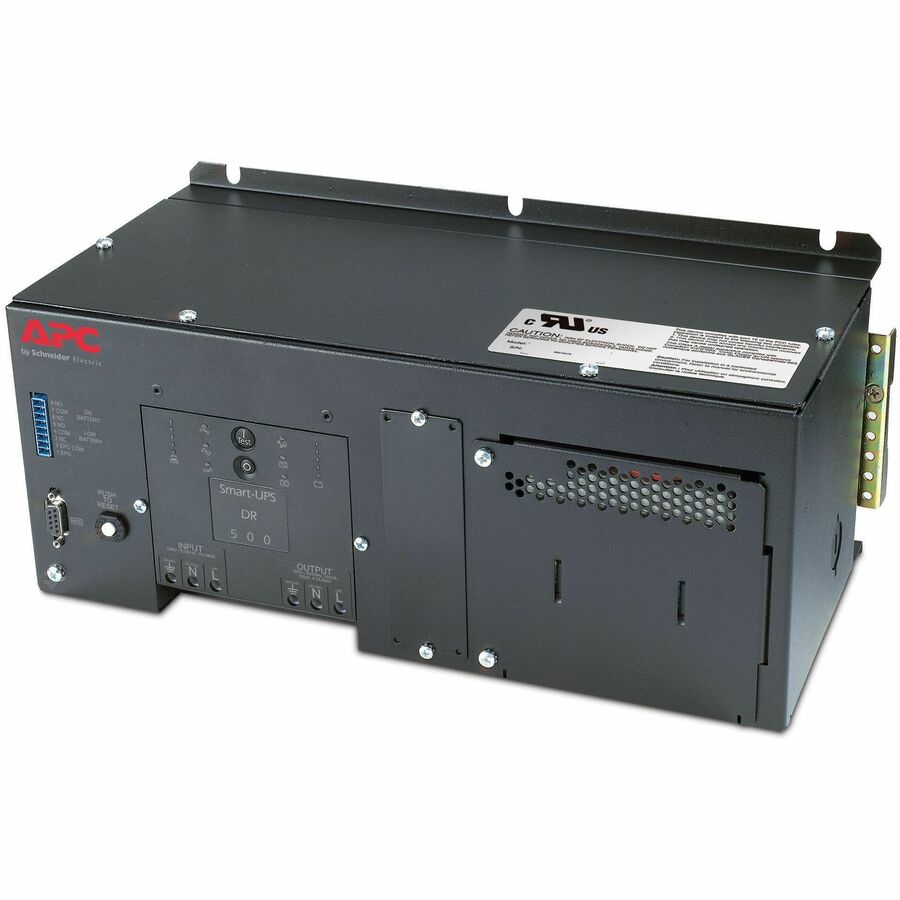

Name: APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 120V - SUA500PDR-H
Brand: Schneider Electric SA
SKU: TT7400
Price: 961.48 USD

APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 120V - SUA500PDR-H

Product form

Schneider Electric SA

APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 120V - SUA500PDR-H

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SUA500PDR-H Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Name: 500VA... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$961.48

Business-to-Business Sales Only
We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: TT7400

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: SUA500PDR-H

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC

Product Name: 500VA Panel Mount UPS

Marketing Information:

The APC DIN Rail Panel Mount UPS with a high-temperature battery has a power rating of 500VA and 325 watts. It operates at a nominal voltage of 120V and includes a hard wire 3-wire output connection. The UPS is designed for high-temperature environments and uses a lead-acid battery.

Technical Information

Plug/Connector Type: Hard Wire 3 wire (1PH+N+G)

Receptacle Type: Hard Wire 3-wire (H N + G)

Receptacle Detail: 1 x Hard Wire 3-wire (H N + E)

Number of Battery & Surge Outlets: 1

Transfer Time: 0 ns

Application/Usage:

Industry
Transportation
Mission Critical Equipment
Pharmaceutical
Chemical
Automotive

Power Description

Load Capacity (VA): 500 VA

Load Capacity (Watt): 325 W

Input Voltage: 120 V

Input Voltage Range: 82 V AC - 144 V AC

Output Voltage: 120 V AC

Input Frequency: 60 Hz

Waveform Type: Sine Wave

Surge Energy Rating: 540 J

Management

Network Management: DB9 RS-232/SmartSlot

Alarm:

On Battery
Low Battery
Overload
Configurable Delay

Controls/Indicators

Status Indicators: LED Status Display:

On Line
On Battery
Replace Battery
Overload

Interfaces/Ports

Serial Port: Yes

EPO Port: Yes

Battery Information

Number of Batteries: 1

Battery Characteristics: Maintenance-free, Sealed, Leak-proof

Battery Chemistry: Lead Acid

Battery Energy: 432 kJ

Backup/Run Time (Full Load): 8.10 Minute

Backup/Run Time (Half Load): 24.40 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 2 Hour

Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft

Maximum Storage Elevation: 49212.60 ft

Storage Temperature: 23°F (-5°C) - 131°F (55°C)

Storage Relative Humidity: 0% - 95%

Maximum Operating Temperature: 122°F (50°C)

Sound Emission (A-Weighted): 55 dB(A)

Thermal Dissipation: 26.38 W

Physical Characteristics

Height: 5.83"

Width: 14.25"

Depth: 6.73"

Form Factor: Tower

Weight (Approximate): 25.31 lb

Miscellaneous

Package Contents:

500VA Panel Mount UPS

CD with software

Documentation CD

Installation guide

Smart UPS signalling RS-232 cable

Country of Origin: Philippines

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Single-use Plastic (SUP) Free Shipping Packaging: No

Warranty

Limited Warranty: 2 Year
