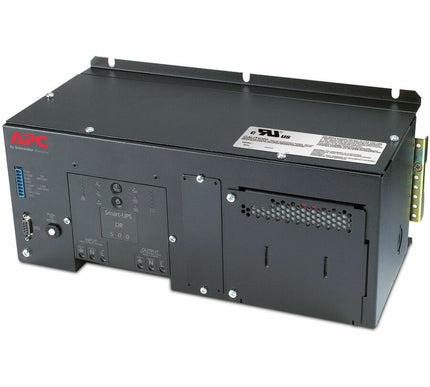

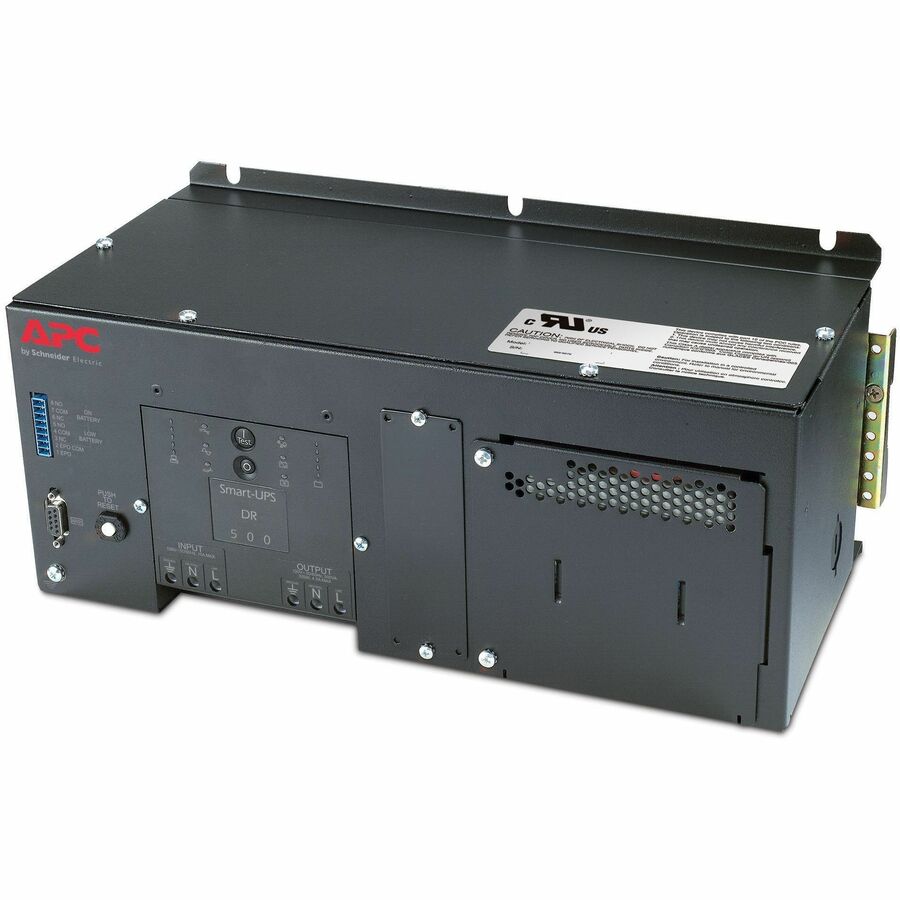

APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V - SUA500PDR-S

    Product form
    • Schneider Electric SA

    APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 120V - SUA500PDR-S

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SUA500PDR-S Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Name: Industrial... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $608.91

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SUA500PDRS
        Barcode: 731304733010

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SUA500PDR-S
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Name: Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
      • Marketing Information:

        24V DC UPS designed specifically for industrial automation and controls. This 325W UPS comes with hardwire input/output and can be mounted on a DIN Rail or any control panel. It features temperature-compensated battery charging that helps prolong the battery life. It comes with a 2-year standard warranty.

        More from the Manufacturer


      • Product Type: Line-interactive UPS

        • Technical Information

      • Plug/Connector Type: Hard Wire 3 wire (1PH+N+G)
      • Receptacle Type: Hard Wire 3-wire (H N + G)
      • Receptacle Detail: 1 x Hard Wire 3-wire (H N + E)
      • Number of Battery & Surge Outlets: 1
      • Cord Length: 8.01 ft

        • Power Description

      • Load Capacity (VA): 500 VA
      • Load Capacity (Watt): 325 W
      • Input Voltage: 120 V
      • Output Voltage: 120 V AC
      • Waveform Type: Sine Wave
      • Surge Energy Rating: 540 J

        • Interfaces/Ports

      • Serial Port: Yes

        • Battery Information

      • Battery Characteristics: Maintenance-free, Sealed
      • Battery Chemistry: Lead Acid
      • Backup/Run Time (Full Load): 8 Minute
      • Backup/Run Time (Half Load): 24 Minute
      • Typical Battery Recharge Time: 2 Hour

        • Physical Characteristics

      • Product Color: Black
      • Height: 5.83"
      • Width: 14.25"
      • Depth: 6.73"
      • Rack Height: 1U
      • Form Factor: Tower
      • Weight (Approximate): 28.35 lb

        • Miscellaneous

      • Package Contents:
      • Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
      • CD with software
      • Documentation CD
      • Installation guide
      • Smart UPS signalling RS-232 cable

      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
