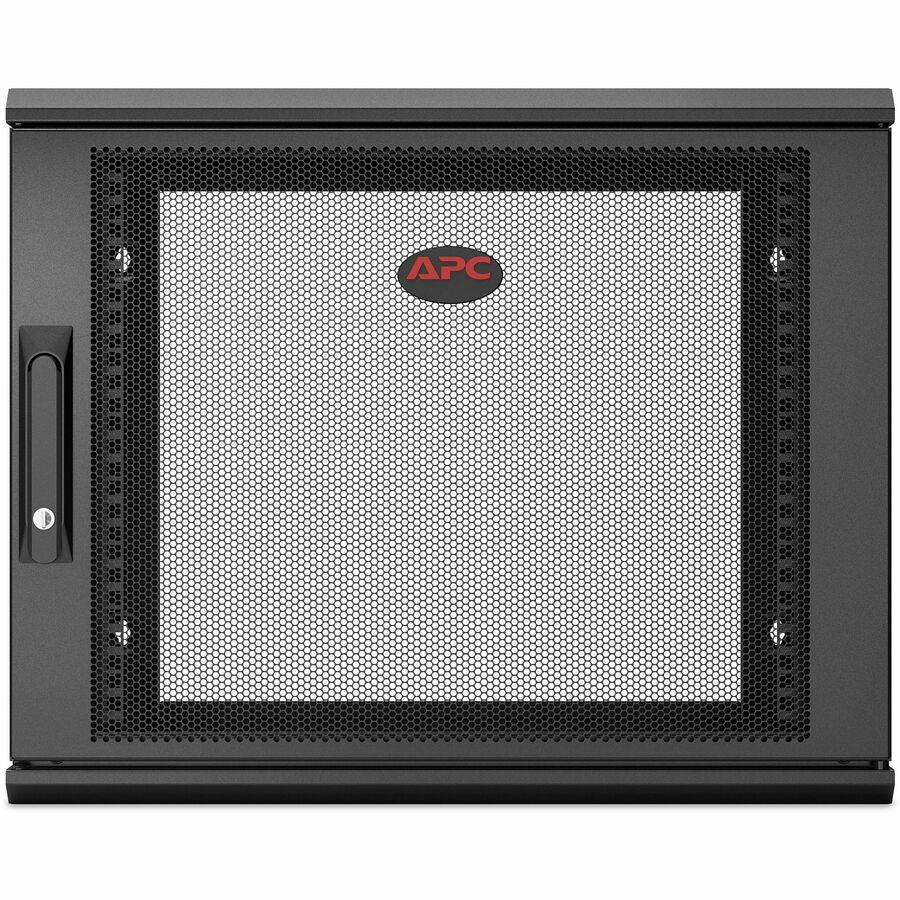

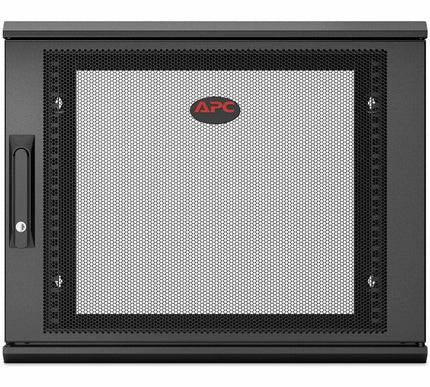

APC NetShelter 9U Wallmount Rack Enclosure Cabinet Single Hinged Server Depth - AR109SH6

    Product form
    • Schneider Electric SA

    APC NetShelter 9U Wallmount Rack Enclosure Cabinet Single Hinged Server Depth - AR109SH6

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AR109SH6 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: NetShelter... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $541.37

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: AR109SH6
        Barcode: 731304402718

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AR109SH6
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: NetShelter WX
      • Product Name: NetShelter WX 9U Single Hinged Wall-Mount Enclosure 600mm Deep
      • Marketing Information: Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting 9U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty

        More from the Manufacturer


      • Packaged Quantity: 1 Each
      • Product Type: Rack Cabinet

        • Technical Information

      • Application/Usage:
        • Networking
        • Airflow System

      • Features: Side-to-side Airflow
      • Mounting Preference: No Preference

        • Physical Characteristics

      • Form Factor: Wall Mountable
      • Color Family: Black
      • Product Color: Black
      • Static/Stationary Weight Capacity: 200.42 lb
      • Height: 19.1"
      • Width: 23.6"
      • Depth: 23.6"
      • Rack Height: 9U
      • Rack Width: 19"
      • Rack Depth: 20.79"
      • Weight (Approximate): 36.80 lb

        • Miscellaneous

      • Assembly Required: No
      • Country of Origin: United States
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 5 Year
        •
