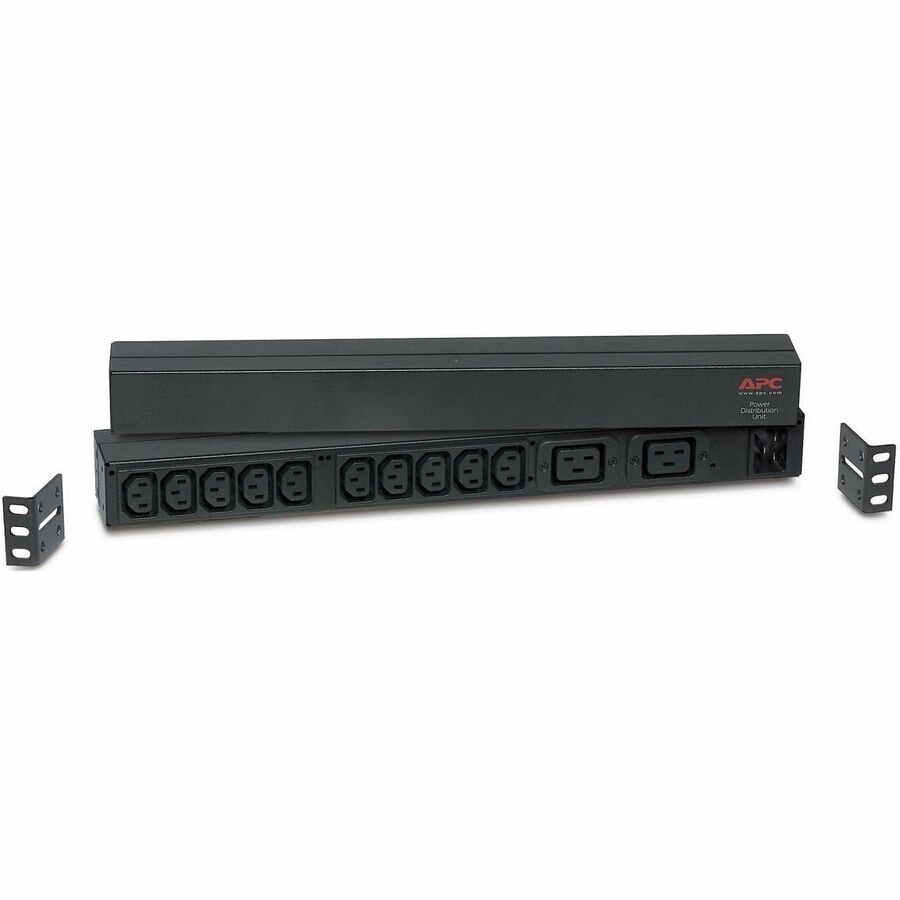

APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets - AP9559

    Product form
    • Schneider Electric SA

    APC NetShelter Basic Rack PDU, 1U, 16A, 208 & 230V, 10 C13 and 2 C19 outlets - AP9559

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP9559 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: NetShelter... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $317.63

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: AP9559
        Barcode: 731304123521

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP9559
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: NetShelter
      • Product Name: NetShelter 12-Outlets PDU
      • Marketing Information:

        It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.


      • Packaged Quantity: 1 Each
      • Product Type: PDU

        • Technical Information

      • PDU Type: Basic
      • Plug/Connector Type: IEC 60320 C20
      • Plug/Connector Detail: 1 x IEC 60320 C20
      • Receptacle Type:
        • IEC 60320 C13
        • IEC 60320 C19

      • Receptacle Detail:
        • 10 x IEC 60320 C13
        • 2 x IEC 60320 C19

      • Load Capacity (VA): 3680 W

        • Power Description

      • Input Voltage:
        • 120 V
        • 208 V
        • 230 V

      • Input Voltage Range: 90 V AC - 250 V AC
      • Output Voltage:
        • 120 V AC
        • 208 V AC
        • 230 V AC

      • Input Current: 16 A
      • Input Frequency: 60 Hz

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Horizontal
      • Mount Type: Rack-mountable
      • Rack Height: 1U
      • Cord Length: 8.17 ft
      • Height: 1.7"
      • Width: 17.6"
      • Depth: 2.2"
      • Weight (Approximate): 2.16 lb

        • Environmental Conditions

      • Minimum Operating Temperature: 32°F (0°C)
      • Maximum Operating Temperature: 113°F (45°C)
      • Minimum Storage Temperature: -13°F (-25°C)
      • Maximum Storage Temperature: 149°F (65°C)
      • Minimum Operating Humidity: 0%
      • Maximum Operating Humidity: 95%

        • Miscellaneous

      • Package Contents:
        • NetShelter 12-Outlets PDU
        • User Manual
        • Rack Mounting Brackets

      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Environmental Compliance:
        • Restriction of Hazardous Substances (RoHS)
        • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
        • Waste Electrical and Electronic Equipment Directive (WEEE)

      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
