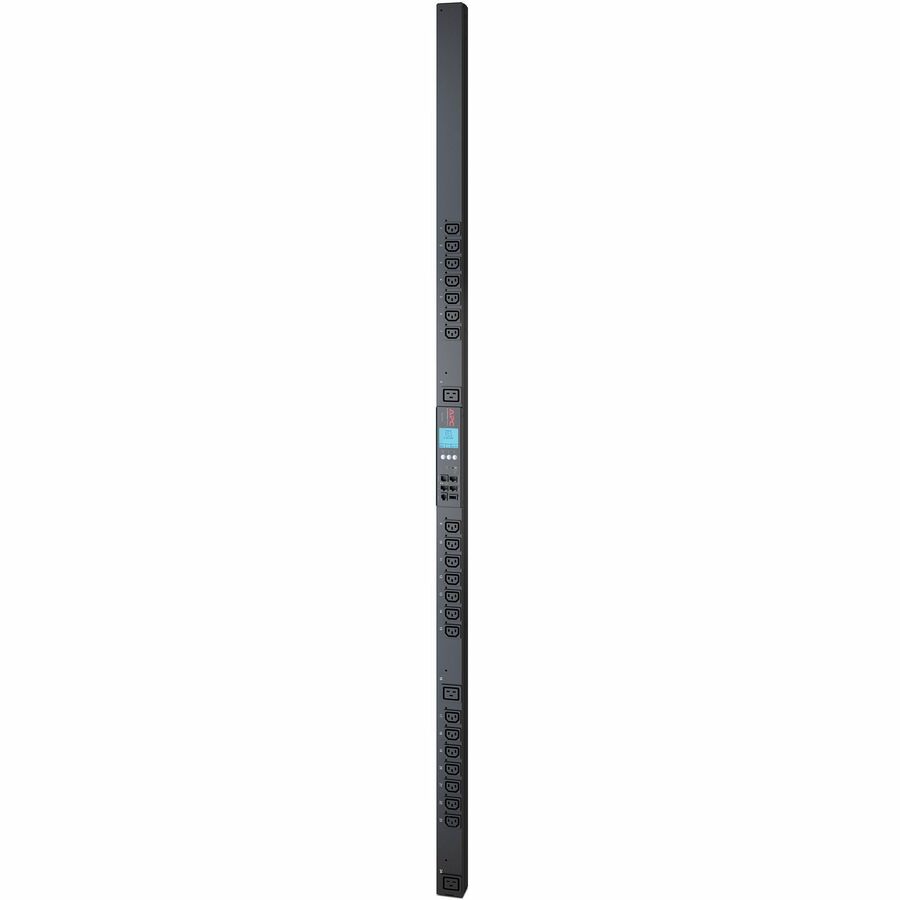

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 20A, 208V, 21 C13 and 3 C19 outlet - AP8659NA3

    Product form
    • Schneider Electric SA

    APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 20A, 208V, 21 C13 and 3 C19 outlet - AP8659NA3

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8659NA3 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Name: Metered-by-Outlet... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $1,947.95

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: AP8659NA3
        Barcode: 731304299523

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP8659NA3
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Name: Metered-by-Outlet Rack PDU
      • Marketing Information:

        APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager


      • Product Type: PDU

        • Technical Information

      • PDU Type: Metered-by-Outlet
      • Plug/Connector Type: NEMA L6-20P
      • Receptacle Type:
        • IEC 60320 C19
        • IEC 60320 C13

      • Receptacle Detail:
        • 21 x IEC 60320 C13
        • 3 x IEC 60320 C19

        • Power Description

      • Input Voltage:
        • 200 V
        • 208 V
        • 230 V

      • Input Voltage Range: 200 V AC - 230 V AC
      • Output Voltage: 208 V AC

        • Management

      • Management:

        Protocols:

        • Web
        • SNMP
        • Telnet

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Form Factor: Tower
      • Placement: Side
      • Rack Height: 0U
      • Cord Length: 9.51 ft
      • Height: 72"
      • Width: 2.2"
      • Depth: 2"
      • Weight (Approximate): 14.93 lb

        • Miscellaneous

      • Package Contents:
      • Metered-by-Outlet Rack PDU
      • CAN port terminator
      • Installation guide
      • Locking input power cord
      • Rack mounting brackets
      • Safety guide
      • Serial configuration cable

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
