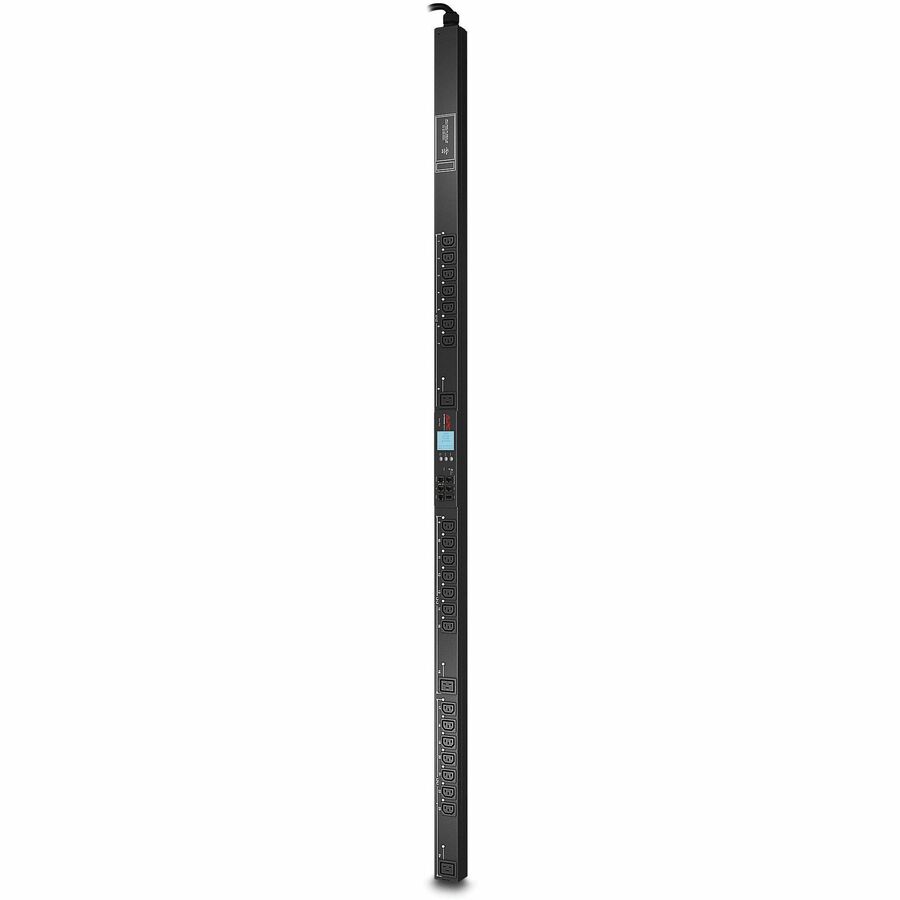

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 5.7kW, 208V, 21 C13 and 3 C19 outlet - AP8661

    • Direct Ship
    Product form
    • Schneider Electric SA

    APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 5.7kW, 208V, 21 C13 and 3 C19 outlet - AP8661

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8661 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Switched... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,429.69

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: KD3288
        Barcode: 0731304276999

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP8661
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Switched Rack
      • Product Series: AP8000
      • Product Model: AP8661
      • Product Name: Switched Rack AP8000 24-Outlets 5.7kW PDU
      • Marketing Information:

        APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager


      • Product Type: PDU

        • Technical Information

      • PDU Type: Switched
      • Plug/Connector Type: NEMA L21-20P
      • Receptacle Type:
        • IEC 60320 C19
        • IEC 60320 C13

      • Receptacle Detail:
        • 3 x IEC 60320 C19
        • 21 x IEC 60320 C13

        • Power Description

      • Input Voltage: 208 V
      • Output Voltage: 208 V AC
      • Power Rating (Watt): 5700 W

        • Management

      • Management:

        Protocols:

        • Web
        • SNMP
        • Telnet

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Placement: Side
      • Rack Height: 0U
      • Cord Length: 5.91 ft
      • Height: 72"
      • Width: 2.2"
      • Depth: 2"
      • Weight (Approximate): 15.74 lb

        • Miscellaneous

      • Package Contents:
      • Switched Rack AP8000 24-Outlets 5.7kW PDU
      • CAN port terminator
      • Installation guide
      • Rack mounting brackets
      • Safety guide
      • Serial configuration cable

      • Country of Origin: India
      • Environmentally Friendly: Yes
      • Environmental Compliance:
        • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
        • Restriction of Hazardous Substances (RoHS)

      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
