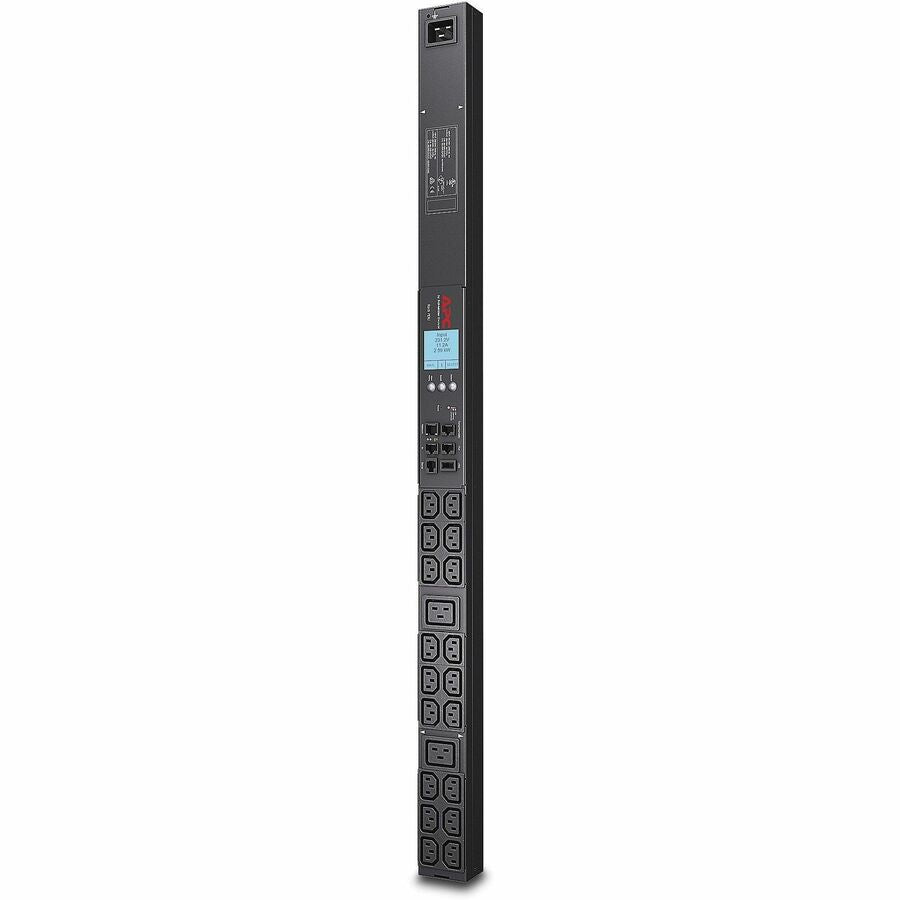

APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet - AP8858

    Product form
    • Schneider Electric SA

    APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet - AP8858

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8858 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: NetShelter... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $684.87

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: AP8858
        Barcode: 731304277026

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP8858
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: NetShelter
      • Product Series: Metered
      • Product Model: AP8858
      • Product Name: Metered Rack AP8858 20-Outlets PDU
      • Marketing Information:

        APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates


      • Product Type: PDU

        • Technical Information

      • PDU Type: Metered
      • Plug/Connector Type: IEC 60320 C20

        • Power Description

      • Input Voltage:
        • 200 V
        • 208 V
        • 230 V

      • Output Voltage:
        • 100 V AC
        • 200 V AC
        • 208 V AC
        • 230 V AC

        • Management

      • Management:

        Protocols:

        • SNMP
        • Telnet

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Placement: Side
      • Rack Height: 0U
      • Height: 35.5"
      • Width: 2.2"
      • Depth: 1.7"
      • Weight (Approximate): 6.46 lb

        • Miscellaneous

      • Package Contents:
      • Metered Rack AP8858 20-Outlets PDU
      • Installation guide
      • Rack mounting brackets
      • Safety guide
      • Serial configuration cable

      • Country of Origin: India
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
