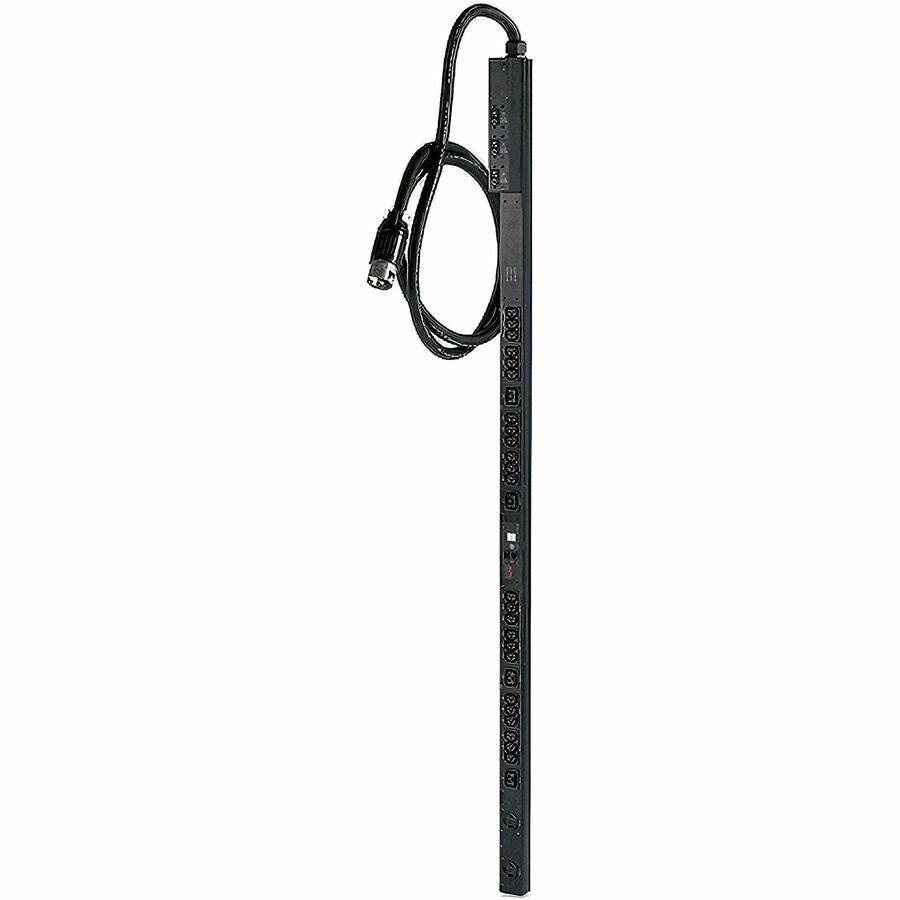

APC NetShelter Metered Rack PDU, 0U, 14.4kW, 208V, 24 C13, 4 C19, 2 NEMA L6-30R outlet, 10 ft cord - AP7899B

    Product form
    • Schneider Electric SA

    APC NetShelter Metered Rack PDU, 0U, 14.4kW, 208V, 24 C13, 4 C19, 2 NEMA L6-30R outlet, 10 ft cord - AP7899B

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP7899B Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Name: 30-Outlets... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,268.34

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 8V8952
        Barcode: 0731304331551

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP7899B
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Name: 30-Outlets PDU
      • Marketing Information:

        It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.


      • Product Type: PDU

        • Technical Information

      • PDU Type: Metered
      • Phase: Three Phase
      • Plug/Connector Type: CS8365
      • Plug/Connector Detail: 1 x CS8365
      • Receptacle Type:
        • IEC 60320 C19
        • NEMA L6-30R
        • IEC 60320 C13

      • Receptacle Detail:
        • 4 x IEC 60320 C19
        • 2 x NEMA L6-30R
        • 24 x IEC 60320 C13

      • Protection Type: Overload Protection

        • Power Description

      • Input Voltage: 208 V
      • Output Voltage: 208 V AC
      • Power Rating (Watt): 14.40 kW
      • Input Current: 50 A

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Placement: Side
      • Rack Height: 0U
      • Cord Length: 9.84 ft
      • Height: 70"
      • Width: 2.2"
      • Depth: 3.7"
      • Weight (Approximate): 22.84 lb

        • Miscellaneous

      • Package Contents:
      • 30-Outlets PDU
      • Cord retention bracket(s)
      • Documentation CD
      • Installation guide
      • Rack mounting brackets
      • RS-232 configuration cable
      • Toolless mounting kit

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
