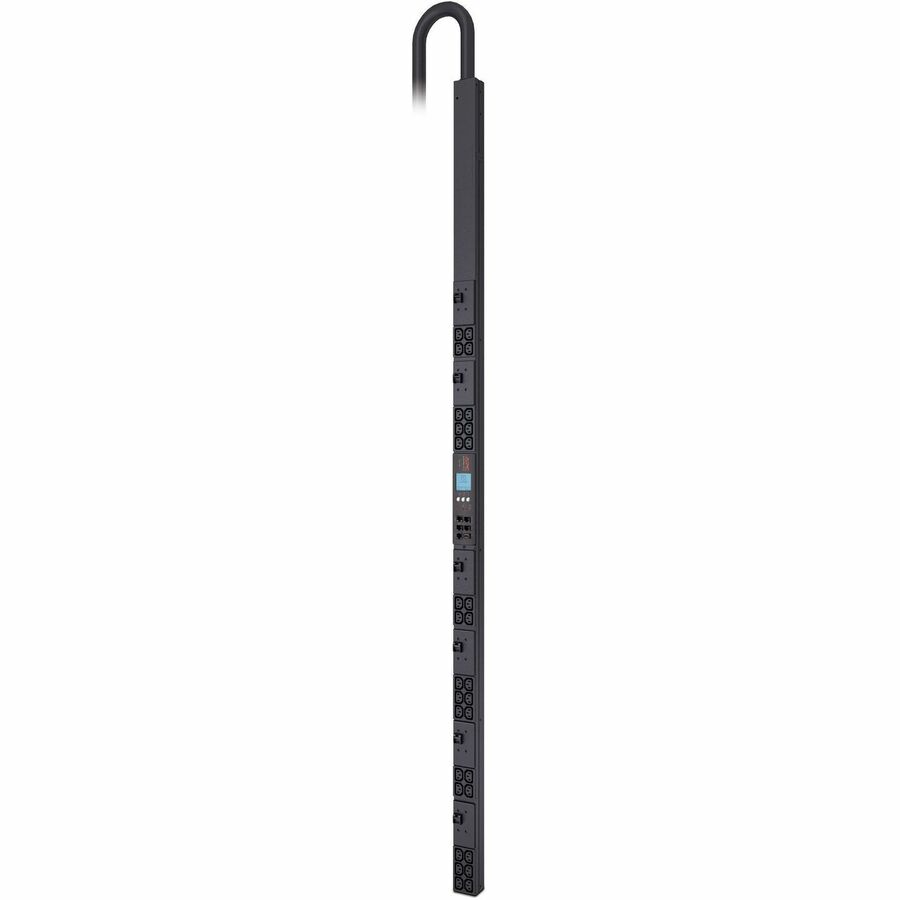

Name: APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets - AP8867
Brand: Schneider Electric SA
SKU: AP8867
Price: 2972.92 USD

APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets - AP8867

Product form

Schneider Electric SA

APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets - AP8867

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8867 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Metered... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$2,972.92

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: AP8867
Barcode: 731304289913

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: AP8867

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC

Product Line: Metered Rack

Product Name: Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13

Marketing Information: The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty

Technical Information

PDU Type: Metered

Plug/Connector Type: IEC 60309 60A 3P+PE

Receptacle Type: IEC 60320 C13

Receptacle Detail: 30 x IEC 60320 C13

Protection Type: Overload Protection

Power Description

Input Voltage: 208 V

Output Voltage: 208 V AC

Power Rating (VA): 17.20 kVA

Management

Management:

Protocols:

SNMP
Telnet
Web

Physical Characteristics

Color Family: Black

Product Color: Black

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Form Factor: Tower

Placement: Side

Rack Height: 0U

Cord Length: 5.97 ft

Height: 72"

Width: 2.2"

Depth: 2"

Weight (Approximate): 22.49 lb

Miscellaneous

Package Contents:

Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13

Installation guide

Rack mounting brackets

Safety guide

Serial configuration cable

Country of Origin: India

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Single-use Plastic (SUP) Free Shipping Packaging: No

Warranty

Limited Warranty: 2 Year
