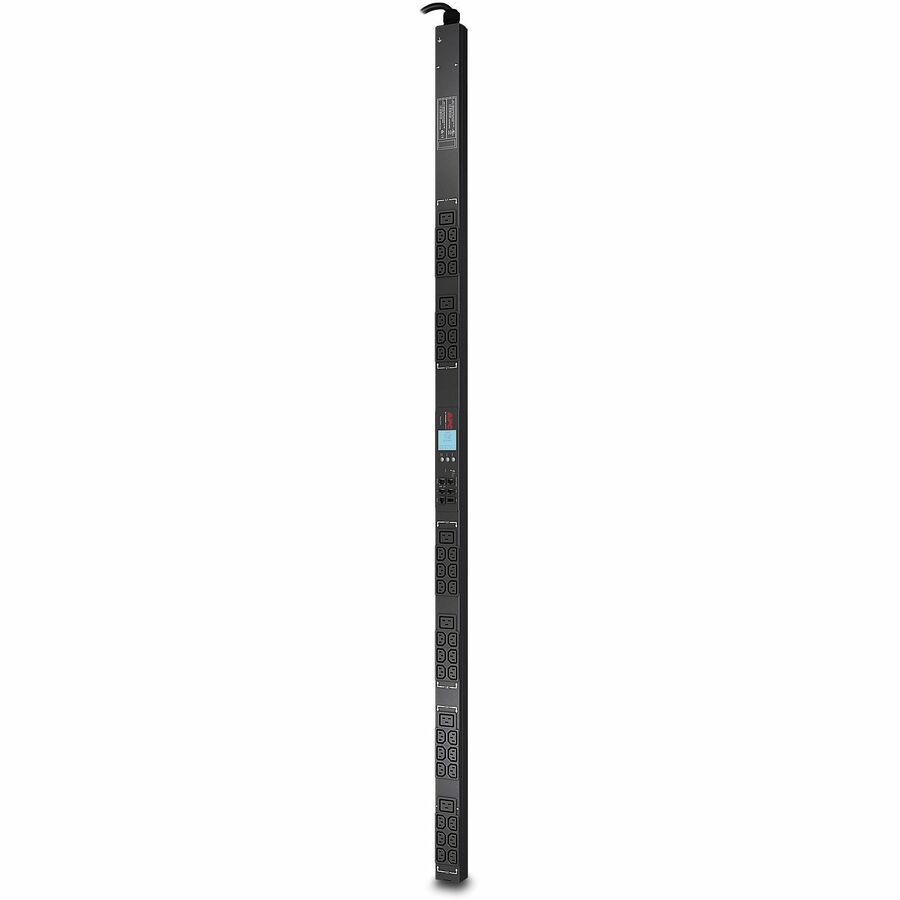

Name: APC NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and 6 C19 outlets, IEC 309 3P+N+PE cord - AP8881
Brand: Schneider Electric SA
SKU: DM0357
Price: 1680.32 USD

APC NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and 6 C19 outlets, IEC 309 3P+N+PE cord - AP8881

Product form

Schneider Electric SA

APC NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and 6 C19 outlets, IEC 309 3P+N+PE cord - AP8881

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8881 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: NetShelter... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$1,680.32

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: DM0357
Barcode: 0731304277071

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: AP8881

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC

Product Line: NetShelter

Product Series: Metered

Product Model: AP8881

Product Name: Metered AP8881 42-Outlets PDU

Marketing Information:

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates

Product Type: PDU

Technical Information

PDU Type: Metered

Plug/Connector Type:

IEC 60309 16A 3P+N+PE
IEC 60309 20A 3P+N+PE

Power Description

Input Voltage: 400 V

Output Voltage: 230 V AC

Management

Management:

Web
SNMP
Telnet

Physical Characteristics

Color Family: Black

Product Color: Black

Mount Type: Rack-mountable

Rack Height: 0U

Cord Length: 5.97 ft

Height: 70.5"

Width: 2.2"

Depth: 1.7"

Weight (Approximate): 14.07 lb

Miscellaneous

Package Contents:

Metered AP8881 42-Outlets PDU

Installation guide

Rack mounting brackets

Safety guide

Serial configuration cable

Country of Origin: India

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Single-use Plastic (SUP) Free Shipping Packaging: No

Warranty

Limited Warranty: 2 Year
