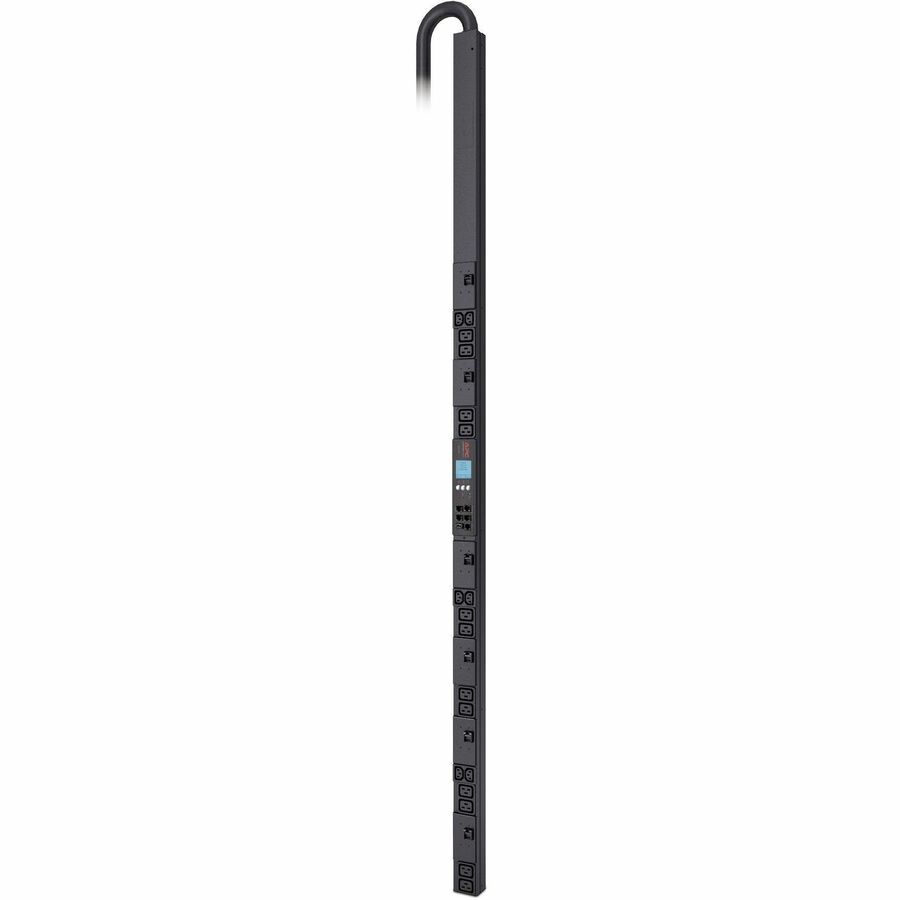

Name: APC NetShelter Metered Rack PDU, 2G, 0U, 17.2kW, 208V, 6 C13 and 12 C19 outlets - AP8866
Brand: Schneider Electric SA
SKU: AP8866
Price: 2972.92 USD

APC NetShelter Metered Rack PDU, 2G, 0U, 17.2kW, 208V, 6 C13 and 12 C19 outlets - AP8866

Product form

Schneider Electric SA

APC NetShelter Metered Rack PDU, 2G, 0U, 17.2kW, 208V, 6 C13 and 12 C19 outlets - AP8866

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8866 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Metered... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$2,972.92

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: AP8866
Barcode: 731304289906

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: AP8866

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC

Product Line: Metered Rack

Product Name: Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19

Marketing Information: APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable.

Technical Information

PDU Type: Metered

Plug/Connector Type: IEC 60309 60A 3P+PE

Receptacle Type:

IEC 60320 C13
IEC 60320 C19

Receptacle Detail:

6 x IEC 60320 C13
12 x IEC 60320 C19

Protection Type: Overload Protection

Power Description

Input Voltage: 208 V

Output Voltage: 208 V AC

Power Rating (VA): 17.30 kVA

Management

Management:

Protocols:

SNMP
Telnet
Web

Physical Characteristics

Color Family: Black

Product Color: Black

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Placement: Side

Rack Height: 0U

Cord Length: 5.97 ft

Height: 72"

Width: 2.2"

Depth: 2"

Weight (Approximate): 20.94 lb

Miscellaneous

Package Contents:

Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19

Installation guide

Rack mounting brackets

Safety guide

Serial configuration cable

Country of Origin: India

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Single-use Plastic (SUP) Free Shipping Packaging: No

Warranty

Limited Warranty: 2 Year
