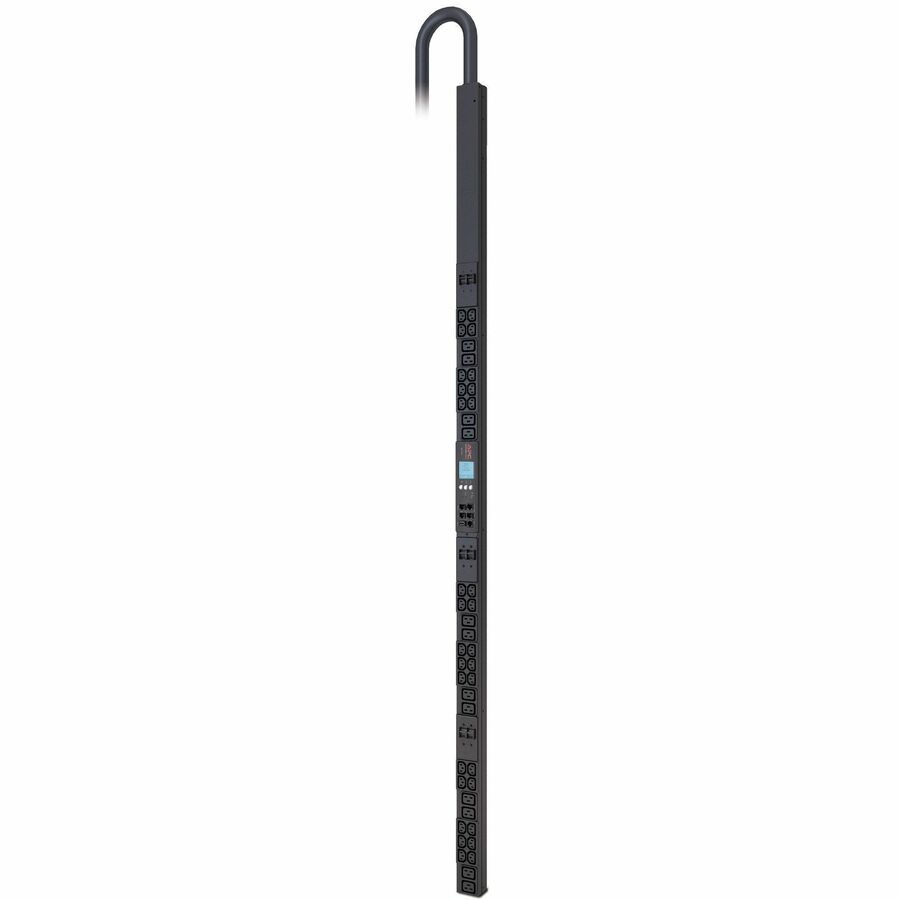

APC NetShelter Metered Rack PDU, 2G, 0U, 17.3kW, 240V, 30 C13 and 12 C19 outlets - AP8887

    Product form
    • Schneider Electric SA

    APC NetShelter Metered Rack PDU, 2G, 0U, 17.3kW, 240V, 30 C13 and 12 C19 outlets - AP8887

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8887 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Metered... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,121.22

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: PR7224
        Barcode: 0731304292432

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP8887
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Metered Rack
      • Product Name: Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
      • Marketing Information:

        APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency


      • Packaged Quantity: 1 Each
      • Product Type: PDU

        • Technical Information

      • PDU Type: Metered
      • Plug/Connector Type: IEC 60309 30A 3P+N+E
      • Receptacle Type:
        • IEC 60320 C13
        • IEC 60320 C19

      • Receptacle Detail:
        • 30 x IEC 60320 C13
        • 12 x IEC 60320 C19

      • Protection Type: Overload Protection

        • Power Description

      • Input Voltage: 400 V
      • Output Voltage: 240 V AC
      • Power Rating (VA): 17.30 kVA

        • Management

      • Management:

        Protocols:

        • SNMP
        • Telnet
        • Web

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Form Factor: Tower
      • Placement: Side
      • Rack Height: 0U
      • Cord Length: 5.97 ft
      • Height: 72"
      • Width: 2.2"
      • Depth: 2"
      • Weight (Approximate): 21.16 lb

        • Miscellaneous

      • Package Contents:
      • Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
      • Installation guide
      • Rack mounting brackets
      • Safety guide
      • Serial configuration cable

      • Country of Origin: India
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
