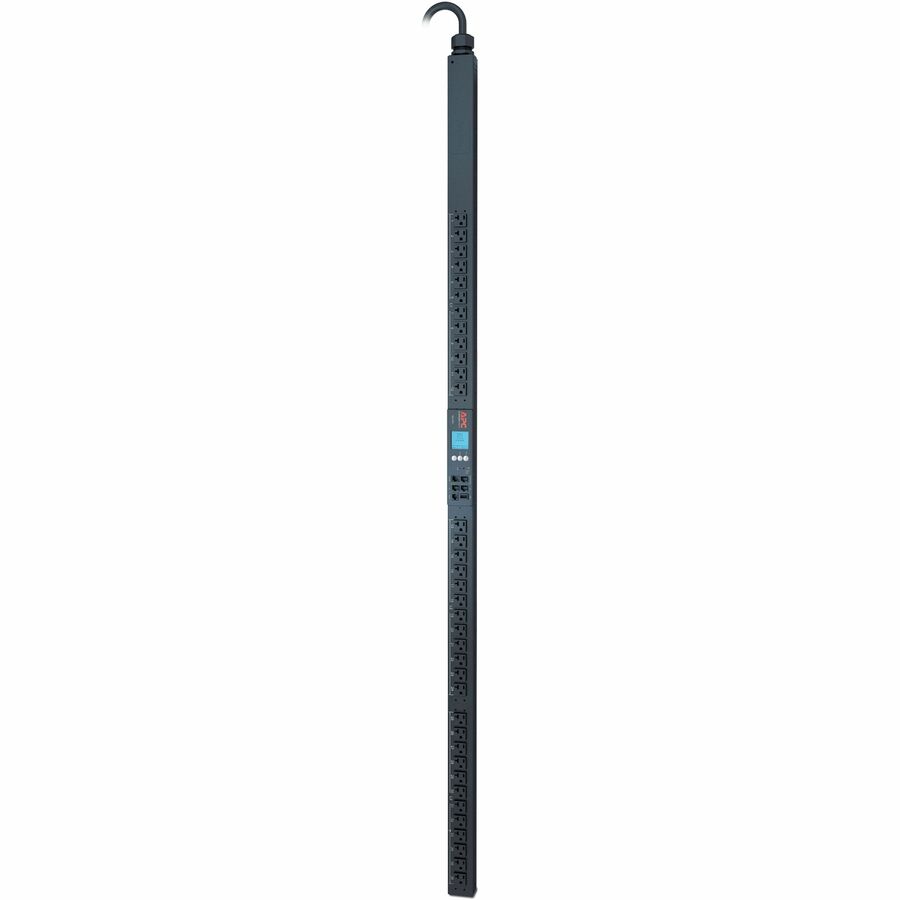

APC NetShelter Metered Rack PDU, 2G, 0U, 20A,120/208V, 3 phase, 36 NEMA 5-20R outlets - AP8862

    Product form
    • Schneider Electric SA

    APC NetShelter Metered Rack PDU, 2G, 0U, 20A,120/208V, 3 phase, 36 NEMA 5-20R outlets - AP8862

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8862 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Name: Metered... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $893.28

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: VZ3318
        Barcode: 0731304307488

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP8862
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Name: Metered Rack PDU
      • Marketing Information:

        APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.


      • Packaged Quantity: 1 Each
      • Product Type: PDU

        • Technical Information

      • PDU Type: Metered
      • Plug/Connector Type: NEMA L21-20P
      • Receptacle Type: NEMA 5-20R
      • Receptacle Detail: 36 x NEMA 5-20R
      • Protection Type: Circuit Protection

        • Power Description

      • Input Voltage: 208 V
      • Output Voltage: 120 V AC
      • Power Rating (VA): 5760 VA
      • Input Current: 20 A

        • Management

      • Management:
        • Web
        • SNMP
        • Telnet

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Placement: Side
      • Rack Height: 0U
      • Cord Length: 5.97 ft
      • Height: 70.5"
      • Width: 2.2"
      • Depth: 1.7"
      • Weight (Approximate): 13.32 lb

        • Miscellaneous

      • Package Contents:
      • Metered Rack PDU
      • Installation guide
      • Rack mounting brackets
      • Safety guide
      • Serial configuration cable

      • Country of Origin: India
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
