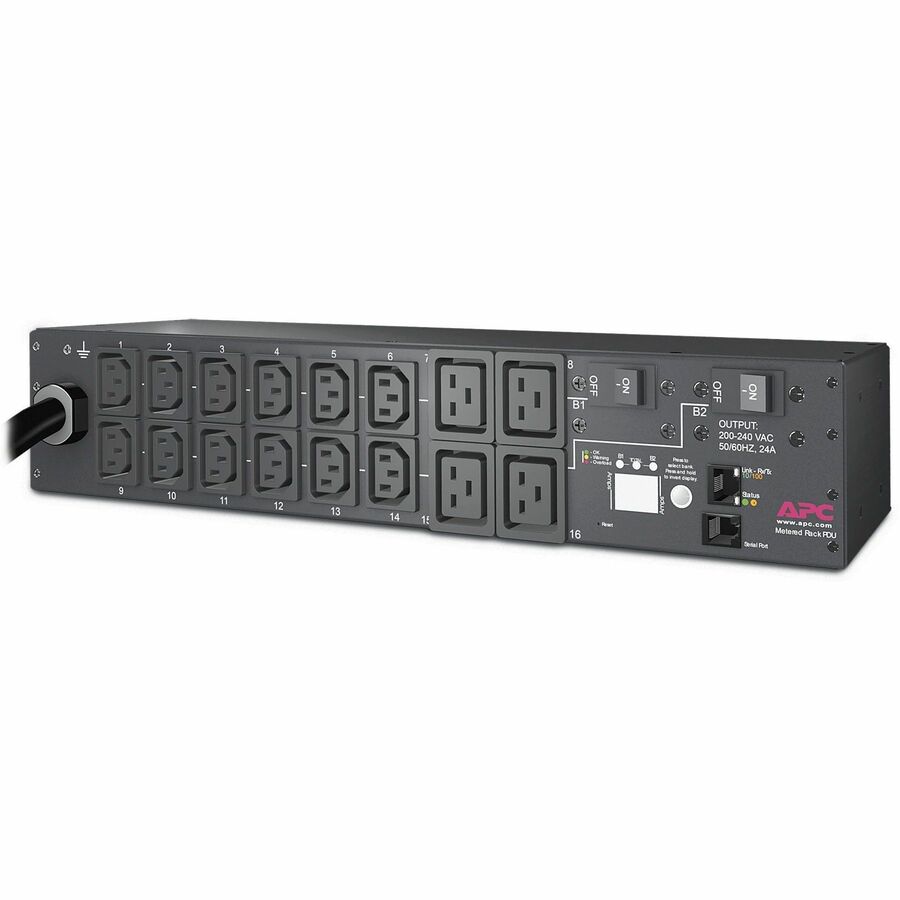

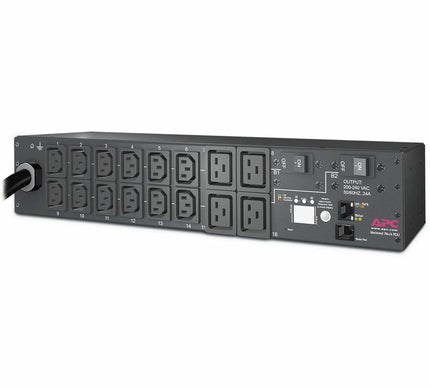

APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet - AP7811B

    Product form
    • Schneider Electric SA

    APC NetShelter Metered Rack PDU, 2U, 5.0kW, 208V, 30A, 12 C13 and 4 C19 outlet - AP7811B

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP7811B Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Metered... Read more

      11 in stock Order today, shipped 1-2 business days

      $1,088.78

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: AP7811B
          Barcode: 731304331490

          Size chart

          General Information

        • Manufacturer: Schneider Electric SA
        • Manufacturer Part Number: AP7811B
        • Manufacturer Website Address: http://www.schneider-electric.com
        • Brand Name: APC
        • Product Line: Metered Rack
        • Product Name: Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
        • Marketing Information:

          APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles AP7811B offers real-time remote monitoring and user-defined alarms which helps prevent potential circuit overloads that can cause accidental power loss to critical equipment Easily access, configure, and monitor this metered PDU from remote locations A network management interface provides standards-based management via Web, SNMP, and Command Line Interface This Metered PDU from APC provides (12) IEC C13 and (4) IEC C19 outlets to supply power to rack equipment Active current measurements (amps), User-customizable alarms and warnings and Embedded log memory to record/review/report historic data to local user An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH) Easy to mount this Horizontal PDU in racks or enclosures and occupies 2U of rack Space Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

          More from the Manufacturer


        • Product Type: PDU

          • Technical Information

        • PDU Type: Metered
        • Plug/Connector Type: NEMA L6-30P
        • Plug/Connector Detail: 1
        • Receptacle Type:
          • IEC 60320 C13
          • IEC 60320 C19

        • Receptacle Detail:
          • 12 x IEC 60320 C13
          • 4 x IEC 60320 C19

          • Power Description

        • Input Voltage:
          • 200 V
          • 208 V
          • 230 V

        • Output Voltage: 208 V AC
        • Input Current: 30 A

          • Physical Characteristics

        • Mounting Orientation: Horizontal
        • Mount Type: Rack-mountable
        • Placement:
          • Front
          • Rear

        • Rack Height: 2U
        • Cord Length: 11.98 ft
        • Height: 3.5"
        • Width: 17.5"
        • Depth: 4.4"
        • Weight (Approximate): 7.41 lb

          • Miscellaneous

        • Package Contents:
        • Rack PDU, Metered, 2U, 30A, 208V, (12) C13s & (4) C19
        • Cord retention bracket(s)
        • Installation guide
        • Rack mounting brackets
        • User manual

        • Country of Origin: India
        • Environmentally Friendly: Yes
        • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
        • Single-use Plastic (SUP) Free Shipping Packaging: No

          • Warranty

        • Limited Warranty: 2 Year
          •
