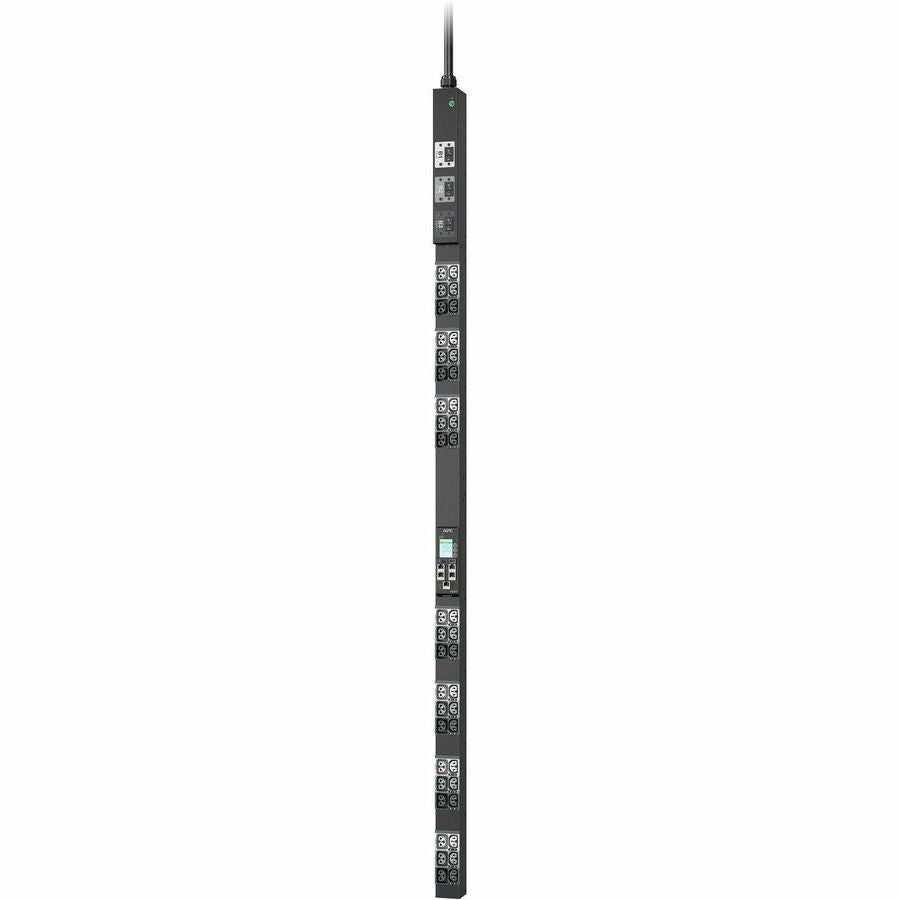

Name: APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet - APDU11351ME
Brand: Schneider Electric SA
SKU: APDU11351ME
Price: 1960.87 USD

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet - APDU11351ME

Product form

Schneider Electric SA

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6kW, 208V 30A, L21-30P, 42 Outlet - APDU11351ME

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: APDU11351ME Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: NetShelter... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$1,960.87

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: APDU11351ME
Barcode: 731304752752

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: APDU11351ME

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC

Product Line: NetShelter

Product Name: NetShelter 42-Outlets PDU

Marketing Information:

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model's input power cord is L21-30P and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets.

Technical Information

PDU Type: Metered

Phase: Three Phase

Plug/Connector Type: NEMA L21-30P

Receptacle Type:

IEC 60320 C13/C15/C19/C21
IEC 60320 C13/C15

Receptacle Detail:

21 x IEC 60320 C13/C15/C19/C21
21 x IEC 60320 C13/C15

Load Capacity (Watt): 8600 W

Power Description

Input Voltage: 208 V AC

Output Voltage: 208 V AC

Power Source: Power Supply

Input Current: 30 A

Management

Management:

NMC3
Web
SNMP
CLI

Interfaces/Ports

Network (RJ-45): Yes

Physical Characteristics

Color Family: Black

Product Color: Black

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Form Factor: Rack

Placement: Side

Rack Height: 0U

Cord Length: 9.84 ft

Height: 70.1"

Width: 2.2"

Depth: 3"

Weight (Approximate): 16.98 lb

Environmental Conditions

Maximum Operating Temperature: 140°F (60°C)

Miscellaneous

Application/Usage:

IT Equipment
Server/Network Rack
Data Center

TAA Compliant: No

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (China RoHS)

Single-use Plastic (SUP) Free Shipping Packaging: No

Warranty

Limited Warranty: 3 Year

Size chart
