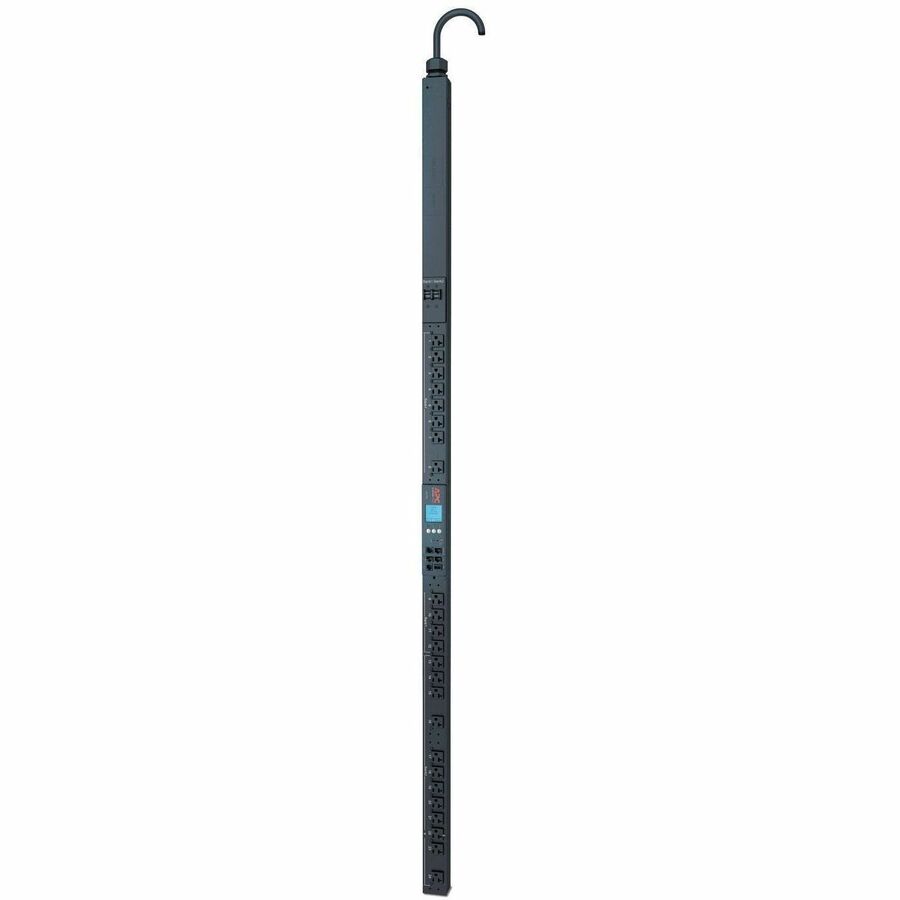

The APC Metered-by-Outlet with Switching Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8632US offers real-time remote monitoring of each individual outlet combined with remote on/off outlet switching control to help IT professionals with the necessary tools for complete control of their power distribution. The 0U PDU includes a NEMA L5-30P input plug with 3m (9.84 ft) cord, and (24) NEMA 5-20R output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity. The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads. The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH). The rack PDU comes with a standard two-year warranty. The metered PDU is compliant with the Trade Agreements Act (TAA) requirements.

More from the Manufacturer

• 100 V AC
• 120 V AC

• Network Management Card
• Web
• SNMP

• IT Equipment
• Data Center
• Server Rack/Cabinet

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
