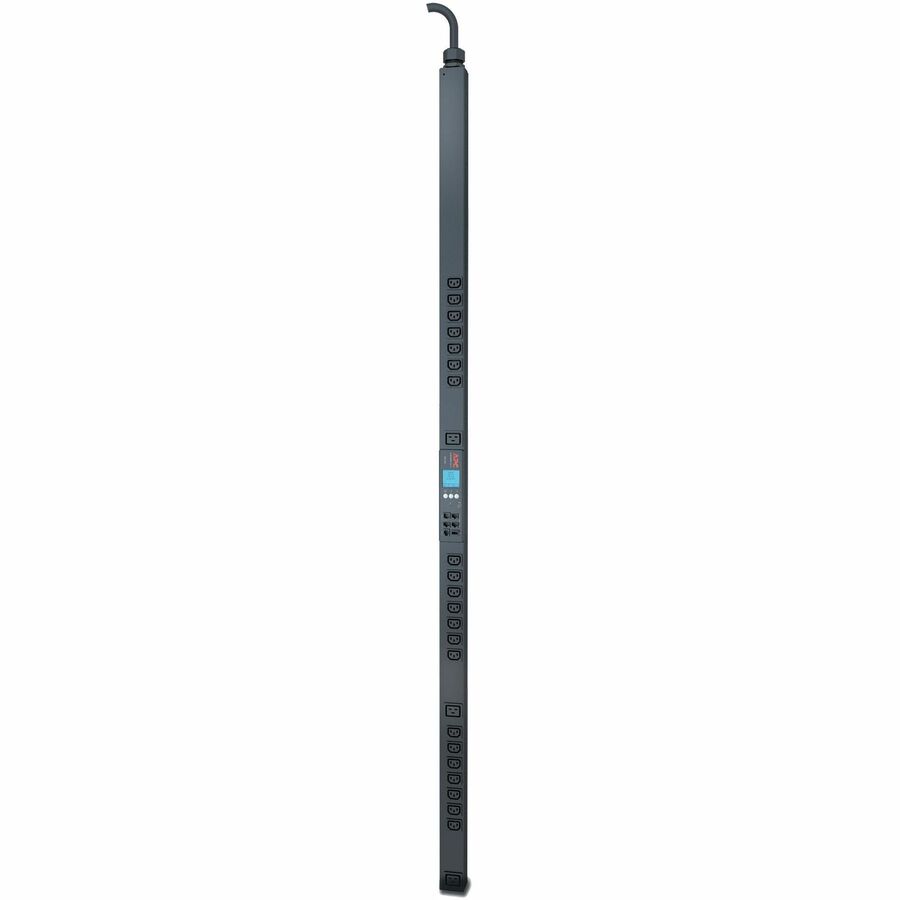

APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 - AP8481

    Product form
    • Schneider Electric SA

    APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 - AP8481

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: AP8481 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Name: Metered-by-Outlet... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,506.20

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: VZ3325
        Barcode: 0731304317609

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: AP8481
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Name: Metered-by-Outlet Rack PDU
      • Marketing Information:

        APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency


      • Product Type: PDU

        • Technical Information

      • PDU Type: Metered-by-Outlet
      • Plug/Connector Type:
        • IEC 60309 16A 3P+N+PE
        • IEC 60309 20A 3P+N+PE

      • Receptacle Type:
        • IEC 60320 C13
        • IEC 60320 C19

      • Receptacle Detail:
        • 21 x IEC 60320 C13
        • 3 x IEC 60320 C19

        • Power Description

      • Input Voltage: 400 V
      • Output Voltage: 230 V AC
      • Power Rating (Watt): 11 kW
      • Input Current: 16 A

        • Management

      • Management:
        • Web
        • SNMP
        • Telnet

        • Physical Characteristics

      • Color Family: Black
      • Product Color: Black
      • Mounting Orientation: Vertical
      • Mount Type: Rack-mountable
      • Placement: Side
      • Rack Height: 0U
      • Cord Length: 5.91 ft
      • Height: 72"
      • Width: 2.2"
      • Depth: 2"
      • Weight (Approximate): 18.10 lb

        • Miscellaneous

      • Package Contents:
      • Metered-by-Outlet Rack PDU
      • CAN port terminator
      • Installation guide
      • Rack mounting brackets
      • Safety guide
      • Serial configuration cable

      • Country of Origin: India
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
