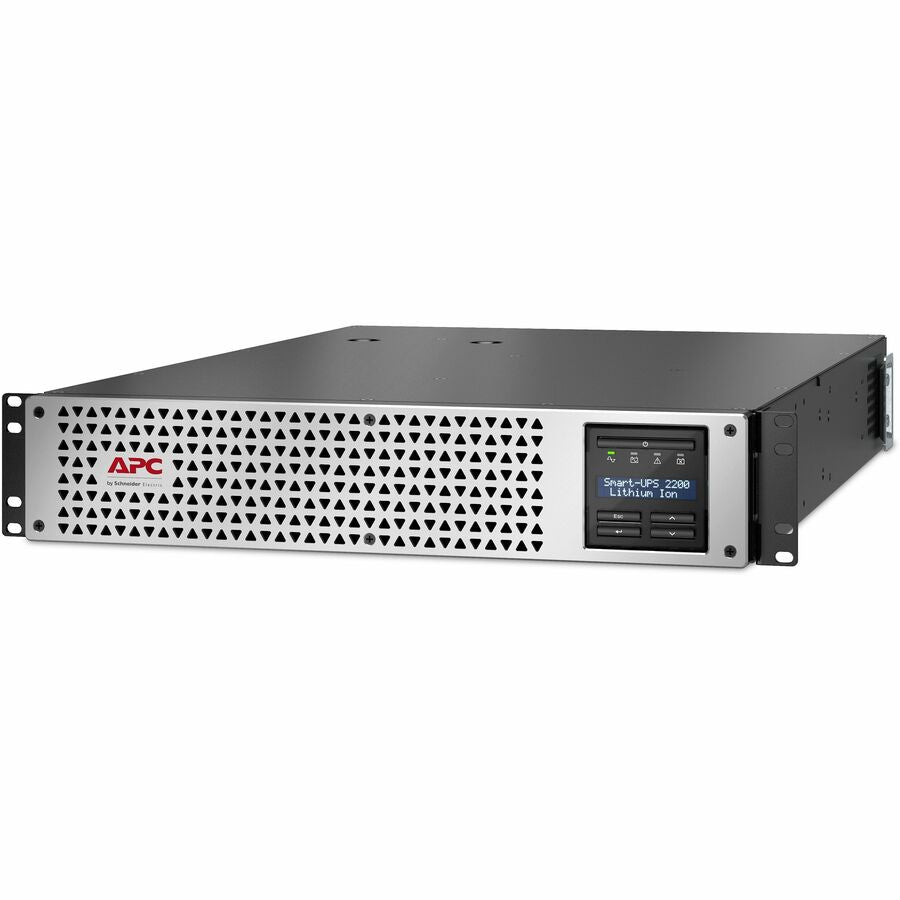

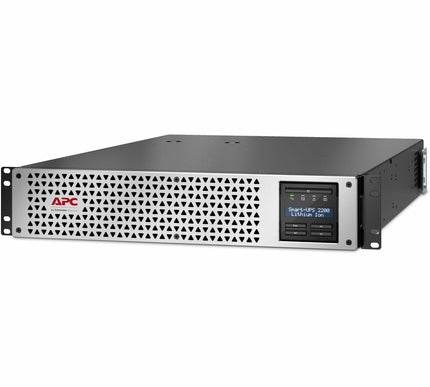

APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-20R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMTL2K2RM2UCL

    Product form
    • Schneider Electric SA

    APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-20R+6x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMTL2K2RM2UCL

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SMTL2K2RM2UCL Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $3,239.86

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SMTL2K2RM2UCL
        Barcode: 731304450740

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SMTL2K2RM2UCL
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS
      • Product Name: Smart-UPS 2200VA Rack-mountable UPS
      • Marketing Information:

        This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6 NEMA 5-20R and 1 NEMA L5-20R outlets. It offers remote cloud-based UPS monitoring that is accessible from any internet connected device. Feature availability varies with terms of use. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

        More from the Manufacturer


      • Packaged Quantity: 1
      • Product Type: Line-interactive UPS
      • Technical Information

      • AVR: Yes
      • Plug/Connector Type: NEMA L5-20P
      • Receptacle Type: NEMA L5-20P
      • Receptacle Detail:
        • 1 x NEMA L5-20R
        • 6 x NEMA 5-20R

      • Cord Length: 8 ft
      • Transfer Time: 10 ms
      • Phase: Single Phase
      • Application/Usage:
        • IT
        • Network
        • Business
        • Critical System
        • Server
        • Virtual Machine
        • Hyperconverged Infrastructure (HCI)
        • POS
        • Router
        • Switch
        • Hub

      • Power Description

      • Load Capacity (VA): 1920 VA
      • Load Capacity (Watt): 1920 W
      • Input Voltage:
        • 120 V AC
        • 110 V AC

      • Input Voltage Range:
        • 75 V AC -154 V AC
        • 82 V AC - 143 V AC

      • Output Voltage:
        • 120 V AC
        • 110 V AC

      • Input Frequency: 60 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Sine Wave
      • Surge Energy Rating: 530 J
      • Display & Graphics

      • Display: LCD/LED
      • Management

      • Network Management: SmartConnect
      • Alarm:
        • On Battery
        • Low Battery
        • Overload

      • Controls/Indicators

      • Status Indicators:

        LED Indicators:

        • On Line
        • On Battery
        • Replace Battery
        • Overload

      • Interfaces/Ports

      • USB: Yes
      • EPO Port: Yes
      • Battery Information

      • Number of Batteries: 1
      • Battery Chemistry: Lithium Ion (Li-Ion)
      • Battery Energy: 1209.6 kJ
      • Backup/Run Time (Full Load): 7.80 Minute
      • Backup/Run Time (Half Load): 16.40 Minute
      • Battery Life: 10 Year
      • Typical Battery Recharge Time: 2 Hour
      • Environmental Conditions

      • Maximum Operating Elevation: 10000 ft
      • Maximum Storage Elevation: 50000 ft
      • Storage Temperature: 5°F (-15°C) - 113°F (45°C)
      • Maximum Operating Temperature: 104°F (40°C)
      • Sound Emission: 55 dB
      • Thermal Dissipation: 63.01 W
      • Physical Characteristics

      • Product Color:
        • Black
        • Silver

      • Height: 3.39"
      • Width: 17.01"
      • Depth: 26.89"
      • Rack Height: 2U
      • Form Factor: Rack-mountable
      • Weight (Approximate): 70.33 lb
      • Miscellaneous

      • Package Contents:
      • Smart-UPS 2200VA Rack-mountable UPS
      • Rack Mounting brackets
      • Rack Mounting support rails
      • Screw
      • Washer
      • USB cable
      • Ethernet patch cable

      • Software Included: Powerchute Serial Edition
      • Energy Star: Yes
      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No
      • Warranty

      • Limited Warranty: 5 Year
