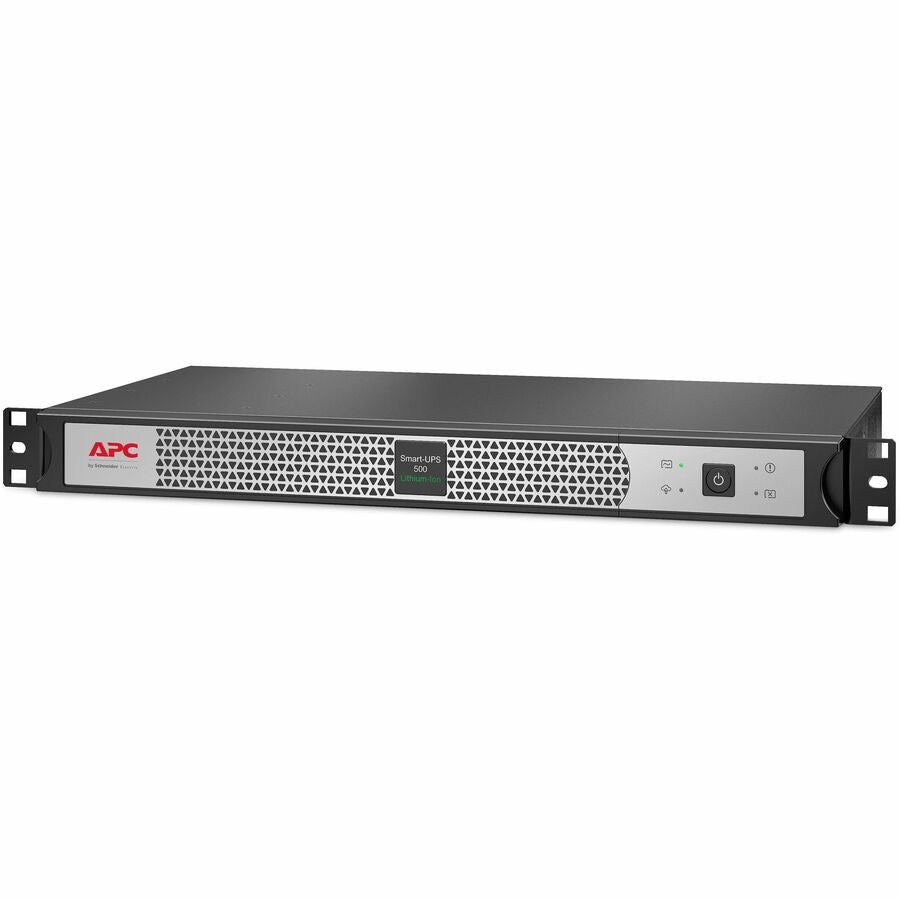

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth - SCL500RM1UC

    Product form
    • Schneider Electric SA

    APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth - SCL500RM1UC

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SCL500RM1UC Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      148 in stock Order today, shipped 1-2 business days

      $463.88

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: SCL500RM1UC
          Barcode: 731304344551

          Size chart

          General Information

        • Manufacturer: Schneider Electric SA
        • Manufacturer Part Number: SCL500RM1UC
        • Manufacturer Website Address: http://www.schneider-electric.com
        • Brand Name: APC
        • Product Line: Smart-UPS
        • Product Name: Smart-UPS 500VA Rack/Floor Mountable UPS
        • Marketing Information:

          This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

          More from the Manufacturer


        • Packaged Quantity: 1 Each
        • Product Type: Line-interactive UPS

          • Technical Information

        • AVR: Yes
        • Plug/Connector Type: NEMA 5-15P
        • Receptacle Type: NEMA 5-15P
        • Receptacle Detail: 4 x NEMA 5-15R
        • Number of Battery & Surge Outlets: 4
        • Dataline Protection: RJ-45
        • Cord Length: 6 ft
        • Transfer Time: 10 ms
        • Phase: Single Phase
        • Application/Usage:
          • Network
          • Server
          • POS Terminal
          • Router
          • Switch
          • Network Hub
          • Equipment
          • Business
          • Storage
          • Security System
          • Communication System
          • Voice/Data Network

          • Power Description

        • Load Capacity (VA): 500 VA
        • Load Capacity (Watt): 400 W
        • Input Voltage: 120 V AC
        • Input Voltage Range: 92 V AC - 139 V AC
        • Output Voltage: 120 V AC
        • Input Frequency: 63 Hz
        • Output Frequency: 60 Hz
        • Waveform Type: Sine Wave
        • Surge Energy Rating: 680 J

          • Management

        • Network Management: SmartConnect
        • Alarm:
          • On Battery
          • Low Battery
          • Configurable Delay

          • Controls/Indicators

        • Status Indicators: LED Display

          • Interfaces/Ports

        • Serial Port: Yes
        • Network (RJ-45): Yes
        • EPO Port: Yes
        • USB (HID Compliant) Port: Yes

          • Battery Information

        • Battery Characteristics: Valve-regulated
        • Battery Chemistry: Lithium Ion (Li-Ion)
        • Backup/Run Time (Full Load): 2.70 Minute
        • Backup/Run Time (Half Load): 6.30 Minute
        • Hot Swappable: Yes
        • Typical Battery Recharge Time: 3 Hour
        • Replaceable Battery: Yes

          • Environmental Conditions

        • Maximum Operating Elevation: 6561 ft
        • Maximum Storage Elevation: 49212 ft
        • Storage Temperature: 5°F (-15°C) - 113°F (45°C)
        • Operating Humidity: 10% - 90%
        • Storage Relative Humidity: 10% - 90%
        • Maximum Operating Temperature: 104°F (40°C)
        • Sound Emission (A-Weighted): 45 dB(A)

          • Physical Characteristics

        • Product Color:
          • Black
          • Silver

        • Height: 1.73"
        • Width: 17.01"
        • Depth: 9.13"
        • Rack Height: 1U
        • Form Factor: Rack-mountable
        • Weight (Approximate): 9.22 lb

          • Miscellaneous

        • Package Contents:
        • Smart-UPS 500VA Rack/Floor Mountable UPS
        • CD with software
        • Documentation CD
        • Installation guide
        • Rack mounting support rails
        • USB cable

        • Software Included: Powerchute Serial Edition
        • Energy Star: Yes
        • Country of Origin: Philippines
        • Environmentally Friendly: Yes
        • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
        • Single-use Plastic (SUP) Free Shipping Packaging: No

          • Warranty

        • Limited Warranty: 5 Year
          •
