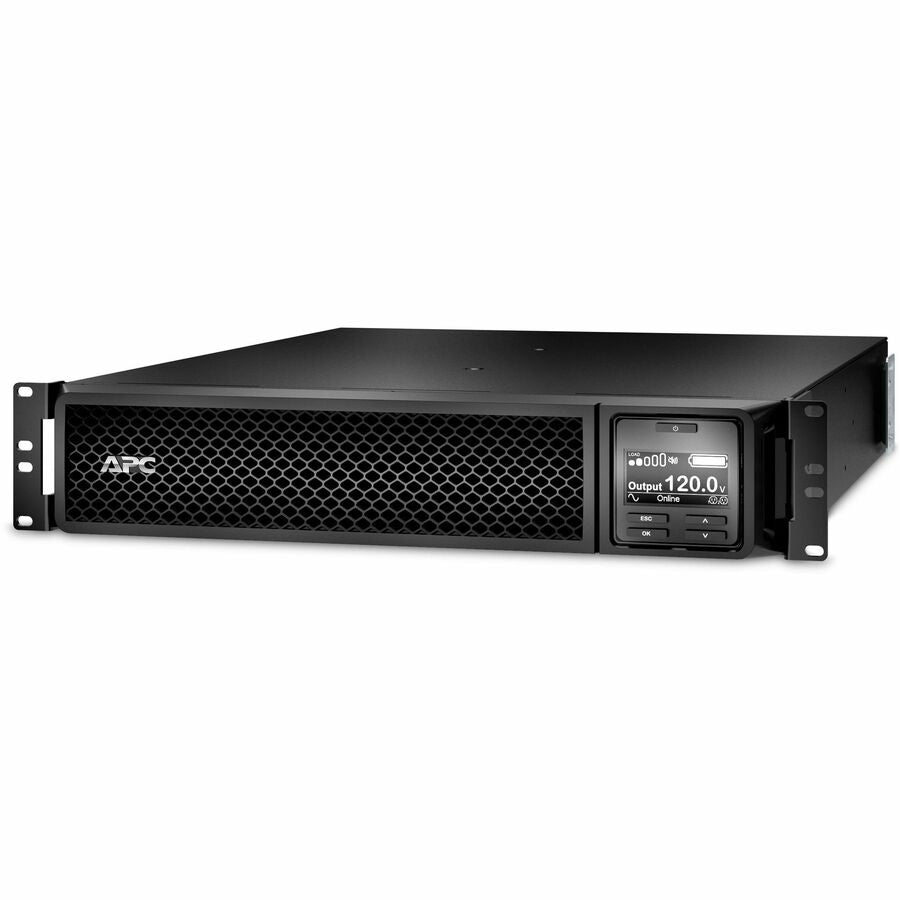

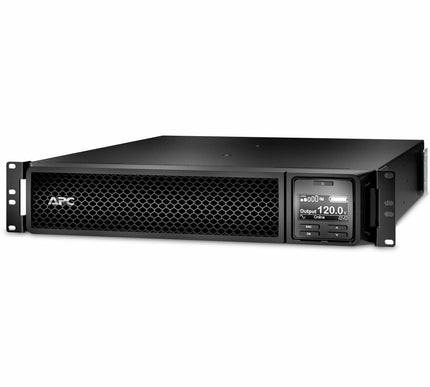

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT2200RMXLA

    Product form
    • Schneider Electric SA

    APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit - SRT2200RMXLA

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SRT2200RMXLA Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,126.39

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SRT2200RMXLA
        Barcode: 731304323051

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SRT2200RMXLA
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS
      • Product Name: Smart-UPS SRT 2200VA RM 120V
      • Marketing Information:

        This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

        More from the Manufacturer


      • Product Type: Double Conversion Online UPS

        • Technical Information

      • Plug/Connector Type: NEMA 5-20P
      • Receptacle Type: NEMA 5-20P
      • Receptacle Detail:
        • 1 x NEMA L5-20R
        • 6 x NEMA 5-20R

      • Number of Battery & Surge Outlets: 7
      • Cord Length: 5.91 ft
      • Phase: Single Phase
      • Application/Usage:
        • Server
        • Network Workstation

        • Power Description

      • Load Capacity (VA): 2200 VA
      • Load Capacity (Watt): 1800 W
      • Input Voltage: 120 V AC
      • Output Voltage: 120 V AC
      • Input Frequency: 70 Hz
      • Waveform Type: Sine Wave
      • Surge Energy Rating: 340 J

        • Management

      • Network Management: SmartSlot

        • Controls/Indicators

      • Status Indicators: LCD Display

        • Interfaces/Ports

      • EPO Port: Yes

        • Battery Information

      • DC System Voltage: 72 V DC
      • Number of Batteries: 1
      • Battery Chemistry: Lead Acid
      • Battery Energy: 1101.6 kJ
      • Battery Life: 5 Year
      • Hot Swappable: Yes
      • Typical Battery Recharge Time: 3 Hour
      • Replaceable Battery: Yes

        • Environmental Conditions

      • Maximum Operating Elevation: 10000 ft
      • Maximum Storage Elevation: 50000 ft
      • Storage Temperature: -4°F (-20°C) - 122°F (50°C)
      • Storage Relative Humidity: 0% - 95%
      • Maximum Operating Temperature: 104°F (40°C)
      • Sound Emission (A-Weighted): 55 dB(A)
      • Thermal Dissipation: 156.79 W

        • Physical Characteristics

      • Product Color: Black
      • Height: 3.35"
      • Width: 17.01"
      • Depth: 22.99"
      • Rack Height: 2U
      • Form Factor: Rack-mountable
      • Weight (Approximate): 55.01 lb

        • Miscellaneous

      • Package Contents:
      • Smart-UPS SRT 2200VA RM 120V
      • CD with software
      • Documentation CD
      • Installation guide
      • Rack mounting brackets
      • Rack mounting hardware
      • Rack mounting support rails
      • USB cable
      • Warranty card

      • Software Included: Powerchute Serial Edition
      • Energy Star: Yes
      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Energy Efficiency Certification: ENERGY STAR 2.0
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 3 Year
      • Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
        •
