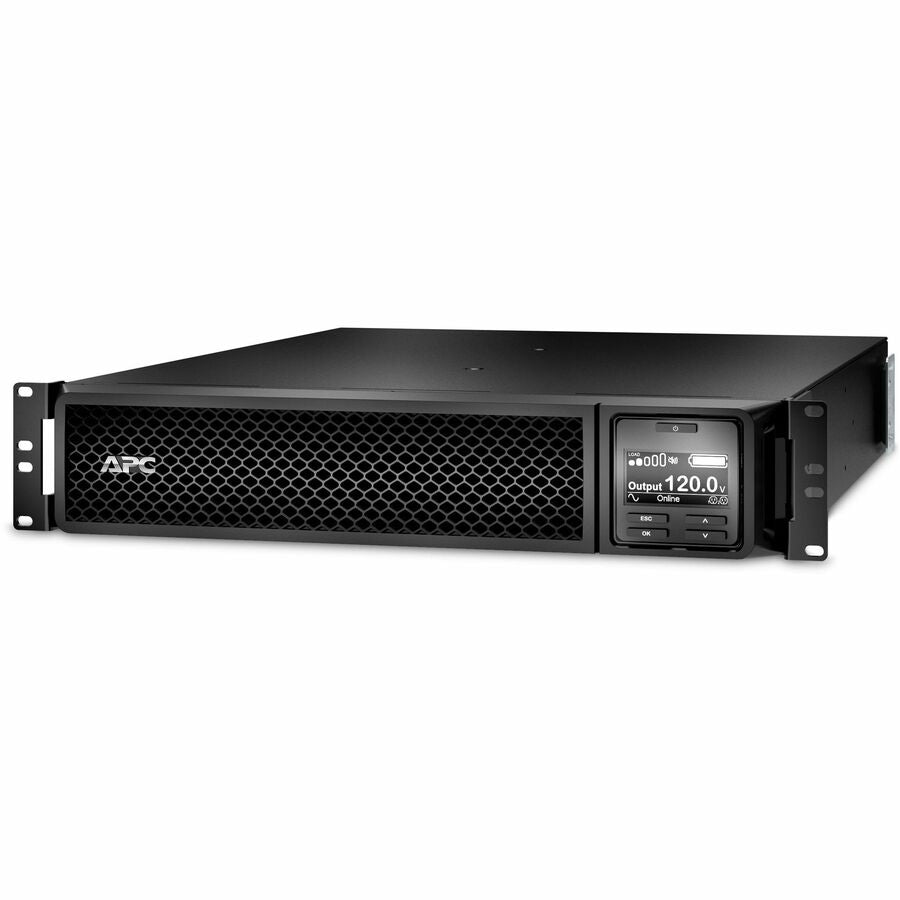

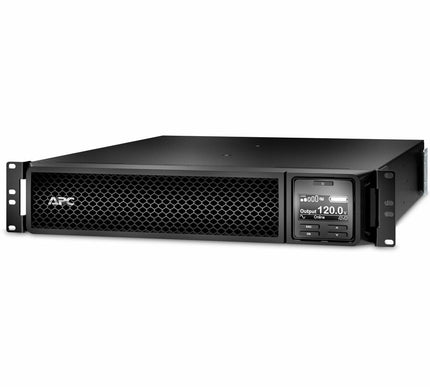

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit, W/ 10ft input cord - SRT2K2RXLNX145

    Product form
    • Schneider Electric SA

    APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit, W/ 10ft input cord - SRT2K2RXLNX145

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SRT2K2RXLNX145 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,822.20

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SRT2K2RXLNX145
        Barcode: 000000000000

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SRT2K2RXLNX145
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS On-Line
      • Product Name: Smart-UPS On-Line 2200VA Rack-mountable UPS
      • Marketing Information:

        This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.


      • Product Type: Double Conversion Online UPS

        • Technical Information

      • Plug/Connector Type: NEMA 5-20P
      • Receptacle Type: NEMA 5-20P
      • Receptacle Detail:
        • 1 x NEMA L5-20R
        • 6 x NEMA 5-20R

      • Number of Battery & Surge Outlets: 7
      • Cord Length: 10.01 ft
      • Phase: Single Phase

        • Power Description

      • Load Capacity (VA): 2200 VA
      • Load Capacity (Watt): 1800 W
      • Input Voltage: 120 V AC
      • Output Voltage: 120 V AC
      • Input Frequency: 70 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Sine Wave
      • Surge Energy Rating: 340 J

        • Display & Graphics

      • Display: LCD

        • Management

      • Network Management: SmartSlot
      • Alarm: Yes

        • Controls/Indicators

      • Status Indicators:

        Multi-function LCD status and control console


        • Interfaces/Ports

      • USB: Yes
      • EPO Port: Yes

        • Battery Information

      • DC System Voltage: 72 V DC
      • Battery Chemistry: Lead Acid
      • Battery Energy: 0 J
      • Battery Life: 5 Year
      • Typical Battery Recharge Time: 3 Hour
      • Replaceable Battery: Yes

        • Environmental Conditions

      • Maximum Operating Elevation: 10000 ft
      • Maximum Storage Elevation: 50000 ft
      • Storage Temperature: -4°F (-20°C) - 122°F (50°C)
      • Storage Relative Humidity: 0% - 95%
      • Maximum Operating Temperature: 104°F (40°C)
      • Sound Emission (A-Weighted): 55 dB(A)
      • Thermal Dissipation: 156.79 W

        • Physical Characteristics

      • Product Color: Black
      • Height: 3.35"
      • Width: 17.01"
      • Depth: 22.99"
      • Rack Height: 2U
      • Form Factor: Rack-mountable
      • Weight (Approximate): 55.01 lb

        • Miscellaneous

      • Package Contents:
        • Smart-UPS On-Line 2200VA Rack-mountable UPS
        • CD with software
        • Documentation CD
        • Installation guide
        • Network Management Card
        • Rack mounting hardware
        • Rack Mounting brackets
        • Rack Mounting support rails
        • USB cable
        • Warranty card

      • Software Included: Powerchute Serial Edition
      • Energy Star: Yes
      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Energy Efficiency Certification: ENERGY STAR 2.0
      • Environmental Compliance:
        • Waste Electrical and Electronic Equipment Directive (WEEE)
        • Restriction of Hazardous Substances (RoHS)

      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 3 Year
      • Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
        •
