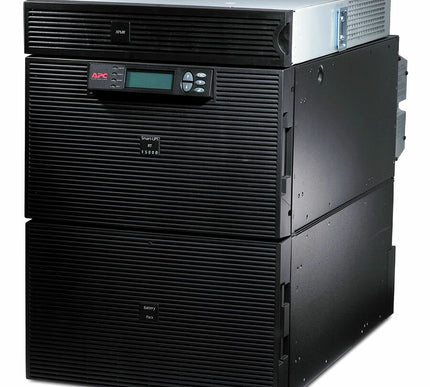

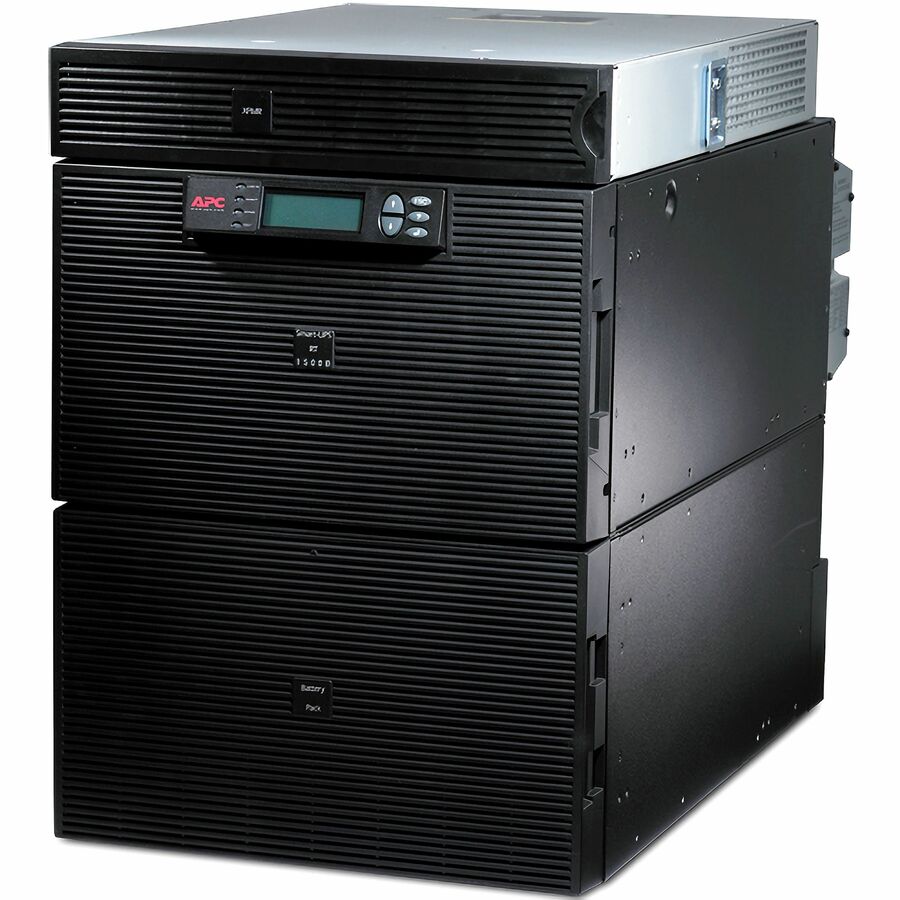

APC Smart-UPS RT 15kVA, 208V, LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V - SURT15KRMXLT-TF5

    Product form
    • Schneider Electric SA

    APC Smart-UPS RT 15kVA, 208V, LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V - SURT15KRMXLT-TF5

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SURT15KRMXLT-TF5 Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $19,167.47

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: BC3337

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SURT15KRMXLT-TF5
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS
      • Product Model: SURT15KRMXLT-TF5
      • Product Name: Smart-UPS On-Line SURT15KRMXLT-TF5 15 kVA Tower/Rack Mountable UPS
      • Marketing Information:

        The APC Smart-UPS RT is an online UPS with transformer and a power rating of 15kVA and output power capacity of 12000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.


      • Product Type: Online UPS

        • Technical Information

      • Plug/Connector Type: Hard Wire 3-wire
      • Receptacle Type:
        • Hard Wire 3-wire (2PH + G)
        • NEMA 5-20R
        • NEMA L6-20R
        • NEMA L6-30R

      • Receptacle Detail:
        • 1 x Hard Wire 3-wire (2PH + G)
        • 12 x NEMA 5-20R
        • 4 x NEMA L6-20R
        • 1 x NEMA L6-30R

      • Number of Battery & Surge Outlets: 17
      • Overload Protection: Yes
      • Phase: Single Phase

        • Power Description

      • Load Capacity (VA): 15 kVA
      • Input Voltage:
        • 208 V AC
        • 240 V AC

      • Output Voltage:
        • 120 V AC
        • 208 V AC
        • 240 V AC

      • Input Frequency: 60 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Sine Wave

        • Management

      • Network Management: SNMP Manageable

        • Interfaces/Ports

      • Serial Port: Yes
      • Network (RJ-45): Yes

        • Battery Information

      • Number of Batteries: 4
      • Battery Characteristics: Maintenance-free/Sealed/Spill Proof
      • Battery Chemistry: Lead Acid
      • Backup/Run Time (Full Load): 8 Minute
      • Typical Battery Recharge Time: 2.50 Hour

        • Physical Characteristics

      • Product Color: Black
      • Form Factor: Rack-mountable
      • Rack Height: 14U
      • Height: 24.5"
      • Width: 17"
      • Depth: 30.4"
      • Weight (Approximate): 641.35 lb

        • Miscellaneous

      • Country of Origin: Philippines
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
