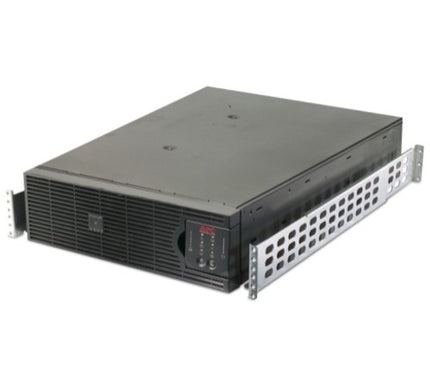

APC Smart-UPS RT 2200VA 230V - Marine - SURTD2200XLIM

    Product form
    • Schneider Electric SA

    APC Smart-UPS RT 2200VA 230V - Marine - SURTD2200XLIM

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SURTD2200XLIM Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $2,485.05

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: RY4002
        Barcode: 0731304286929

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SURTD2200XLIM
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS
      • Product Name: Smart-UPS 2200VA Rack-mountable UPS
      • Marketing Information:

        The APC Smart-UPS RT is an online UPS with a power rating of 2200VA and output power capacity of 1540 watts. It includes multiple output connections such as IEC 60230 C19, IEC 60230 C13, and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.


      • Product Type: Double Conversion Online UPS

        • Technical Information

      • Plug/Connector Type:
        • British BS1363A
        • IEC 60320 C20
        • SCHUKO CEE 7 EU1-16P

      • Number of Battery & Surge Outlets: 12
      • Cord Length: 8.20 ft

        • Power Description

      • Load Capacity (VA): 2200 VA
      • Load Capacity (Watt): 1540 W
      • Input Voltage: 230 V
      • Output Voltage:
        • 230 V AC
        • 240 V AC

      • Waveform Type: Sine Wave
      • Surge Energy Rating: 555 J

        • Interfaces/Ports

      • Serial Port: Yes
      • Network (RJ-45): Yes

        • Battery Information

      • Number of Batteries: 1
      • Battery Characteristics: Maintenance-free, Sealed
      • Battery Chemistry: Lead Acid
      • Backup/Run Time (Full Load): 21 Minute
      • Backup/Run Time (Half Load): 48 Minute
      • Hot Swappable: Yes
      • Typical Battery Recharge Time: 2.50 Hour

        • Physical Characteristics

      • Product Color: Black
      • Height: 17.01"
      • Width: 5.12"
      • Depth: 25.98"
      • Rack Height: 3U
      • Form Factor: Rack-mountable
      • Weight (Approximate): 120.26 lb

        • Miscellaneous

      • Package Contents:
      • Smart-UPS 2200VA Rack-mountable UPS
      • CD with software
      • Documentation CD
      • Installation guide
      • Rack mounting hardware
      • Smart UPS signalling RS-232 cable
      • User manual

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 2 Year
        •
