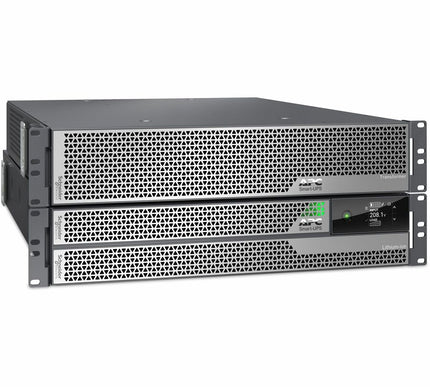

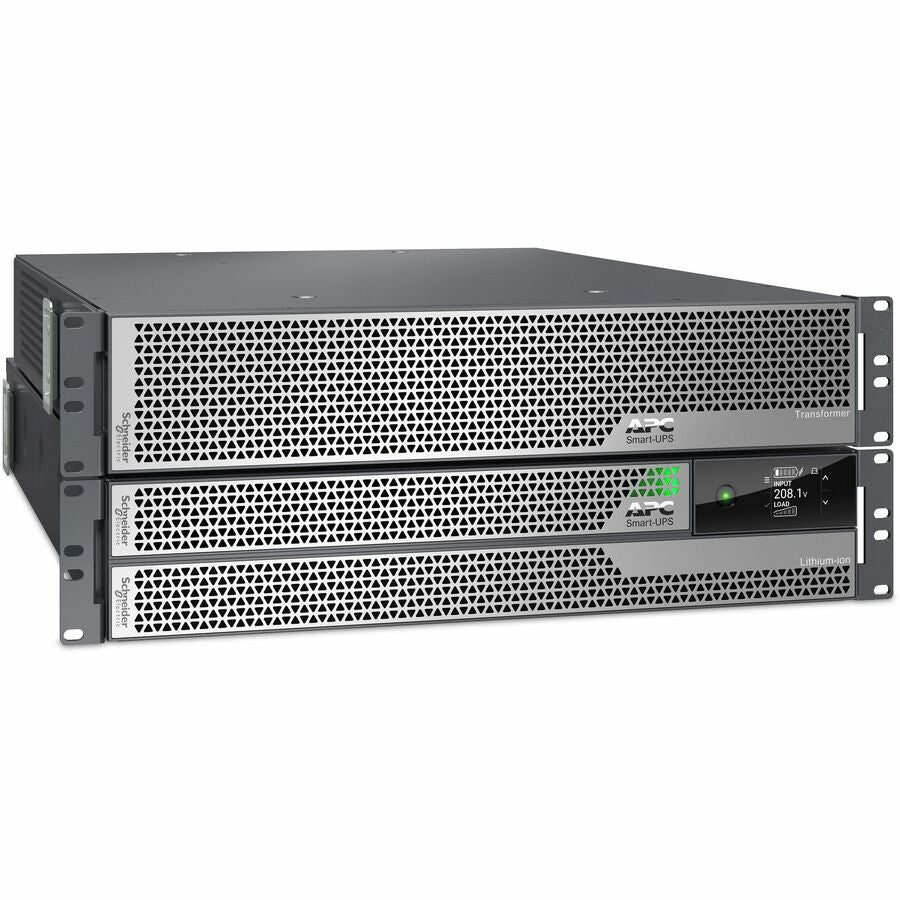

APC Smart-UPS Ultra, 5kVA, Rackmount 4U, 208V, 12x 5-20R+2x L6-20R+1x L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V - SRTL5KRM2UT-5KRMTF

    Product form
    • Schneider Electric SA

    APC Smart-UPS Ultra, 5kVA, Rackmount 4U, 208V, 12x 5-20R+2x L6-20R+1x L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V - SRTL5KRM2UT-5KRMTF

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SRTL5KRM2UT-5KRMTF Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $11,626.60

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 12BW47

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SRTL5KRM2UT-5KRMTF
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS Ultra
      • Product Name: Smart-UPS Ultra 5kVA Rack-mountable UPS
      • Marketing Information:

        Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R. Step Down Transformer Connections: 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker.


      • Packaged Quantity: 1
      • Product Type: Double Conversion Online UPS

        • Technical Information

      • Plug/Connector Type: NEMA L6-30P
      • Receptacle Type: NEMA L6-30P
      • Receptacle Detail:
        • 12 x NEMA 5-20R
        • 2 x NEMA L6-20R
        • 2 x NEMA L6-30R

      • Cord Length: 10.01 ft
      • Phase: Single Phase

        • Power Description

      • Load Capacity (VA): 4900 VA
      • Load Capacity (Watt): 4900 W
      • Input Voltage: 208 V AC
      • Input Voltage Range: 100 V AC - 275 V AC
      • Output Voltage: 120 V AC
      • Input Frequency: 70 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Sine Wave
      • Surge Energy Rating: 1260 J

        • Management

      • Network Management: Network Management Card 3 (NMC3)

        • Interfaces/Ports

      • USB: Yes
      • EPO Port: Yes

        • Battery Information

      • Battery Chemistry: Lithium Ion (Li-Ion)
      • Battery Energy: 2304 kJ
      • Backup/Run Time (Full Load): 5.50 Minute
      • Backup/Run Time (Half Load): 11.90 Minute
      • Battery Life: 10 Year
      • Typical Battery Recharge Time: 1.50 Hour

        • Environmental Conditions

      • Maximum Operating Elevation: 10000 ft
      • Maximum Storage Elevation: 50000 ft
      • Storage Temperature: 5°F (-15°C) - 113°F (45°C)
      • Storage Relative Humidity: 95%
      • Maximum Operating Temperature: 104°F (40°C)
      • Sound Emission (A-Weighted): 55 dB(A)
      • Thermal Dissipation: 306.85 W

        • Physical Characteristics

      • Product Color: Black
      • Height: 6.93"
      • Width: 17.01"
      • Depth: 28.31"
      • Rack Height: 4U
      • Form Factor: Rack-mountable
      • Weight (Approximate): 159.37 lb

        • Miscellaneous

      • Package Contents:
      • Smart-UPS Ultra 5kVA Rack-mountable UPS
      • 1 x CD (software and documentation)

      • Energy Star: Yes
      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 5 Year
        •
