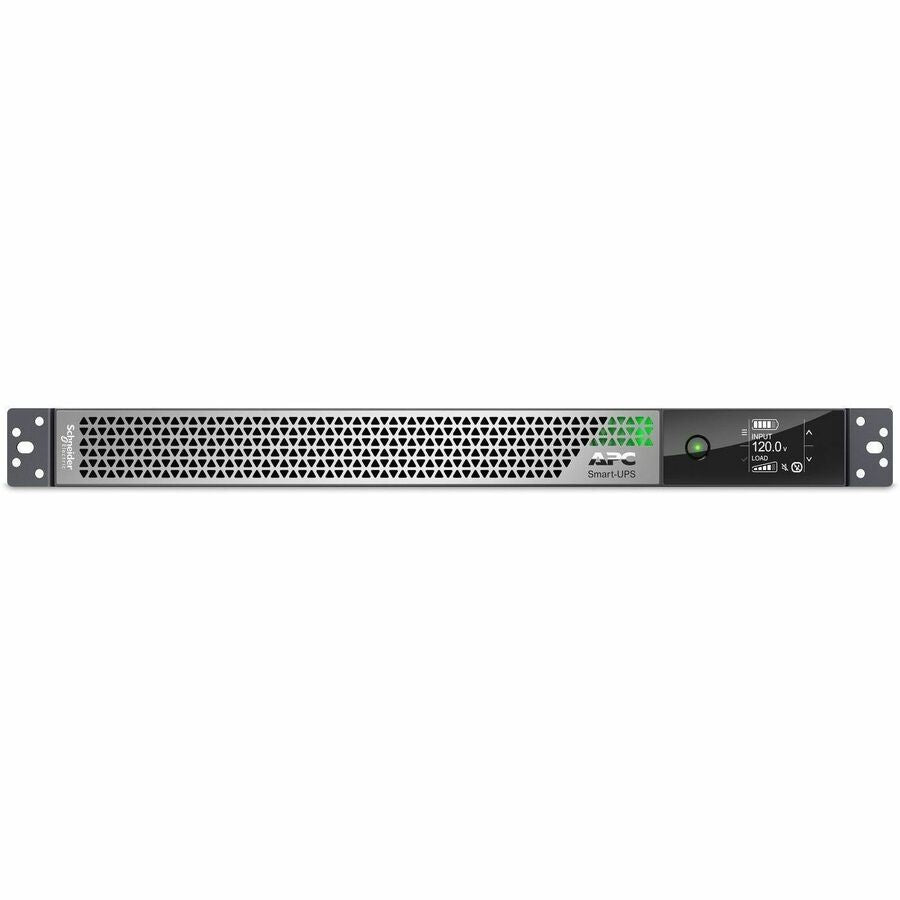

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-20R NEMA outlets, Network Card, Extended runtime, W/rail kit - SRTL2K2RM1UNC

    Product form
    • Schneider Electric SA

    APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-20R NEMA outlets, Network Card, Extended runtime, W/rail kit - SRTL2K2RM1UNC

      General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SRTL2K2RM1UNC Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

      16 in stock Order today, shipped today

      $4,511.70

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
        • Shipped today? Order within: Sep 03, 2026 17:00:00 -0700
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: SRTL2K2RM1UNC
        Barcode: 731304435563

        Size chart

        General Information

      • Manufacturer: Schneider Electric SA
      • Manufacturer Part Number: SRTL2K2RM1UNC
      • Manufacturer Website Address: http://www.schneider-electric.com
      • Brand Name: APC
      • Product Line: Smart-UPS Ultra
      • Product Name: Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
      • Marketing Information:

        APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with Embedded Network Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

        More from the Manufacturer


      • Packaged Quantity: 1
      • Product Type: Dual Conversion Online UPS

        • Technical Information

      • Plug/Connector Type: NEMA 5-20P
      • Receptacle Type: NEMA 5-20P
      • Receptacle Detail:
        • 1 x NEMA L5-20R
        • 5 x NEMA 5-20R

      • Cord Length: 7.87 ft
      • Phase: Single Phase
      • Application/Usage:
        • Voice/Data Network
        • Medical Laboratory
        • Light Industrial Application
        • Retail
        • Server

        • Power Description

      • Load Capacity (VA): 2200 VA
      • Load Capacity (Watt): 2200 W
      • Input Voltage:
        • 120 V AC
        • 125 V AC

      • Output Voltage:
        • 120 V AC
        • 125 V AC

      • Input Frequency: 60 Hz
      • Output Frequency: 60 Hz
      • Waveform Type: Sine Wave

        • Display & Graphics

      • Display: LCD

        • Management

      • Network Management: Network Card
      • Alarm: Yes

        • Interfaces/Ports

      • USB: Yes
      • Network (RJ-45): Yes
      • EPO Port: Yes

        • Battery Information

      • Battery Chemistry: Lithium Ion (Li-Ion)
      • Battery Size: 50V
      • Battery Energy: 1123.2 kJ
      • Backup/Run Time (Full Load): 6.05 Minute
      • Backup/Run Time (Half Load): 12.65 Minute
      • Typical Battery Recharge Time: 1.50 Hour

        • Environmental Conditions

      • Maximum Operating Elevation: 10000 ft
      • Maximum Storage Elevation: 50000 ft
      • Storage Temperature: 5°F (-15°C) - 113°F (45°C)
      • Storage Relative Humidity: 0% - 95%
      • Maximum Operating Temperature: 104°F (40°C)
      • Sound Emission: 55 dB

        • Physical Characteristics

      • Product Color: Silver Gray
      • Height: 1.69"
      • Width: 17.01"
      • Depth: 22.05"
      • Rack Height: 1U
      • Form Factor: Rack/Tower/Wall/Ceiling/Desktop Mountable
      • Weight (Approximate): 35.05 lb

        • Miscellaneous

      • Package Contents:
        • Smart-UPS Ultra Rack/Tower/Wall/Ceiling/Desktop Mountable 2200VA UPS
        • RJ45 Cable
        • USB Cable
        • Country-Specific Detachable Power Cord
        • Rack Mounting Brackets
        • Rack Mounting Support Rails
        • Installation Guide
        • Warranty Card

      • Environmentally Friendly: Yes
      • Environmental Compliance: Restriction of Hazardous Substances (RoHS)
      • Single-use Plastic (SUP) Free Shipping Packaging: No

        • Warranty

      • Limited Warranty: 5 Year
        •
