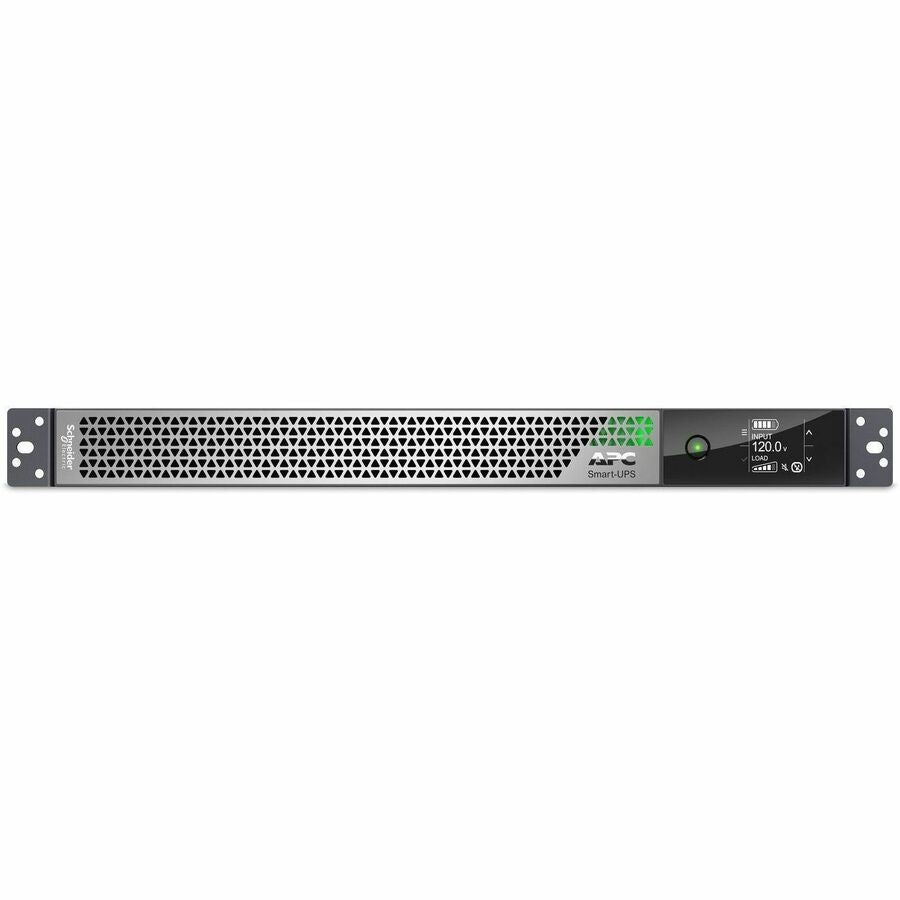

Name: APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-20R NEMA outlets, SmartConnect, Extended runtime, W/rail kit - SRTL2K2RM1UC
Brand: Schneider Electric SA
SKU: SRTL2K2RM1UC
Price: 4245.63 USD
Availability: InStock

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-20R NEMA outlets, SmartConnect, Extended runtime, W/rail kit - SRTL2K2RM1UC

Product form

Schneider Electric SA

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-20R NEMA outlets, SmartConnect, Extended runtime, W/rail kit - SRTL2K2RM1UC

General Information Manufacturer: Schneider Electric SA Manufacturer Part Number: SRTL2K2RM1UC Manufacturer Website Address: http://www.schneider-electric.com Brand Name: APC Product Line: Smart-UPS... Read more

2 in stock Order today, shipped today

$4,245.63

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Shipped today? Order within: Sep 03, 2026 17:00:00 -0700

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: SRTL2K2RM1UC
Barcode: 731304435556

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Schneider Electric SA

Manufacturer Part Number: SRTL2K2RM1UC

Manufacturer Website Address: http://www.schneider-electric.com

Brand Name: APC

Product Line: Smart-UPS Ultra

Product Name: Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS

Marketing Information:

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with SmartConnect Ethernet Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Technical Information

Plug/Connector Type: NEMA 5-20P

Receptacle Type: NEMA 5-20P

Receptacle Detail:

1 x NEMA L5-20R
5 x NEMA 5-20R

Cord Length: 7.87 ft

Phase: Single Phase

Application/Usage:

Network
Server

Power Description

Load Capacity (VA): 2200 VA

Load Capacity (Watt): 2200 W

Input Voltage:

120 V AC
125 V AC

Output Voltage:

120 V AC
125 V AC

Input Frequency: 60 Hz

Output Frequency: 60 Hz

Waveform Type: Sine Wave

Display & Graphics

Display: LCD

Interfaces/Ports

USB: Yes

Network (RJ-45): Yes

EPO Port: Yes

Battery Information

DC System Voltage: 50 V DC

Battery Chemistry: Lithium Ion (Li-Ion)

Battery Energy: 1123.2 kJ

Backup/Run Time (Full Load): 6.05 Minute

Backup/Run Time (Half Load): 12.65 Minute

Typical Battery Recharge Time: 1.50 Hour

Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft

Maximum Storage Elevation: 50000 ft

Storage Temperature: 5°F (-15°C) - 113°F (45°C)

Storage Relative Humidity: 95%

Maximum Operating Temperature: 104°F (40°C)

Sound Emission: 55 dB

Physical Characteristics

Product Color: Silver Gray

Height: 1.69"

Width: 17.01"

Depth: 22.05"

Rack Height: 1U

Form Factor: Rack/Tower/Wall/Ceiling/Desktop Mountable

Weight (Approximate): 35.05 lb

Miscellaneous

Package Contents:

Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS
RJ45 Cable
USB Cable
Country-Specific Detachable Power Cord
Rack Mounting Brackets
Rack Mounting Support Rails
Installation Guide
Warranty Card

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Single-use Plastic (SUP) Free Shipping Packaging: No

Warranty

Limited Warranty: 5 Year
