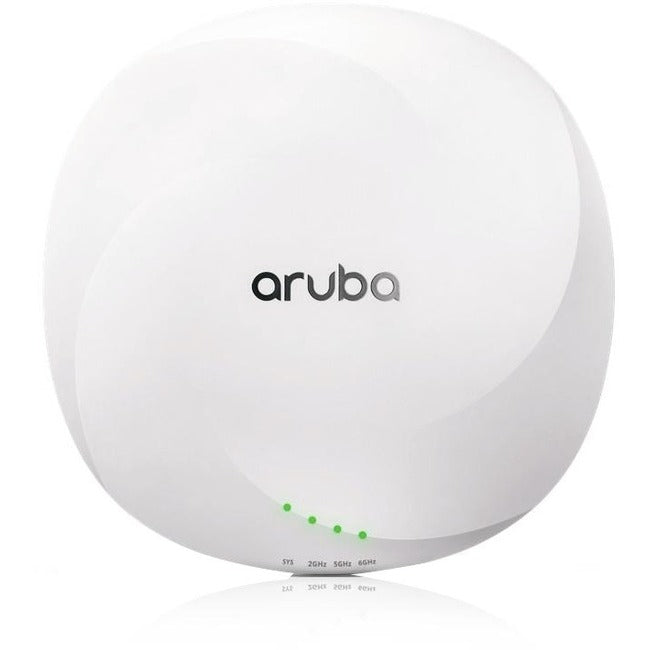

Aruba AP-635 Tri Band 802.11ax 3.90 Gbit/s Wireless Access Point - Indoor - TAA Compliant - R7J29A

    Product form

    Aruba AP-635 Tri Band 802.11ax 3.90 Gbit/s Wireless Access Point - Indoor - TAA Compliant - R7J29A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R7J29A Manufacturer Website Address: http://www.hpe.com Brand Name: Aruba Product Series: 630... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $1,300.78

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: NQ5091
        Barcode: 0190017492858

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: R7J29A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: Aruba
      • Product Series: 630
      • Product Model: AP-635
      • Product Name: AP-635 Wireless Access Point
      • Marketing Information: Fast, resilient, and secure Wi-Fi 6E connectivity

        For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.

        MORE CAPACITY AND WIDER CHANNELS

        The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9 Gbps aggregate peak).

        Advantages of 6GHz

        Wi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.

        Device class support

        The 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.

        LESS INTERFERENCE

        630 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without experiencing interference. Since there is only 50 MHz between 5 GHz and the 6 GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.

        BUSINESS CONTINUITY

        The Series 630 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1 or 2.5 Gbps, these dual ports provide business continuity for mission critical applications.

        GLOBAL READINESS

        While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6 GHz differently. The 630 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.
      • Product Type: Wireless Access Point

        • Technical Information

      • Wireless LAN Standard: 802.11ax
      • Bluetooth Standard: Bluetooth 5
      • Network Band: Tri Band
      • Frequency Band:
        • 2.40 GHz
        • 5 GHz
        • 6 GHz

      • Indoor/Outdoor: Indoor
      • Wireless Transmission Speed: 3.90 Gbit/s
      • MIMO Technology: Yes
      • Beamforming Technology: Yes
      • Data Encryption: Yes
      • Encryption Standard:
        • WPA-ENT
        • WPA2-ENT
        • WPA3-ENT
        • WPA
        • WPA2
        • WPA2-MPSK
        • WPA3
        • WPA3-SAE

        • Interfaces/Ports

      • Ethernet Technology: 2.5 Gigabit Ethernet
      • Number of Network (RJ-45) Ports: 2
      • PoE (RJ-45) Port: Yes
      • PoE PD Port: Yes
      • USB: Yes

        • Physical Characteristics

      • Form Factor:
        • Desktop
        • Ceiling Mountable

      • Antenna Form Factor: Internal
      • Height: 2"
      • Width: 8.7"
      • Depth: 8.7"
      • Weight (Approximate): 2.87 lb

        • Miscellaneous

      • TAA Compliant: Yes
        •
