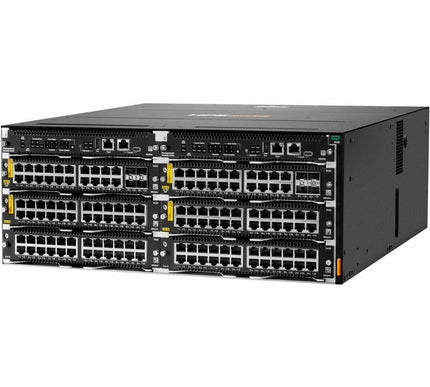

Aruba CX 5420 Switch Chassis - S0U62A

    Product form

    Aruba CX 5420 Switch Chassis - S0U62A

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: S0U62A Manufacturer Website Address: http://www.hpe.com Brand Name: Aruba Product Series: CX... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $5,120.54

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: S0U62A
        Barcode: 1.90018E+11

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: S0U62A
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: Aruba
      • Product Series: CX 5420
      • Product Name: CX 5420 Switch Chassis
      • Marketing Information:

        Features

        Maximize your HPE Aruba Networking CX 5420 Switch Series

        What's New

        • Powerful, modular, intelligent Layer 3 switch chassis with BGP, VSX, and OSPF with robust quality of service (QoS).
        • Flexibility with 6 half-width modules that allow growth when needed and support for port diversity in a condensed 4RU chassis with redundant MM and PSU.
        • High performance switching with up to 960 Gbps using 714 Mpps, built-in high availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade and Always-On PoE.
        • Simplified operations with the common HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio delivering a more consistent, more efficient operator experience.
        • Easy to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, with easy-to-use web GUI or industry-standard CLI.
        • Automated, unified role-based policies for users, Internet of Things (IoT) and devices with HPE Aruba Networking Dynamic Segmentation and intelligent monitoring, visibility, and remediation with NAE.


        Future-ready with Superior Performance

        • The HPE Aruba Networking CX 5420 Switch Series use the latest Gen7 ASICs, delivering very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future.
        • The CX 5420 switch is a compact 6 slot (4 RU) supporting a choice of line cards and redundant, half-width management modules that seamlessly supports Wi-Fi 6 and IoT with Smart Rate multi-gigabit and 90W PoE ports.
        • High availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade provides high availability, non-disruptive fast upgrades and simplified management, supporting redundant power supplies and N+1 redundant fans.
        • The series provides security-first networking with MACsec1 capable line card modules delivering the enterprise-grade performance and security needs for small and medium campus, branch enterprise networks.

      • Product Type: Switch Chassis

        • Technical Information

      • Features: Hot-swappable

        • Interfaces/Ports

      • Total Number of Network Ports: 24
      • Network (RJ-45): Yes
      • Modular: Yes
      • Port/Expansion Slot Details:
        • 24 x Gigabit Ethernet PoE
        • 6 x Expansion Slot

        • Media & Performance

      • Media Type Supported:
        • Twisted Pair
        • Optical Fiber

      • Ethernet Technology: Gigabit Ethernet
      • Network Technology: 10/100/1000Base-T

        • I/O Expansions

      • Total Number of Expansion Slots: 6
      • Expansion Slot Type: Line Card

        • Network & Communication

      • Layer Supported: 3
      • Networking Standards: IEEE 802.3bt

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • PoE (RJ-45) Port: Yes
      • Input Voltage:
        • 120 V AC
        • 230 V AC

      • Power Source:
        • Power Supply
        • AC

      • Redundant Power Supply Supported: Yes
      • Number of Power Supplies Supported: 4
      • Power Consumption: 1600 W

        • Physical Characteristics

      • Compatible Rack Unit: 4U
      • Form Factor: Rack-mountable
      • Height: 1.7"
      • Width: 8.4"
      • Depth: 9"
      • Weight (Approximate): 1.70 lb

        • Warranty

      • Limited Warranty: Lifetime
        •
