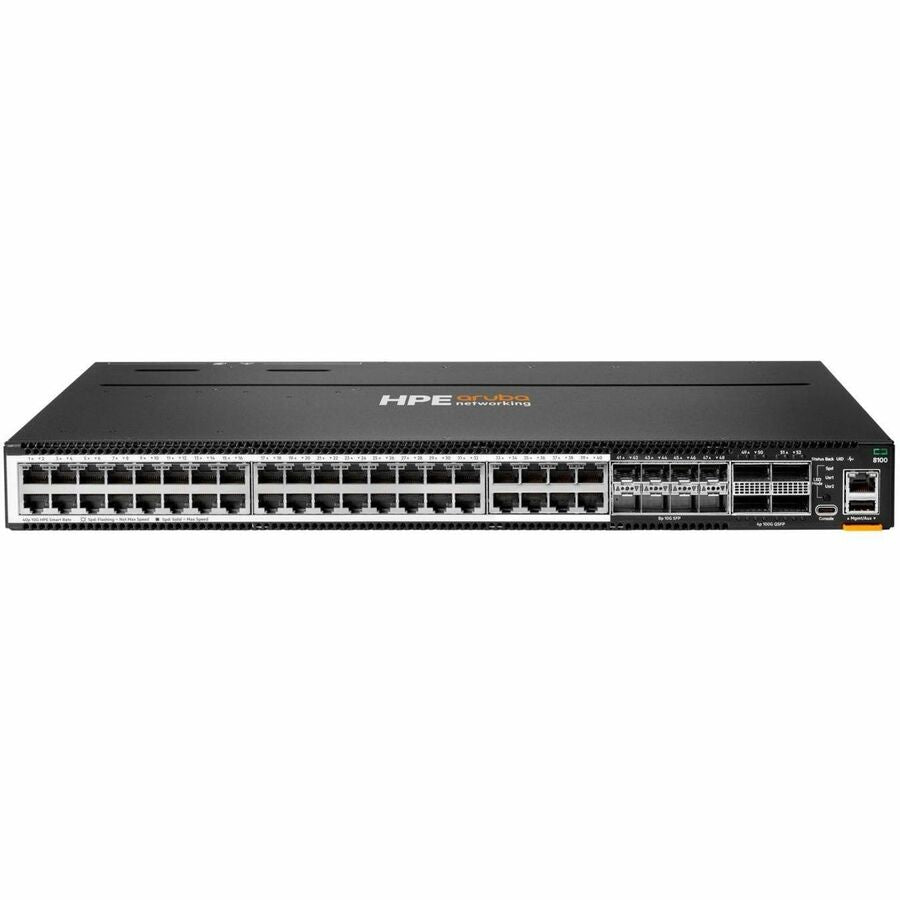

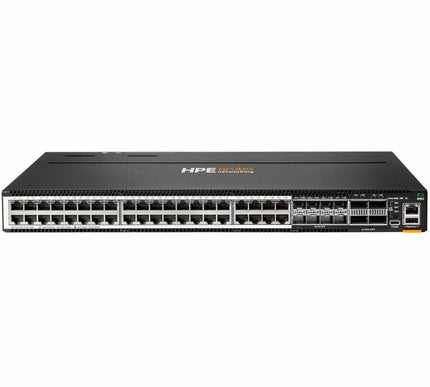

Aruba CX 8100 Ethernet Switch - R9W93A#B2E

    Product form

    Aruba CX 8100 Ethernet Switch - R9W93A#B2E

      General Information Manufacturer: Hewlett Packard Enterprise Manufacturer Part Number: R9W93A#B2E Manufacturer Website Address: http://www.hpe.com Brand Name: Aruba Product Series: CX... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $9,684.83

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: JQ5329

        Size chart

        General Information

      • Manufacturer: Hewlett Packard Enterprise
      • Manufacturer Part Number: R9W93A#B2E
      • Manufacturer Website Address: http://www.hpe.com
      • Brand Name: Aruba
      • Product Series: CX 8100
      • Product Name: CX 8100 Ethernet Switch
      • Marketing Information:
        • High-performance 1.76Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
        • Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
        • High availability with industry-leading VSX redundancy and redundant power supplies and fans.
        • Aruba AOS-CX automation and programmability using built-in REST APIs and Python scripts with intelligent monitoring and visibility delivered by the Aruba Network Analytics Engine.

      • Packaged Quantity: 1
      • Product Type: Ethernet Switch

        • Interfaces/Ports

      • Total Number of Network Ports: 40
      • Network (RJ-45): Yes
      • Port/Expansion Slot Details:
        • 40 x 10BASE-T Gigabit Ethernet RJ-45 Network Port
        • 8 x 10 Gigabit Ethernet SFP+ Expansion Slot
        • 4 x 40/100 Gigabit Ethernet QSFP28 Expansion Slot
        • 1 x RJ-45 Serial Port
        • 1 x USB-C Console Port
        • 1 x RJ-45 Ethernet Port
        • 1 x USB-Type A Port

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Ethernet Technology:
        • Gigabit Ethernet
        • 2.5 Gigabit Ethernet
        • 5 Gigabit Ethernet
        • 10 Gigabit Ethernet
        • 40 Gigabit Ethernet
        • 100 Gigabit Ethernet

      • Network Technology:
        • 10GBase-X
        • 100GBase-X
        • 10GBase-T
        • 5GBase-T
        • 2.5GBase-T
        • 40GBase-X

      • Maximum Data Transfer Rate: 12.50 GB/s

        • I/O Expansions

      • Total Number of Expansion Slots: 12
      • Expansion Slot Type:
        • SFP+
        • QSFP28
        • QSFP+
        • SFP

      • Number of SFP Slots: 4
      • Number of SFP+ Slots: 4

        • Network & Communication

      • Layer Supported: 3
      • Networking Standards:
        • IEEE 802.3z
        • IEEE 802.1Q
        • IEEE 802.3ab
        • IEEE 802.1p
        • IEEE 802.3x
        • IEEE 802.3ad
        • IEEE 802.1w
        • IEEE 802.3ae
        • IEEE 802.1s
        • IEEE 802.1t
        • IEEE 802.1v
        • IEEE 802.1ab
        • IEEE 802.1ak
        • IEEE 802.3an
        • IEEE 802.3ba
        • IEEE 802.1AX
        • IEEE 802.3by

        • Management & Protocols

      • Manageable: Yes

        • Power Description

      • Input Voltage:
        • 120 V AC
        • 230 V AC

      • Power Source:
        • AC
        • Power Supply

      • Number of Power Supplies Supported: 2
      • Number of Power Supplies Installed: 2
      • Power Consumption: 500 W

        • Physical Characteristics

      • Product Color: Black
      • Compatible Rack Unit: 1U
      • Form Factor: Rack-mountable
      • Height: 1.7"
      • Width: 17.4"
      • Depth: 16"
      • Weight (Approximate): 18.89 lb

        • Miscellaneous

      • Package Contents:
        • CX 8100 Ethernet Switch
        • 2 x Power Supplies with No open PS slots
        • 3 x Fan Tray with No open FT Slots
        • 1 x 2-Post Rack Kit

        • Warranty

      • Limited Warranty: Lifetime
        •
