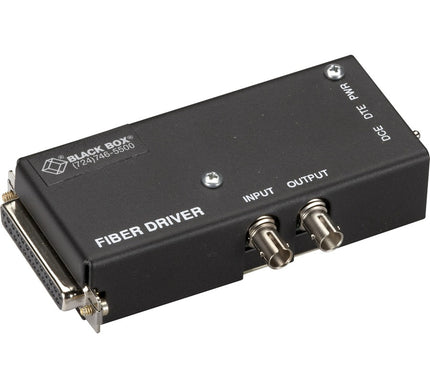

Black Box Async RS232 Extender over Fiber - DB25 Female, ST Multimode - MD940A-F

    Product form
    • Black Box Corporation

    Black Box Async RS232 Extender over Fiber - DB25 Female, ST Multimode - MD940A-F

      General Information Manufacturer: Black Box Corporation Manufacturer Part Number: MD940A-F Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Model:... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $314.49

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 681A81
        Barcode: 0822088111108

        Size chart

        General Information

      • Manufacturer: Black Box Corporation
      • Manufacturer Part Number: MD940A-F
      • Manufacturer Website Address: http://www.blackbox.com
      • Brand Name: Black Box
      • Product Model: MD940A-F
      • Product Name: Async RS232 Extender over Fiber - DB25 Female, ST Multimode
      • Marketing Information:

      • Autosensing 110-220-VAC power supply ensures reliability and continuous transmission.
      • A range select feature compensates for coupled power variations.
      • Switch-selectable DTE/DCE option. Set to perform like a DTE so it can communicate with another DCE device. No special cables are needed.
      • Support RS-232 async, bidirectional transmission.
      • Use with multimode fiber cable.

      • Packaged Quantity: 1
      • Product Type: Transceiver/Media Converter

        • Interfaces/Ports

      • Total Number of Ports: 3
      • Number of ST Ports: 2
      • ST Port Type: Duplex

        • Media & Performance

      • Media Type Supported: Optical Fiber
      • Fiber Mode Supported: Multi-mode
      • Fiber Optic Cable Wavelength: 850 nm
      • Maximum Distance Supported: 4 km
      • Fiber Optic Cable Core/Cladding Specification: 62.5 µm

        • Power Description

      • Power Source: Power Supply

        • Physical Characteristics

      • Height: 1"
      • Width: 2.7"
      • Depth: 4.2"
      • Weight (Approximate): 1.40 lb

        • Miscellaneous

      • Environmentally Friendly: Yes
      • Country of Origin: United States
      • TAA Compliant: Yes

        • Warranty

      • Limited Warranty: 1 Year
        •
