Name: Black Box Flexpoint Async RS232 Extender Over Fiber - DB9 Female to Multimode, 2.5 km - ME660A-MSC-R2
Brand: Black Box Corporation
SKU: 12NN19
Price: 456.49 USD

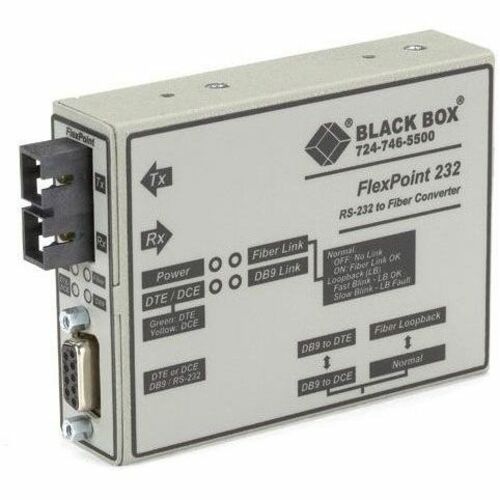

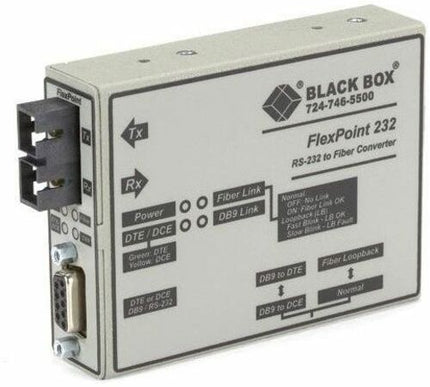

Black Box Flexpoint Async RS232 Extender Over Fiber - DB9 Female to Multimode, 2.5 km - ME660A-MSC-R2

Product form

Black Box Corporation

Black Box Flexpoint Async RS232 Extender Over Fiber - DB9 Female to Multimode, 2.5 km - ME660A-MSC-R2

General Information Manufacturer: Black Box Corporation Manufacturer Part Number: ME660A-MSC-R2 Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Line:... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$456.49

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 12NN19
Barcode: 0822088280712

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Black Box Corporation

Manufacturer Part Number: ME660A-MSC-R2

Manufacturer Website Address: http://www.blackbox.com

Brand Name: Black Box

Product Line: FlexPoint

Product Name: Flexpoint Async RS232 Extender Over Fiber - DB9 Female to Multimode, 2.5 km

Marketing Information:

This multimode fiber extender drives data up to 1.5 mi. (2.5 km). The extender autosenses speeds up to 115.2 kbps and works as a standalone or a hot-swappable chassis-based extender.

The extender is easy to install and includes a DC power supply. Or, you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.

Featuring DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling, the extender supports half- and full-duplex operation.

The extender also has remote loop capability for remote fiber testing and LEDs for status monitoring.

Product Type: Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports: 2

Number of SC Ports: 2

Media & Performance

Media Type Supported: Optical Fiber

Fiber Mode Supported: Multi-mode

Fiber Optic Cable Wavelength: 1310 nm

Maximum Distance Supported: 2.50 km

Power Description

Power Source: DC

Physical Characteristics

Form Factor:

Rack-mountable
Wall Mountable
DIN Rail Mountable
Standalone

Height: 1"

Width: 3"

Depth: 4"

Weight (Approximate): 11.20 oz

Miscellaneous

Package Contents:

Flexpoint Async RS232 Extender Over Fiber - DB9 Female to Multimode, 2.5 km
DC Power Supply (9 VDC/500 mA or 5 VDC/750 mA)

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
