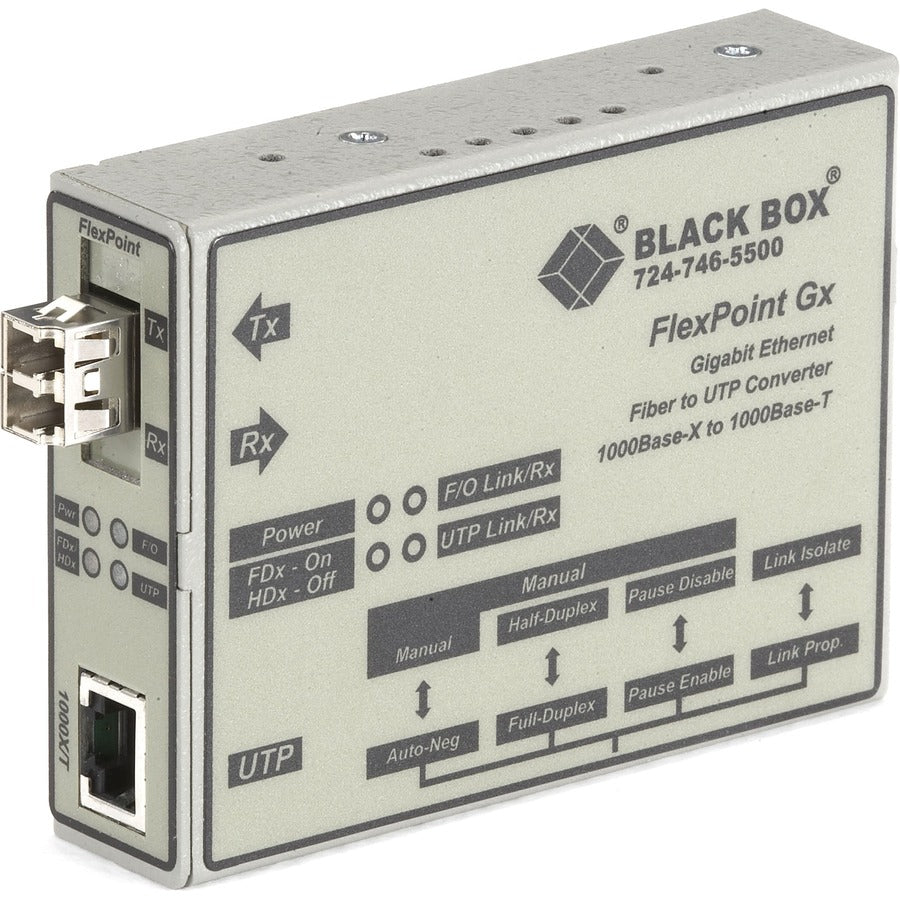

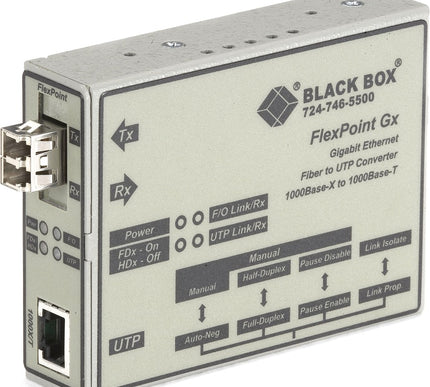

Black Box FlexPoint Modular Media Converter Gigabit Ethernet Multimode 850nm 220m LC - LMC1012A

    Product form
    • Black Box Corporation

    Black Box FlexPoint Modular Media Converter Gigabit Ethernet Multimode 850nm 220m LC - LMC1012A

      General Information Manufacturer: Black Box Corporation Manufacturer Part Number: LMC1012A Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Line:... Read more

      Direct Ship From Manufacturer, Lead Time May Apply.

      $689.69

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
          Have a question on this product? Fill out the form below.
        Send us a message!

        SKU: 681A01
        Barcode: 0822088075905

        Size chart

        General Information

      • Manufacturer: Black Box Corporation
      • Manufacturer Part Number: LMC1012A
      • Manufacturer Website Address: http://www.blackbox.com
      • Brand Name: Black Box
      • Product Line: FlexPoint
      • Product Name: FlexPoint Modular Media Converter Gigabit Ethernet Multimode 850nm 220m LC
      • Marketing Information:
        • Sends data up to 220 meters (721.7 ft.) on multimode fiber cable.
        • Diagnostic LEDs report power availability and status of the attached devices.
        • Hardware available for mounting the converter to a wall or a DIN rail.
        • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
        • Also available with a Universal Power Supply.

        FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements.

        Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.


      • Product Type: Transceiver/Media Converter

        • Interfaces/Ports

      • Total Number of Ports: 2
      • Network (RJ-45): Yes
      • Number of LC Ports: 1
      • LC Port Type: Duplex
      • Number of Network (RJ-45) Ports: 1

        • Media & Performance

      • Media Type Supported:
        • Twisted Pair
        • Optical Fiber

      • Fiber Mode Supported: Multi-mode
      • Fiber Optic Cable Wavelength: 850 nm
      • Maximum Distance Supported: 0.22 km

        • Network & Communication

      • Ethernet Technology: Gigabit Ethernet
      • Network Technology:
        • 1000Base-T
        • 1000Base-SX

        • Power Description

      • Power Source: Power Supply

        • Physical Characteristics

      • Form Factor:
        • Standalone
        • Rack-mountable
        • DIN Rail Mountable
        • Wall Mountable

      • Height: 1"
      • Width: 3"
      • Depth: 4"
      • Weight (Approximate): 9.60 oz

        • Miscellaneous

      • Environmentally Friendly: Yes
      • Environmental Compliance:
        • Restriction of Hazardous Substances (RoHS)
        • Waste Electrical and Electronic Equipment Directive (WEEE)

      • Country of Origin: United States
      • TAA Compliant: Yes

        • Warranty

      • Limited Warranty: 1 Year
        •
