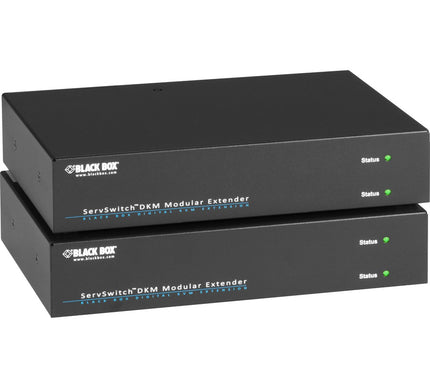

Name: Black Box KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber - AMS9204A
Brand: Black Box Corporation
SKU: 401A07
Price: 5904.06 USD

Black Box KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber - AMS9204A

Product form

Black Box Corporation

Black Box KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber - AMS9204A

General Information Manufacturer: Black Box Corporation Manufacturer Part Number: AMS9204A Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Model:... Read more

Direct Ship From Manufacturer, Lead Time May Apply.

$5,904.06

Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.

Warranty by Manufacturer

Have a question on this product? Fill out the form below.

Send us a message!

Subject

Name

Email*

Message*

SKU: 401A07
Barcode: 0822088125433

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email
Share

General Information

Manufacturer: Black Box Corporation

Manufacturer Part Number: AMS9204A

Manufacturer Website Address: http://www.blackbox.com

Brand Name: Black Box

Product Model: AMS9204A

Product Name: KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber

Marketing Information:

This product is built to order (parts below are completely assembled prior to shipment).
Includes external power supply.

This DKM FX Fiber Extender Kit is comprised of 2 modular housing chassis with 2 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

These DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.

Supports integrated DisplayPort digital audio.

Audio format PCM can be transferred with a sample rate up to 96 Hz via the DisplayPort interface.
Supports up to 2 daughter cards.

Product Type: KVM Extender

Technical Information

Connectivity Technology: Wired

Number of Computers Supported: 1

Number of Local Users Supported: 1

Maximum Operating Distance: 16404.20 ft

Video

Graphic Mode: 4K

Maximum Video Resolution: 4096 x 2160

Interfaces/Ports

USB: Yes

DisplayPort: Yes

Number of USB Ports: 5

Power Description

Input Voltage:

120 V AC
240 V AC

Input Voltage Range: 100V AC to 240V AC

Miscellaneous

Package Contents:

DKM FX Extender Modular Housing, 2-Slot Chassis (ACXMODH2R-P-R2)
DKM FX Transmitter Modular Interface Card (ACX2MT-DP4KHS-SM)
DKM FX Receiver Modular Interface Card (ACX2MR-DP4KHS-SM)

Environmentally Friendly: Yes

Country of Origin: Germany

TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
