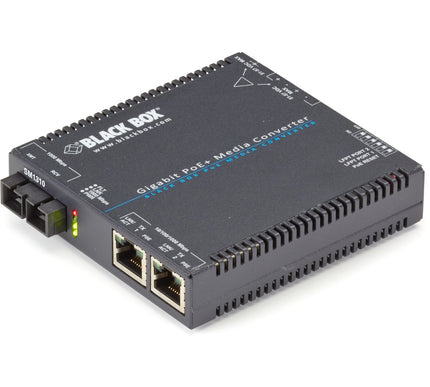

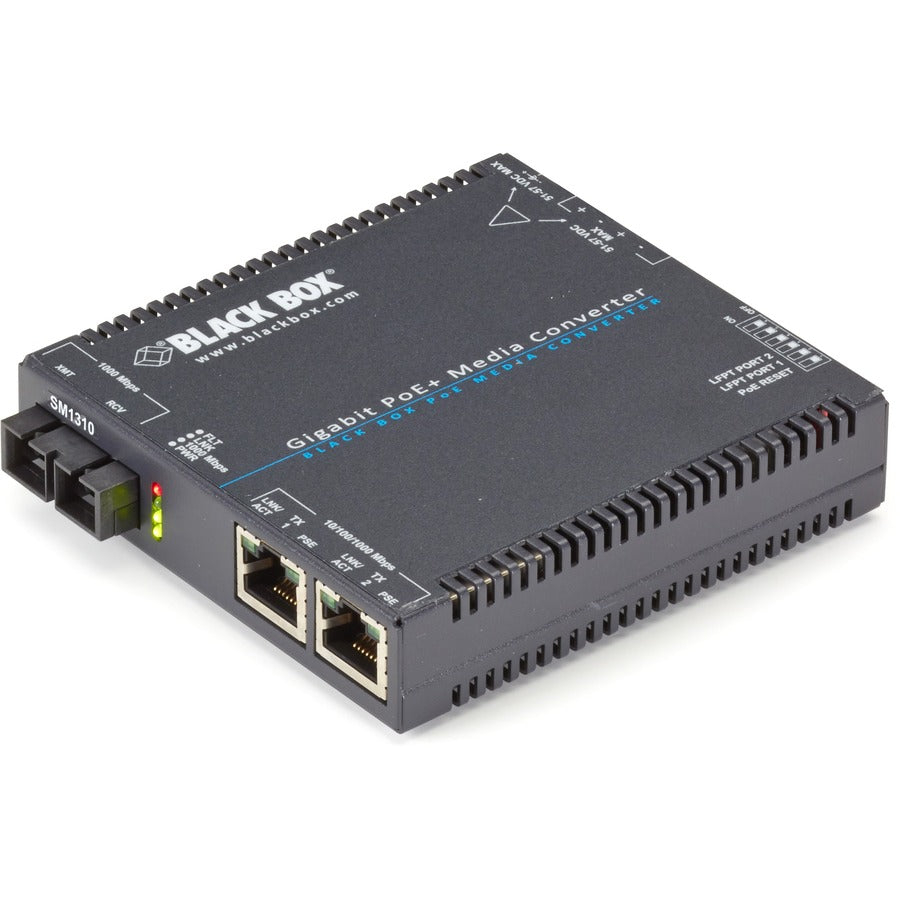

Black Box LGC5212A Transceiver/Media Converter - LGC5212A

    Product form
    • Black Box Corporation

    Black Box LGC5212A Transceiver/Media Converter - LGC5212A

      General Information Manufacturer: Black Box Corporation Manufacturer Part Number: LGC5212A Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Model:... Read more

      25 in stock Order today, shipped 1-2 business days

      $621.85

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: 3298741
          Barcode: 822088107996

          Size chart

          General Information

        • Manufacturer: Black Box Corporation
        • Manufacturer Part Number: LGC5212A
        • Manufacturer Website Address: http://www.blackbox.com
        • Brand Name: Black Box
        • Product Model: LGC5212A
        • Product Name: LGC5212A Transceiver/Media Converter
        • Marketing Information: Further Details

          This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras, wireless access points, and VoIP phones.

          The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet, enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port, which can be used for network expansion.

          The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS, order separately), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).

          The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
        • Product Type: Transceiver/Media Converter

          • Interfaces/Ports

        • Total Number of Ports: 3
        • Network (RJ-45): No
        • DVI: No
        • USB: No
        • Management Port: No
        • Number of PoE+ (RJ-45) Ports: 2
        • Number of SC Ports: 1

          • Media & Performance

        • Media Type Supported:
          • Optical Fiber
          • Twisted Pair

        • Fiber Mode Supported: Single-mode
        • Fiber Optic Cable Wavelength: 1310 nm
        • Maximum Distance Supported: 15 km

          • Network & Communication

        • Ethernet Technology: Gigabit Ethernet
        • Network Technology:
          • 10/100/1000Base-TX
          • 1000Base-X

          • Power Description

        • Power Source: AC Adapter

          • Physical Characteristics

        • Form Factor:
          • Rail-mountable
          • Wall Mountable

        • Height: 0.8"
        • Width: 3.6"
        • Depth: 3.8"

          • Miscellaneous

        • Environmentally Friendly: Yes
        • Country of Origin: United States
        • TAA Compliant: Yes

          • Warranty

        • Limited Warranty: 6 Year
          •
