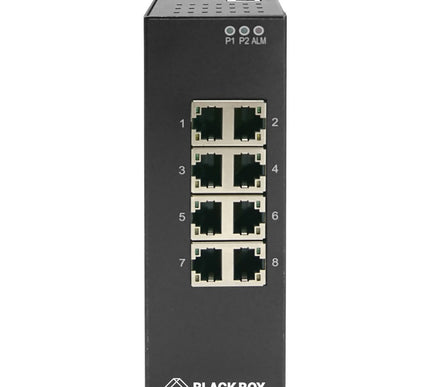

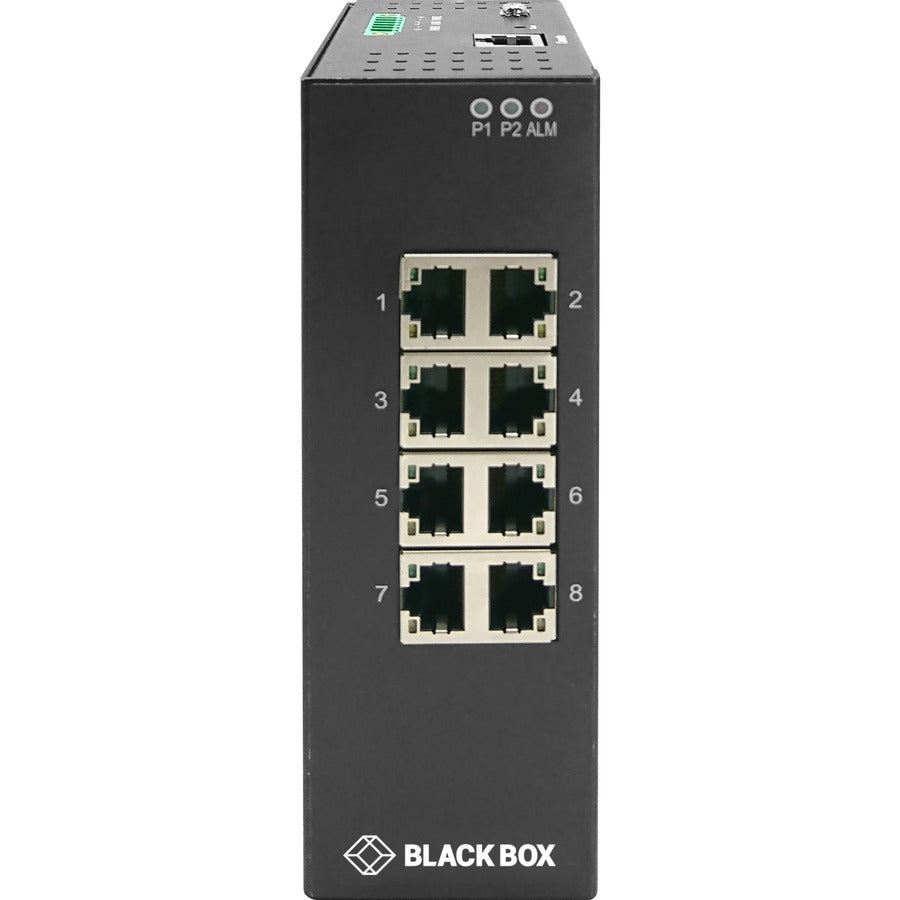

Black Box LIG1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed Switch - (8) 10/100/1000-Mbps Copper RJ45 - LIG1080A

    Product form
    • Black Box Corporation

    Black Box LIG1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed Switch - (8) 10/100/1000-Mbps Copper RJ45 - LIG1080A

      General Information Manufacturer: Black Box Corporation Manufacturer Part Number: LIG1080A Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Series:... Read more

      243 in stock Order today, shipped 1-2 business days

      $529.67

      Business-to-Business Sales Only
      We sell exclusively to businesses, government agencies, educational institutions, organizations, and U.S. military bases within the United States. A valid business email address is required.

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: 5297517
          Barcode: 822088131960

          Size chart

          General Information

        • Manufacturer: Black Box Corporation
        • Manufacturer Part Number: LIG1080A
        • Manufacturer Website Address: http://www.blackbox.com
        • Brand Name: Black Box
        • Product Series: LIG1000
        • Product Name: LIG1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed Switch - (8) 10/100/1000-Mbps Copper RJ45
        • Marketing Information:

          Eight ports for flexibility.

          This switch has eight 10/10/1000-Mbps RJ-45 copper ports. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables.

          Extreme applications.

          Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:

          • Security and surveillance, particularly for backhauling IP security camera data.
          • Military applications, especially in ships and other vehicles.
          • Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
          • Oil and gas fields or remote equipment monitoring and control.
          • Building automation for controlling HVAC and lighting systems.

          Maximize uptime.

          Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on-site, thus lowering costs.

          The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.

          The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP multicast IGMP snooping, and rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.

          Fast failovers.

          The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20-millisecond or less failover.

          Installation options.

          The switch features redundant power inputs and includes DIN-rail and panel-mount kits. Power supplies are sold separately.


        • Packaged Quantity: 1
        • Product Type: Ethernet Switch

          • Technical Information

        • Data Link Protocols: Link Layer Discovery Protocol (LLDP)

          • Interfaces/Ports

        • Total Number of Network Ports: 8
        • Network (RJ-45): Yes
        • Port/Expansion Slot Details: 8 x RJ-45 Gigabit Ethernet Network

          • Media & Performance

        • Media Type Supported: Twisted Pair
        • Ethernet Technology: Gigabit Ethernet
        • Network Technology: 10/100/1000Base-T
        • Maximum Data Transfer Rate: 128 MB/s

          • Network & Communication

        • Layer Supported: 2
        • Networking Standards:
          • IEEE 802.3af
          • IEEE 802.3at
          • IEEE 802.1D
          • IEEE 802.1w (RSTP)
          • IEEE 802.1s
          • IEEE 802.1x
          • IEEE 802.1p
          • IEEE 802.1Q
          • IEEE 802.1ad
          • IEEE 802.1ab

          • Management & Protocols

        • Manageable: Yes

          • Power Description

        • Input Voltage:
          • 12 V DC
          • 58 V DC

        • Power Source: DC
        • Power Consumption: 10.50 W

          • Physical Characteristics

        • Form Factor:
          • DIN Rail Mountable
          • Wall Mountable

        • Height: 6"
        • Width: 5"
        • Depth: 2.3"
        • Weight (Approximate): 2.30 lb

          • Miscellaneous

        • Package Contents:
          • LIG1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed Switch - (8) 10/100/1000-Mbps Copper RJ45
          • 2 x Wallmount Plates
          • 1 x DIN Rail Clip
          • 1 x DC Power Terminal Block
          • 6 x RJ-45 Port Dust Covers
          • 2 x SFP Port Dust Covers

        • Environmental Compliance:
          • Waste Electrical and Electronic Equipment Directive (WEEE)
          • Restriction of Hazardous Substances (RoHS)
          • China Restriction of Hazardous Substances 2 (China RoHS 2)

        • Country of Origin: Taiwan
        • TAA Compliant: Yes

          • Warranty

        • Limited Warranty: 1 Year
          •
