General Information

Manufacturer: Black Box Corporation

Manufacturer Part Number: LMC400A

Manufacturer Website Address: http://www.blackbox.com

Brand Name: Black Box

Product Line: Micro Mini

Product Model: LMC400A

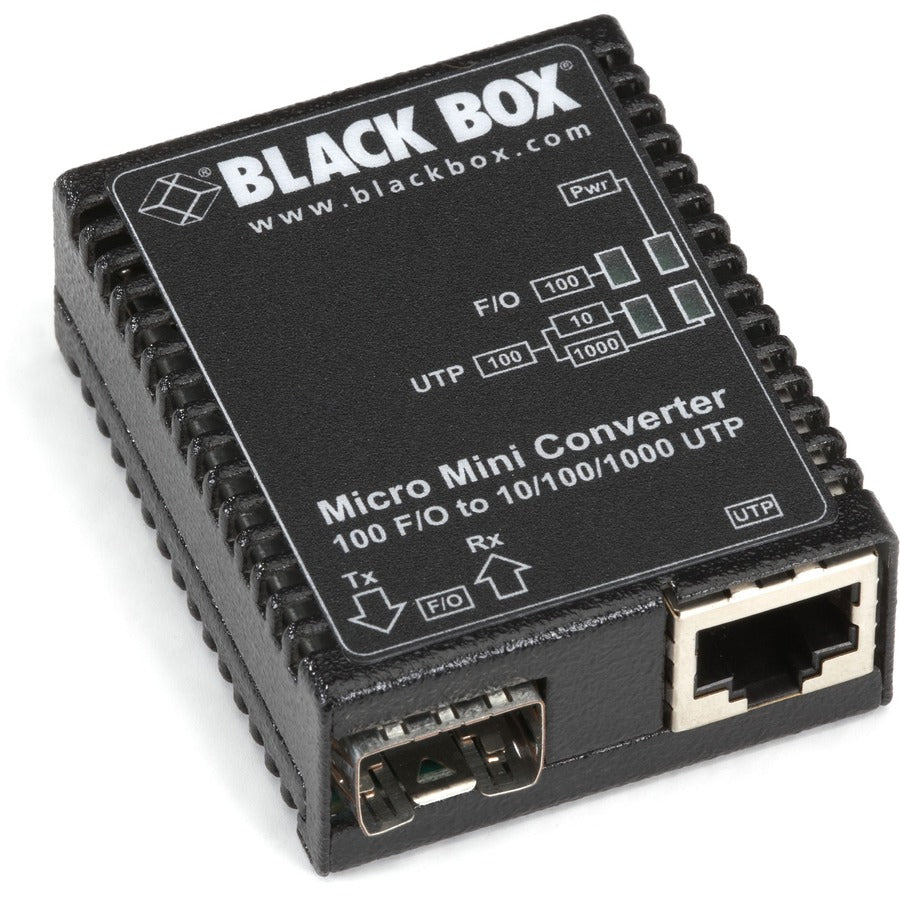

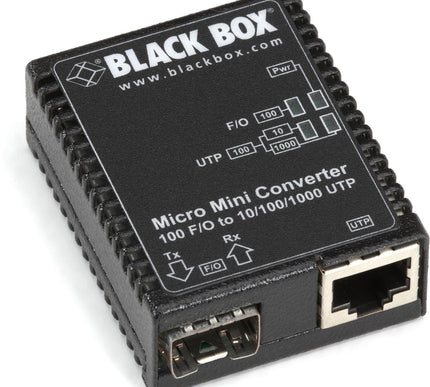

Product Name: Micro Mini LMC400A Transceiver/Media Converter

Marketing Information:

Ultra compact, weighing only 2.5 ounces.

SFP port supports 100BASE-FX using 155-Mbps SFP transceivers.

UTP port supports 10/100/1000BASE-T.

Supports Jumbo Ethernet frames up to 10,240 bytes.

LED indicators for power, UTP, and fiber status.

Bring fiber to the desktop conveniently and cost-effectively.

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter accepts SFPs for connection to a variety of Fast Ethernet fiber types. Use it with Black Box 155-Mbps SFPs (LFP401-LFP404) or any other standard 155-Mbps SFP. Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

Product Type: Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports: 1

Network (RJ-45): Yes

DVI: No

USB: No

Management Port: No

Number of Network (RJ-45) Ports: 1

Media & Performance

Media Type Supported:

• Optical Fiber
• Twisted Pair

I/O Expansions

Total Number of Expansion Slots: 1

Expansion Slot Type: SFP

Number of SFP Slots: 1

Network & Communication

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100/1000Base-TX
• 100Base-FX

Power Description

Power Source: AC Adapter

Physical Characteristics

Form Factor:

• Desktop
• Wall Mountable

Height: 0.8"

Width: 1.8"

Depth: 2.3"

Weight (Approximate): 2.50 oz

Miscellaneous

Package Contents:

• Micro Mini LMC400A Transceiver/Media Converter
• Power Adapter

Environmentally Friendly: Yes

Country of Origin: United States

TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
