Black Box Micro Mini LMC402A Transceiver/Media Converter - LMC402A

    Product form
    • Black Box Corporation

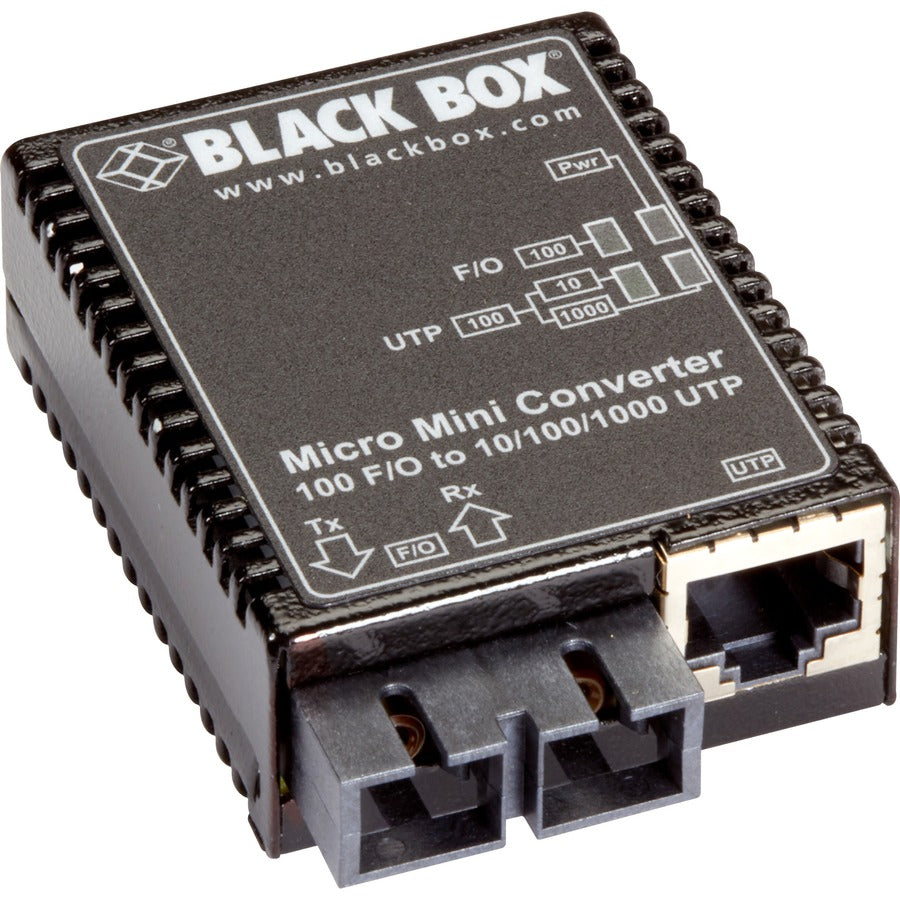

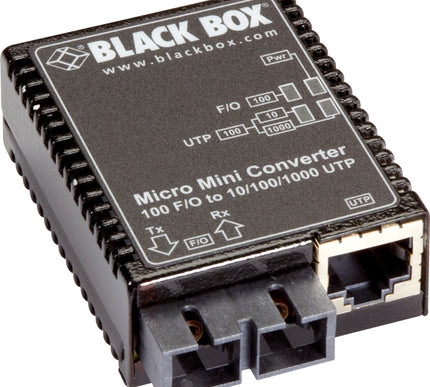

    Black Box Micro Mini LMC402A Transceiver/Media Converter - LMC402A

      General Information Manufacturer: Black Box Corporation Manufacturer Part Number: LMC402A Manufacturer Website Address: http://www.blackbox.com Brand Name: Black Box Product Line:... Read more

      9 in stock Order today, shipped 1-2 business days

      $259.39

        • Need Presales Support? Contact Sales at 877-712-2230 or sales@itosolutions.net.
        • Warranty by Manufacturer
            Have a question on this product? Fill out the form below.
          Send us a message!

          SKU: 3908786
          Barcode: 822088109532

          Size chart

          General Information

        • Manufacturer: Black Box Corporation
        • Manufacturer Part Number: LMC402A
        • Manufacturer Website Address: http://www.blackbox.com
        • Brand Name: Black Box
        • Product Line: Micro Mini
        • Product Model: LMC402A
        • Product Name: Micro Mini LMC402A Transceiver/Media Converter
        • Marketing Information:

          The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.

          Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.

          The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an SC connector for connection to multimode fiber.

          Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.


        • Product Type: Transceiver/Media Converter

          • Interfaces/Ports

        • Total Number of Ports: 2
        • Network (RJ-45): Yes
        • DVI: No
        • USB: No
        • Management Port: No
        • Number of Network (RJ-45) Ports: 1
        • Number of SC Ports: 1
        • SC Port Type: Duplex

          • Media & Performance

        • Media Type Supported:
          • Optical Fiber
          • Twisted Pair

        • Fiber Mode Supported: Multi-mode
        • Fiber Optic Cable Wavelength: 1310 nm
        • Maximum Distance Supported: 5 km

          • Network & Communication

        • Ethernet Technology:
          • Fast Ethernet
          • Gigabit Ethernet

        • Network Technology:
          • 10/100/1000Base-TX
          • 100Base-FX

          • Power Description

        • Power Source: AC Adapter

          • Physical Characteristics

        • Form Factor: Wall Mountable
        • Height: 0.8"
        • Width: 1.8"
        • Depth: 2.3"
        • Weight (Approximate): 2.50 oz

          • Miscellaneous

        • Package Contents:
          • Micro Mini LMC402A Transceiver/Media Converter
          • Power Adapter

        • Environmentally Friendly: Yes
        • Country of Origin: United States
        • TAA Compliant: Yes

          • Warranty

        • Limited Warranty: 2 Year
          •
