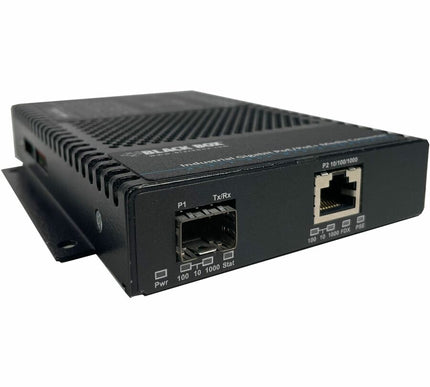

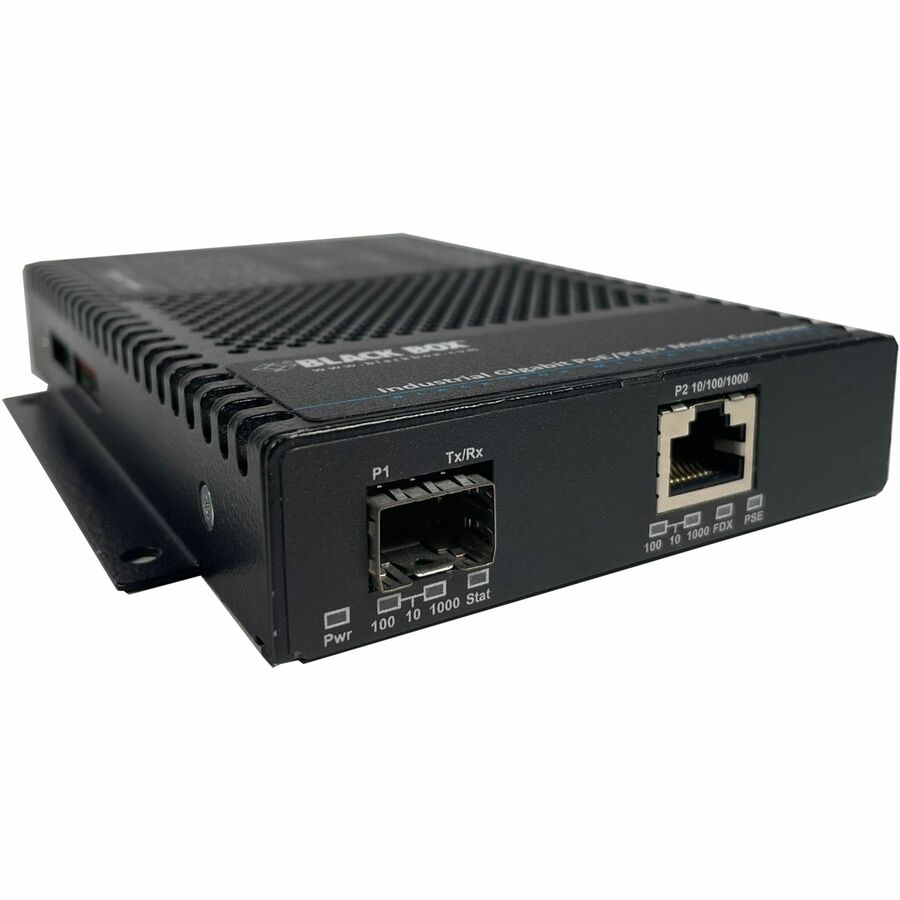

The Black Box LGC5300 Series media converters convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

The LGC5300 Series media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.

LGC5300 Series media converters are available in two power levels. LGC5300 Series models support PoE (IEEE 802.3af) and provide up to 15.4W of power per UTP port. LGC5310 series models support PoE+ (IEEE 802.3at) and provide up to 25.5W per port for more demanding PDs such as video conferencing equipment, PTZ (pan-tilt-zoom) cameras and 802.11n wireless access points.

Configurable features include link modes which can propagate link faults from fiber to copper and copper to fiber, and a PoE power reset function, in which a loss of fiber Rx link can disable the PSE power output for 2 seconds to allow the remote PD to re-initialize.

LGC5300 Series media converters support fixed-fiber connectors and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The products support multimode and singlemode fiber SFPs.

• Optical Fiber
• Twisted Pair

• Single-mode
• Multi-mode

• 50/125 µm
• 62.5/125 µm

• 10/100/1000Base-T
• 1000Base-X

• Tabletop
• DIN Rail Mountable
• Wall Mountable

• PoE+ Industrial Gigabit Ethernet Media Converter, SFP
• 1 x Cable Strain Relief Kit
• 1 x Plastic Cable Clamp
• 1 x Washers
• 1 x Lock
• 1 x Flat
• 1 x 3-Position Phoenix Connector
